[00:00:12] <Lcvette[m]> the toolchange.ng uses many ofn the Mxx.ngc subs
[00:01:12] <TurBoss> Lcvette: do you know if the relay KA5 ATC FWD
[00:01:24] <TurBoss> receives a pulse or is keept on ?
[00:01:41] <Lcvette[m]> kept on
[00:01:54] <Lcvette[m]> it runs a 3h motor
[00:02:01] <Lcvette[m]> 3ph
[00:02:15] -!- hazzy-lab has quit [Remote host closed the connection]
[00:02:23] <Lcvette[m]> the relay turns on a contactor
[00:02:32] -!- hazzy-lab has joined #hazzy
[00:02:32] -!- mode/#hazzy [+o hazzy-lab] by ChanServ
[00:02:35] <Lcvette[m]> to turn the motor in one direction
[00:03:01] <TurBoss> switch phases?
[00:03:13] <TurBoss> one of them?
[00:03:27] <TurBoss> with 2 contactors?
[00:03:37] <Lcvette[m]> the rev rekay turns on a contactor that switches phases to turn the motor in the reverse direction correct
[00:03:44] <TurBoss> ok
[00:04:42] <Lcvette[m]> the carousel counter is what signals in position and sahuts off the relay
[00:05:06] <Lcvette[m]> through the hal
[00:05:08] <TurBoss> and what manages the speed of the motor?
[00:05:10] <TurBoss> is fixed?
[00:05:22] <Lcvette[m]> fixed by 60hz
[00:05:26] <Lcvette[m]> us
[00:05:36] <Lcvette[m]> wouold be slower in your country at 50hz
[00:05:39] <Lcvette[m]> :p
[00:05:40] <TurBoss> :D
[00:07:45] <TurBoss> how many counter signals per tool ?
[00:07:57] <Lcvette[m]> 1
[00:08:00] <TurBoss> oh
[00:08:01] <TurBoss> :(
[00:08:24] <Lcvette[m]> i think
[00:08:43] <Lcvette[m]> its just a hall senbsor
[00:08:48] <TurBoss> ok
[00:09:40] <TurBoss> I don't see how to mimic the atc rpm
[00:09:50] <TurBoss> other than set it to a fixed value
[00:10:37] <Lcvette[m]> i don't think thats important
[00:10:50] <Lcvette[m]> as long as its faster than the actual carousel
[00:10:51] <Lcvette[m]> lol
[00:10:54] <TurBoss> ok
[00:11:19] <TurBoss> so ...
[00:11:24] <TurBoss> it will turn and wait for the counter and continues if KA5/6 still on
[00:11:37] <Lcvette[m]> oh...the carousel doesn't have the wobble you programmed
[00:11:45] <TurBoss> hhehee
[00:12:12] <TurBoss> I'll make it more smooth
[00:12:12] <Lcvette[m]> that would be more fitting for a lathe turret with a reversing lock mechanism
[00:12:28] <Lcvette[m]> mine is very positive
[00:14:28] <Lcvette[m]> but that will look REALLY friggin cool for a lathe turret!
[00:30:01] <TurBoss> hazzy-lab: you arround?
[00:30:43] <TurBoss> http://dpaste.com
[00:33:21] <TurBoss> ok thats fixed
[00:34:03] <TurBoss> dpaste.com/0ZWFB02

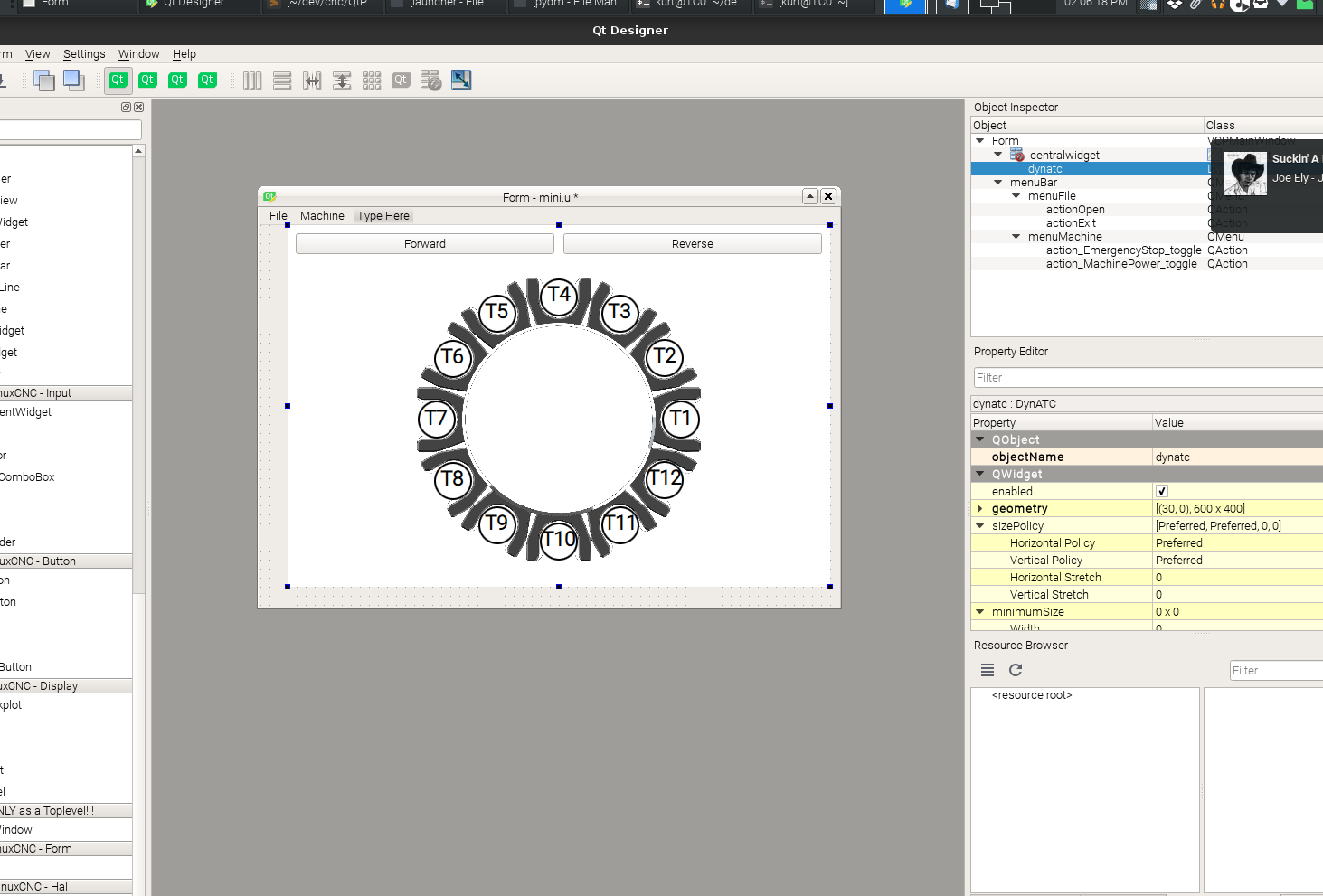

[00:35:45] <TurBoss> seg fault when launching designer
[00:37:42] <hazzy-lab> oops, looks like the atc_widget.py file can't be found
[00:37:48] <hazzy-lab> hmm
[00:38:23] <hazzy-lab> oh
[00:38:27] <hazzy-lab> sorry
[00:38:33] <TurBoss> you broke it?
[00:38:34] <hazzy-lab> looking at the wrong paste
[00:38:43] <TurBoss> its fixed
[00:38:57] <TurBoss> the new one gives segfault on designer
[00:39:11] <TurBoss> aka segment rape in spanish
[00:39:15] <hazzy-lab> LOL
[00:39:30] <hazzy-lab> Looks like it is a QML problem ...
[00:39:32] <Lcvette[m]> Spanish rape?
[00:39:34] <TurBoss> rape is a fish here
[00:39:45] <hazzy-lab> QML Connections: Cannot assign to non-existent property "onRotateFwdSig"
[00:39:46] <TurBoss> :O
[00:39:47] <TurBoss> ok
[00:39:56] <TurBoss> nono ignore that
[00:39:58] <TurBoss> its fine
[00:40:08] <TurBoss> does your designer fire?
[00:40:09] <hazzy-lab> oh :P
[00:40:11] <hazzy-lab> yes
[00:40:22] <TurBoss> ok
[00:40:32] <hazzy-lab> your on the ATC branch?
[00:40:36] <hazzy-lab> I'll test here
[00:41:05] <TurBoss> ty!!
[00:41:09] <TurBoss> just pushed
[00:41:15] <Lcvette[m]> Hurray!
[00:42:04] <hazzy-lab> seg fault here too :(
[00:42:46] <TurBoss> mew
[00:42:56] <Lcvette[m]> Book!
[00:42:59] <Lcvette[m]> Booo
[00:43:03] <Lcvette[m]> Lol
[00:47:01] <hazzy-lab> it is caused by atc.py
[00:47:23] <hazzy-lab> if I comment out the widget plugin it works
[00:48:16] <TurBoss> ok
[00:48:20] <TurBoss> found it
[00:48:25] <TurBoss> my fault
[00:48:28] <TurBoss> sorry
[00:48:51] <hazzy-lab> no, its fine!
[00:48:57] <hazzy-lab> trying to fix :D
[00:49:05] <TurBoss> the main thing
[00:49:08] <TurBoss> is the error
[00:50:10] <Lcvette[m]> I wish I could watch you guys work on the code, I bet it's awesome to witness
[00:50:47] <hazzy-lab> Lcvette[m]: hehe, we'll let you continue the think that
[00:50:58] <hazzy-lab> (it's more like a bull in a china shop)
[00:50:59] <hazzy-lab> lol
[00:51:18] <Lcvette[m]> No that's me
[00:51:29] <hazzy-lab> haha
[00:51:54] <Lcvette[m]> Work on one line for an hour and break it 50 times before figuring it out
[00:52:19] * hazzy-lab has been working on the encoding error all day :P
[00:52:27] <hazzy-lab> should take like 10s to fix
[00:52:29] <hazzy-lab> lol
[00:53:56] <hazzy-lab> file:// ReferenceError: main is not defined
[00:53:56] <Lcvette[m]> I know! 2 hours today to for our that table header font size
[00:54:10] <Lcvette[m]> Figure out*
[00:57:13] <Lcvette[m]> But I felt like a ninja when I did
[00:57:15] <Lcvette[m]> Lol
[00:58:46] <Lcvette[m]> Waaaa
[00:59:16] <hazzy-lab> hahah
[00:59:36] <hazzy-lab> it is satisfying once you get something to work !
[01:03:02] <Lcvette[m]> Indeed
[01:12:22] * hazzy-lab is off to bed
[01:12:31] <hazzy-lab> goodnight!
[01:12:55] <Lcvette[m]> Night hazzy!

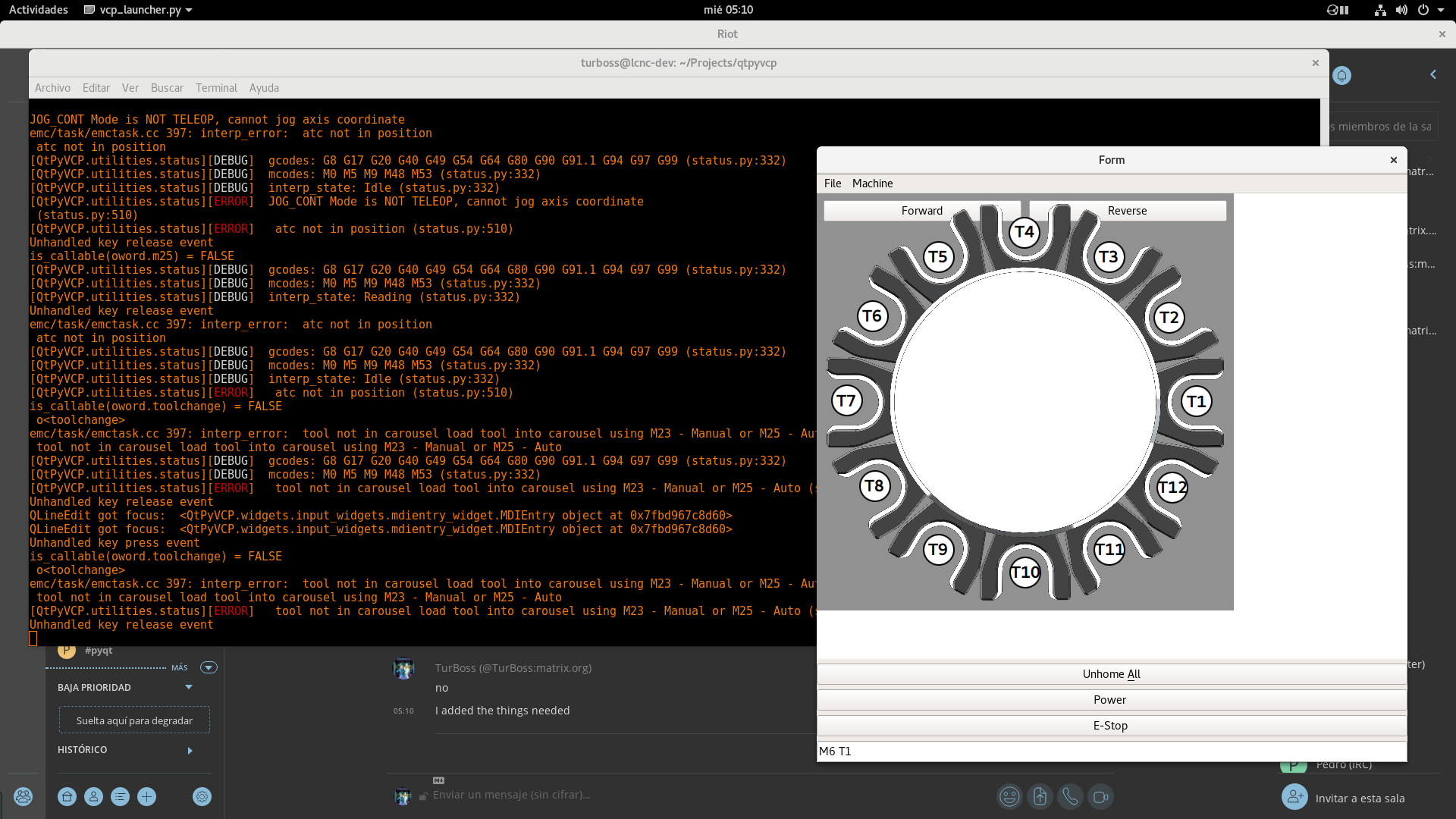

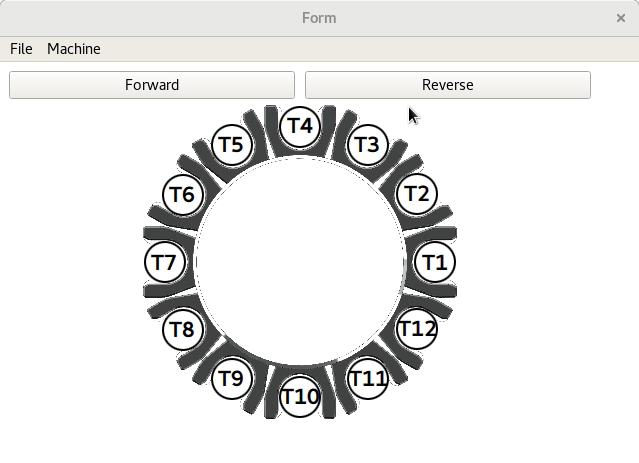

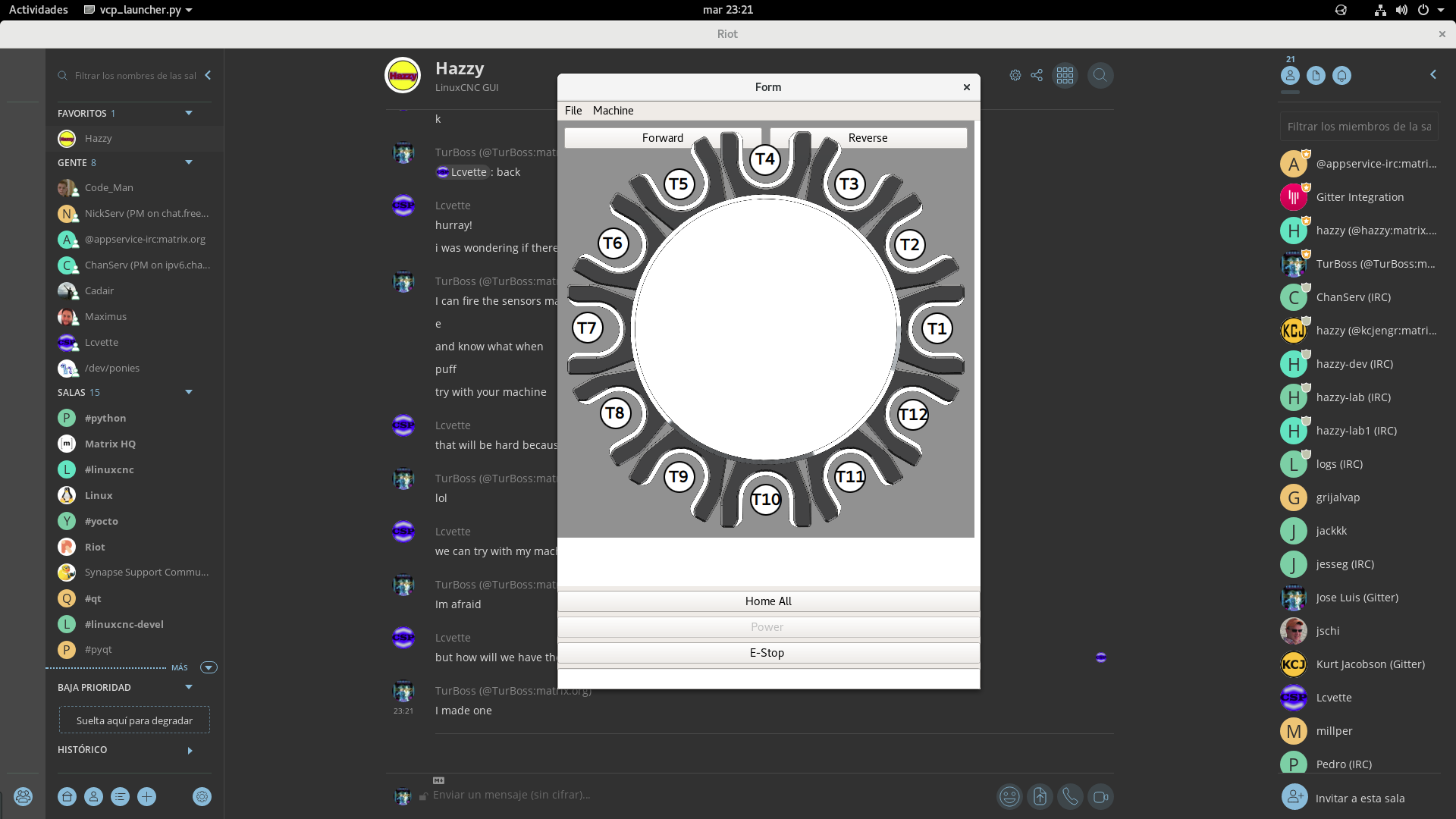

[02:34:49] * TurBoss uploaded an image: Peek 21-08-2018 08-34.gif (1134KB) < https://matrix.org >
[06:50:56] -!- chris______ has joined #hazzy
[06:51:17] -!- chris______ has quit [Client Quit]
[07:07:35] <TurBoss> good morning
[09:10:59] <TurBoss> is hazzy awake?
[09:23:00] <Lcvette[m]> morning!!!
[09:23:12] <Lcvette[m]> YouNow you did it!!!!
[09:28:35] <TurBoss> I fixed the thing again
[09:28:41] <TurBoss> very bad breakage
[09:29:22] <TurBoss> Lcvette: morning
[10:06:38] <TurBoss> Lcvette: what does the counter send? the hal sensor
[10:07:39] <TurBoss> pulses? when?
[10:33:55] <hazzy-lab> hello!
[10:35:53] <TurBoss> yep
[10:36:01] <TurBoss> hazzy-lab: I can't manage to fix the segfault
[10:36:01] <TurBoss> :(
[10:36:38] <hazzy-lab> TurBoss: I think I realized what it is when sleeping last night!
[10:36:56] <TurBoss> go take some coffe
[10:37:06] <TurBoss> :P
[10:37:41] <TurBoss> nah
[10:37:46] <hazzy-lab> The designer initializes the widget when it first loads, but then it gets deleted before it sets everything up, so it is trying to set properties on a non existent widget
[10:38:03] <hazzy-lab> and that causes the seg
[10:38:32] <TurBoss> http://dpaste.com my plugin breaks
[10:38:34] <TurBoss> ohh
[10:38:35] <TurBoss> tell me tell me
[10:38:55] <TurBoss> true!
[10:39:03] <TurBoss> bingo
[10:39:03] <hazzy-lab> So you need to put a try/catch around were you set the properties, I had to do it for the camera widget
[10:39:04] <TurBoss> well could be
[10:39:07] <TurBoss> notice line 65 of the paste
[10:39:46] <hazzy-lab> https://gitlab.com
[10:40:06] <hazzy-lab> yes!
[10:40:29] <hazzy-lab> it is trying to get the default properties, but the widget has been deleted!
[10:40:42] <hazzy-lab> I think that must be it!
[10:50:05] <TurBoss> ok I'll check
[10:50:06] <TurBoss> afk
[12:00:58] <Lcvette[m]> so its brokage
[12:01:13] <Lcvette[m]> or fexedage
[12:01:15] <Lcvette[m]> fixed
[12:01:16] <Lcvette[m]> ?
[12:02:44] <hazzy-lab> brakage
[12:02:47] <hazzy-lab> lol
[12:03:05] <Lcvette[m]> :(
[12:03:46] <Lcvette[m]> you guys were killing it too! small breakage or big breakage?
[12:16:58] <Lcvette[m]> did you have any thoughts one the radiused corners on the dividr line?
[12:26:37] <Lcvette[m]> i did it!
[12:37:44] <Lcvette[m]> well...that did not work out
[12:37:45] <Lcvette[m]> hmmm]
[12:37:57] <Lcvette[m]> looks great in designer but doesn't transfer into the gui
[12:38:06] <Lcvette[m]> comes undone for some reason

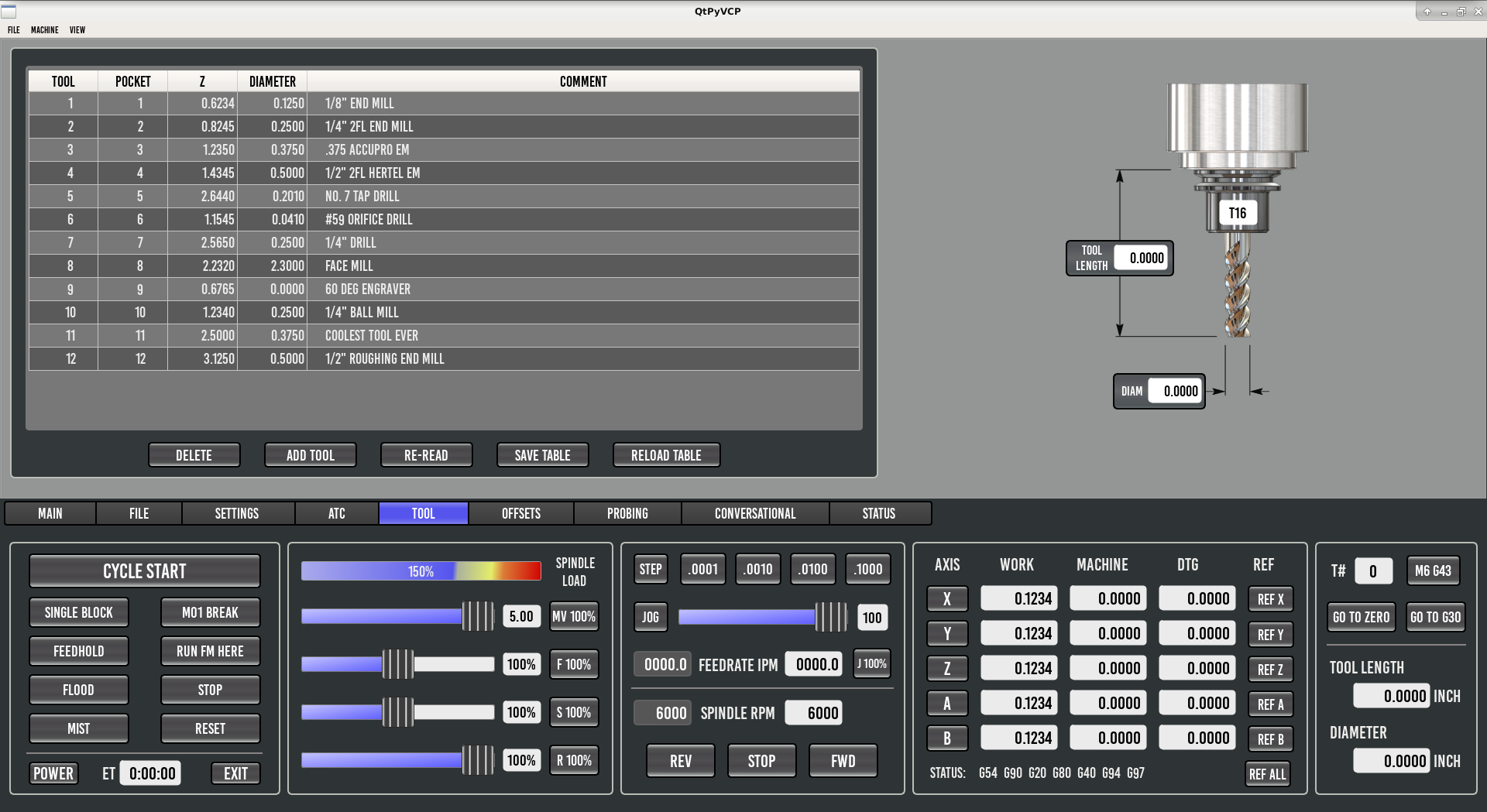

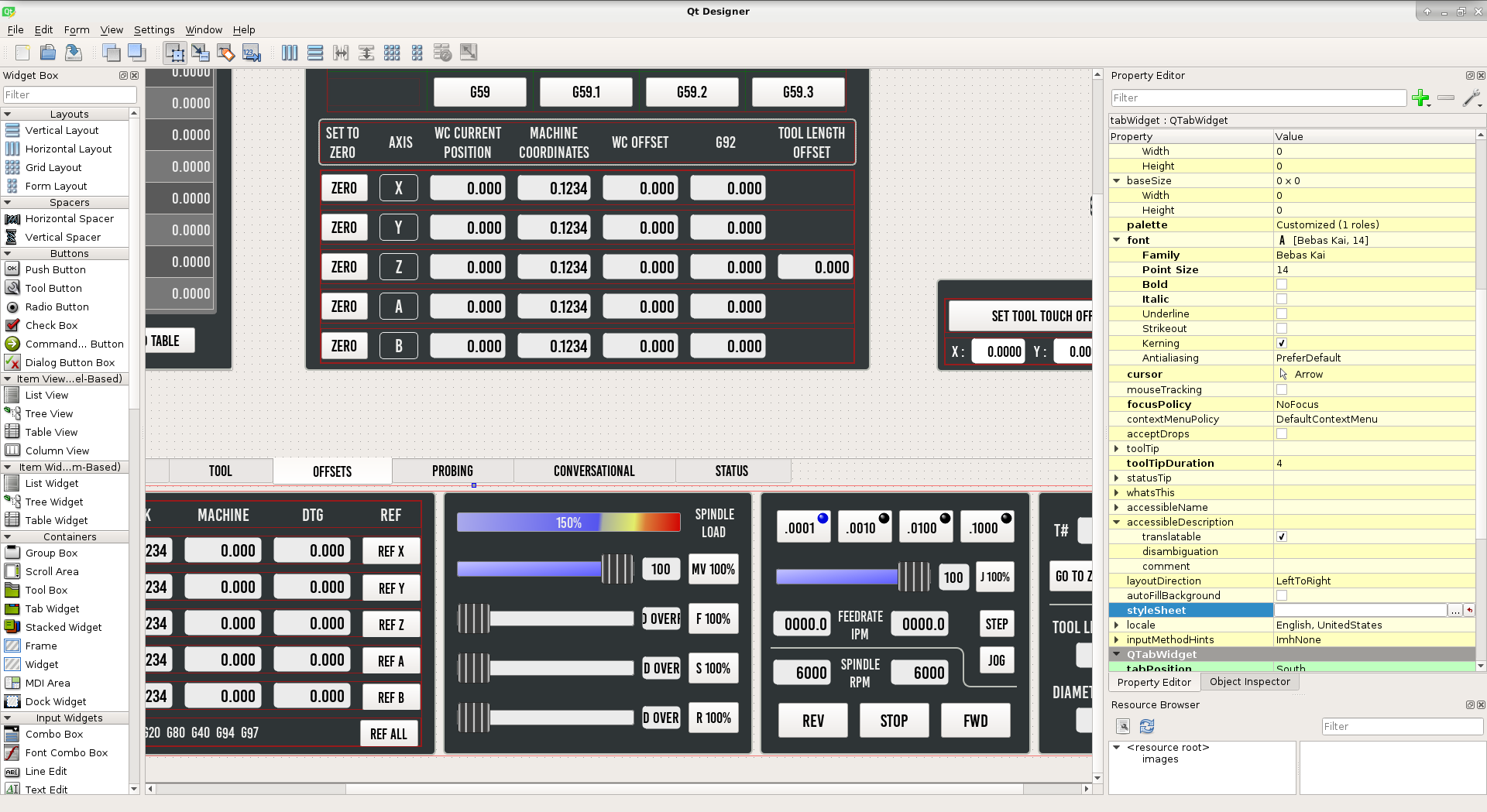

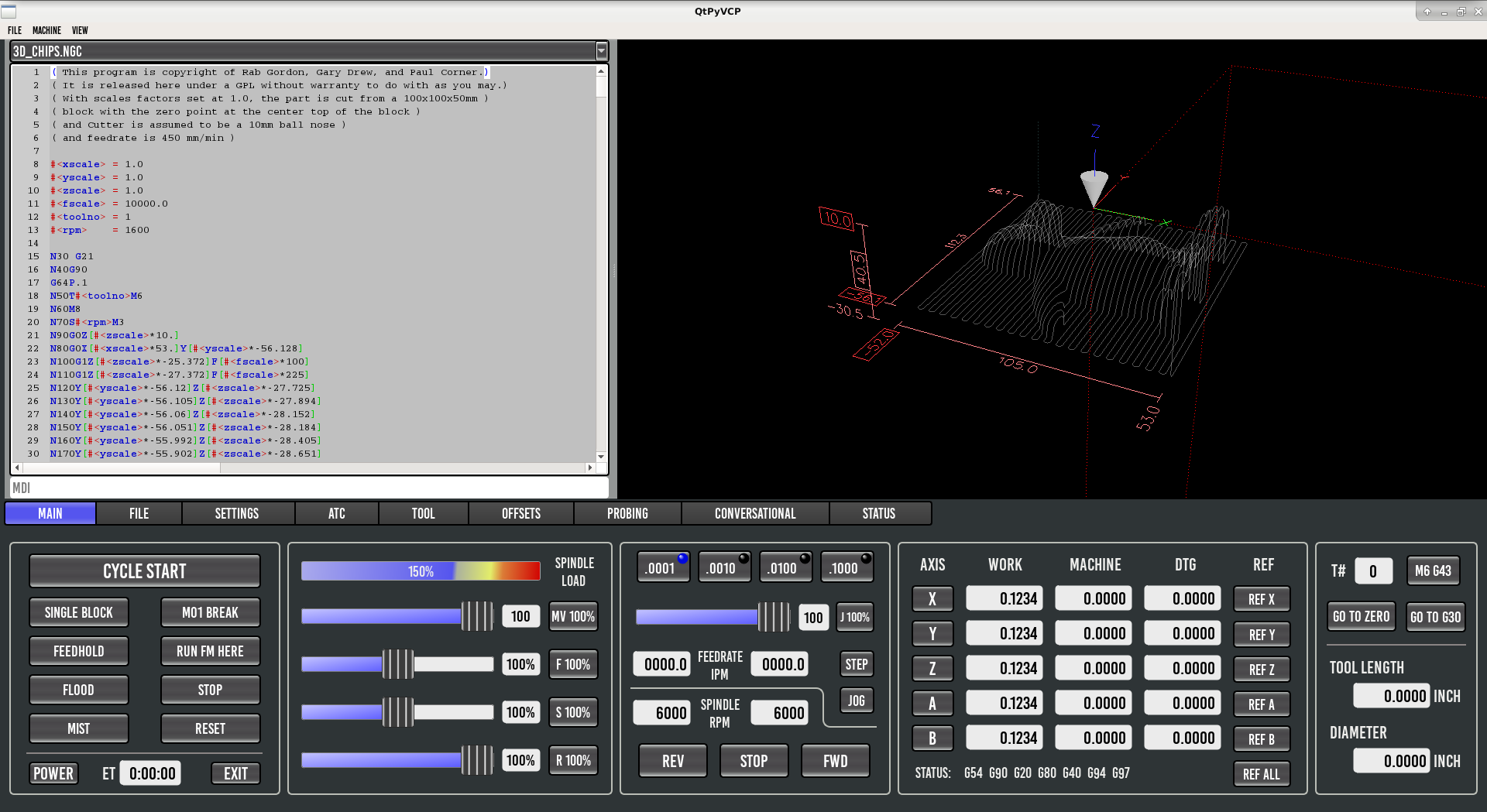

[12:39:34] * Lcvette[m] uploaded an image: image.png (23KB) < https://matrix.org >
[12:39:57] * Lcvette[m] uploaded an image: image.png (294KB) < https://matrix.org >
[12:40:10] * Lcvette[m] uploaded an image: image.png (254KB) < https://matrix.org >
[12:40:21] <Lcvette[m]> fail
[12:40:51] <Lcvette[m]> wonder if maybe i could do it with frame instead of line?
[12:41:02] <Lcvette[m]> qframe instead of qline
[12:49:32] * Lcvette[m] uploaded an image: image.png (254KB) < https://matrix.org >
[12:49:42] <Lcvette[m]> closer
[12:49:45] <Lcvette[m]> thats with QFrame
[12:50:08] <Lcvette[m]> but its putting those little curls at the ends of the border lines even though im not specifying a radius on those ends?
[12:50:22] <Lcvette[m]> maybe i need to specify radius and none?
[12:50:25] <Lcvette[m]> i'll try that
[12:57:27] <Lcvette[m]> waaaaaaaaa I am the code-fu panda waaaa

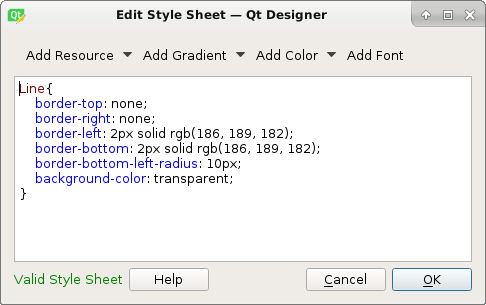

[12:57:36] * Lcvette[m] uploaded an image: image.png (253KB) < https://matrix.org >
[12:58:23] * Lcvette[m] uploaded an image: image.png (26KB) < https://matrix.org >
[12:58:37] <Lcvette[m]> my biggest code-fu hand written to date!
[12:58:37] <Lcvette[m]> lol
[12:58:50] <Lcvette[m]> its a personal achievemnt
[12:58:51] <Lcvette[m]> :)
[13:00:17] <hazzy-lab> Whoa!!
[13:00:27] <hazzy-lab> That is impressive!
[13:00:40] <hazzy-lab> I was wondering if it was possible at all
[13:00:48] <hazzy-lab> man, that looks good
[13:01:00] <Lcvette[m]> hahahaha yeah right
[13:01:13] <hazzy-lab> seriously!
[13:01:28] <Lcvette[m]> thats kiddy play compared to what you guys deal with
[13:01:29] <Lcvette[m]> lol
[13:02:12] <hazzy-lab> No, its about the same, it's just fighting till you get it :)
[13:02:28] <Lcvette[m]> hahahaha, yeah
[13:02:58] <Lcvette[m]> i could see doing some cool borders using this method to frame out groups
[13:03:47] <Lcvette[m]> so i take it as a discovery win!
[13:04:16] <Lcvette[m]> 🐼power

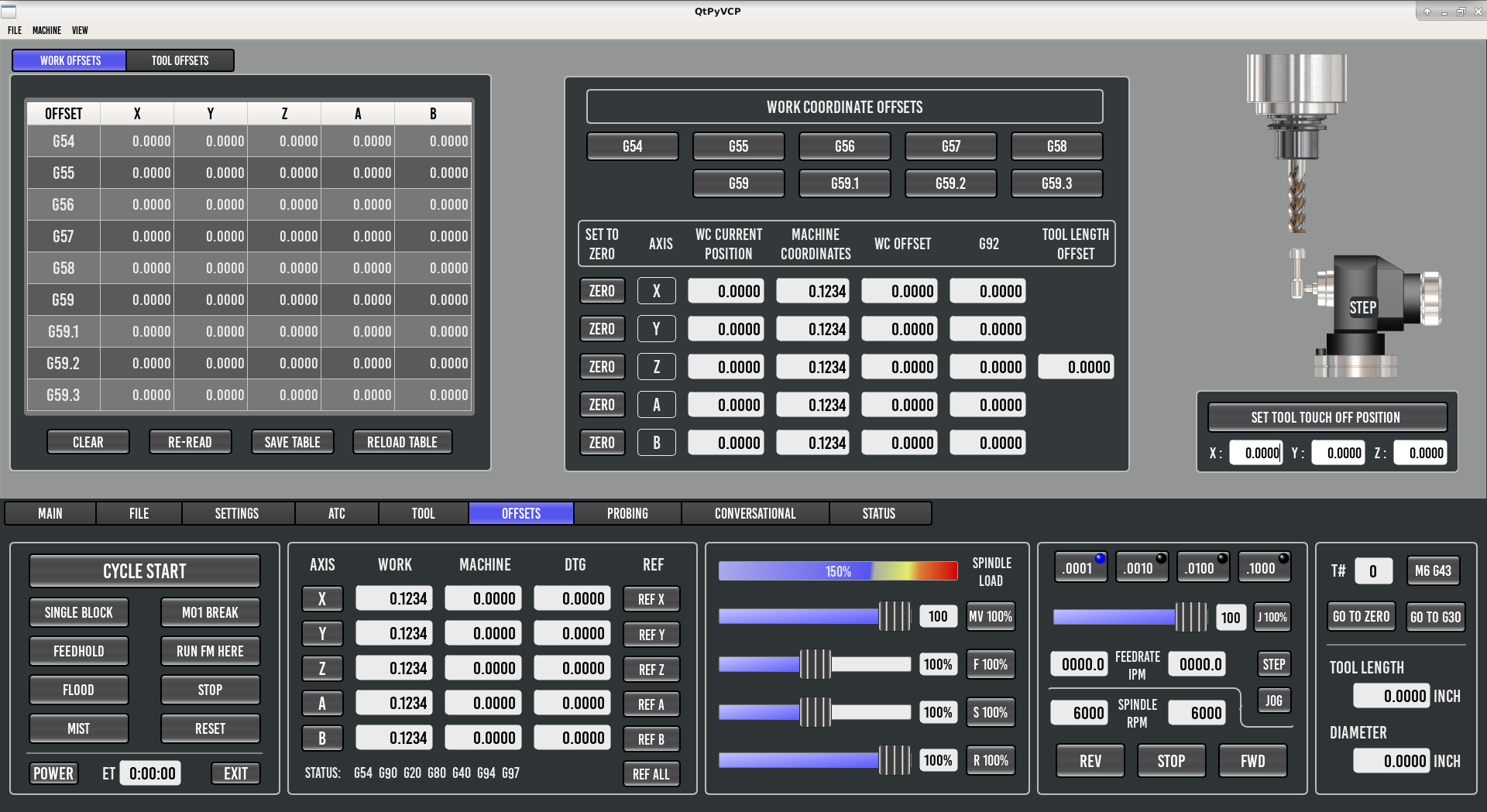

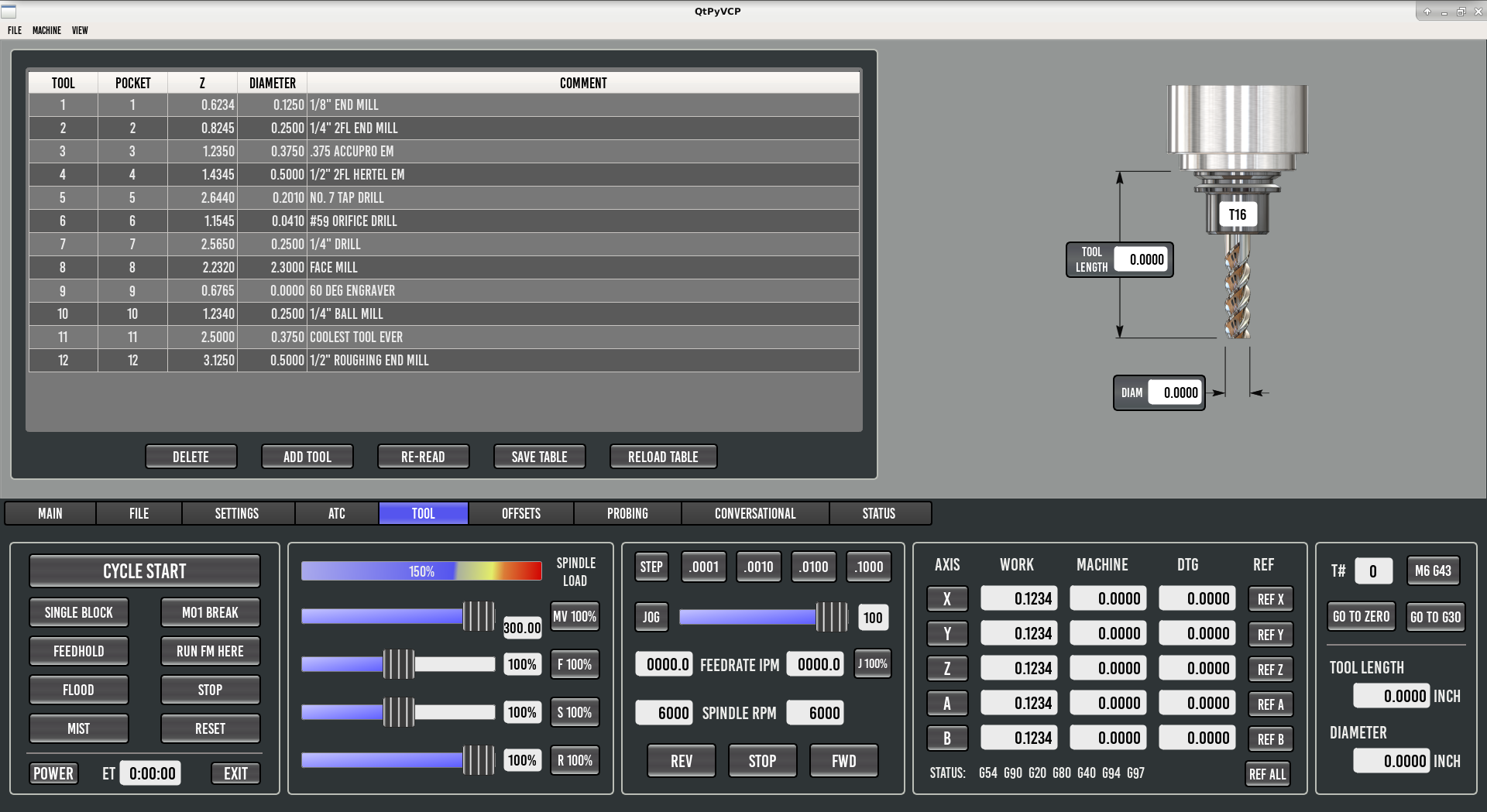

[13:18:34] * Lcvette[m] uploaded an image: image.png (253KB) < https://matrix.org >
[13:18:41] <Lcvette[m]> ?
[13:18:52] <Lcvette[m]> I kinda like this better
[13:19:58] <Lcvette[m]> i dunno
[13:20:11] <Lcvette[m]> hard to say
[13:20:34] <hazzy-lab> hmm, I think I do to
[13:21:11] <hazzy-lab> seems like a better left to right progression of inputs to displays
[13:21:26] <Lcvette[m]> I agree
[13:21:35] <Lcvette[m]> flows better
[13:21:44] <hazzy-lab> Yes, it seems to
[13:21:59] <Lcvette[m]> puts controls center mass

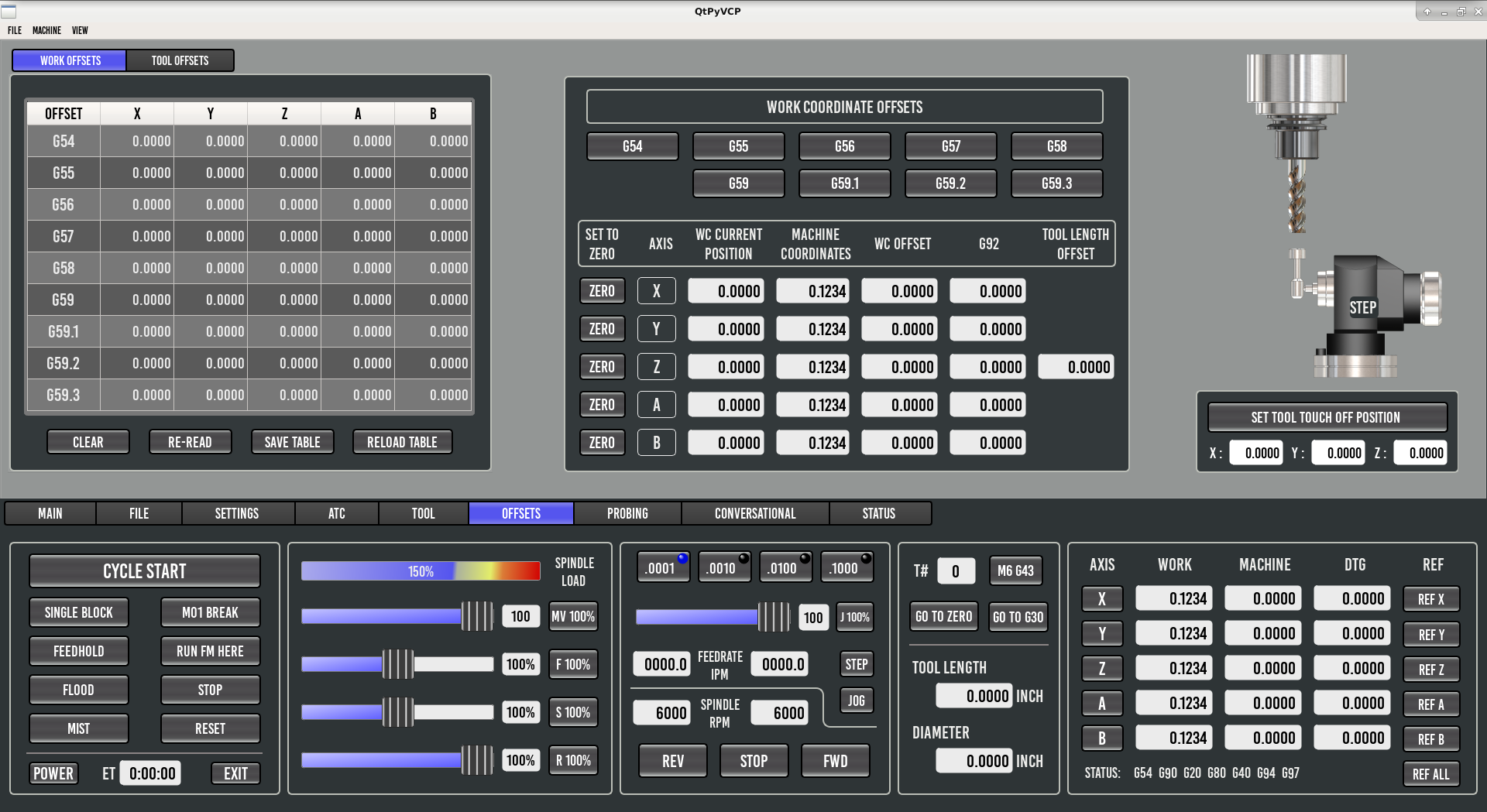

[13:25:30] * Lcvette[m] uploaded an image: image.png (227KB) < https://matrix.org >
[13:25:35] <Lcvette[m]> or masybe throw the tool box out to the far end
[13:25:55] <Lcvette[m]> that puts the dro's smack innthe center of the view screen while cutting
[13:26:08] <Lcvette[m]> or close to it
[13:29:17] <Lcvette[m]> for max velocity, that not as much an override as it is a setting is it?
[13:30:49] <Lcvette[m]> but i guess i could see it being used that way regardless, you just wouldn't have a display of what your max velocity is the way we have it setup
[13:30:55] <Lcvette[m]> that may be a problem
[13:32:32] <Lcvette[m]> what are you guys thoughts on that?
[13:32:46] <TurBoss> seading
[13:32:48] <TurBoss> reading*
[13:35:40] <TurBoss> I don't know
[13:35:46] <TurBoss> :P
[13:36:39] <Lcvette[m]> lol
[13:36:52] <TurBoss> or didn't get it
[13:36:58] <Lcvette[m]> ok
[13:37:06] <Lcvette[m]> i will explain more clearly
[13:37:23] <TurBoss> ok

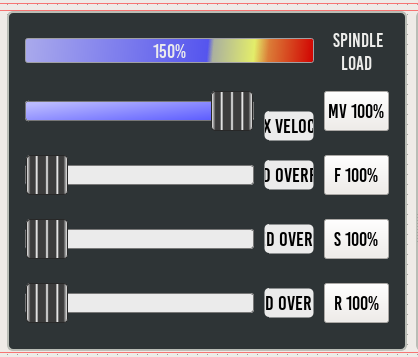

[13:38:18] <Lcvette[m]> the max velocity slider is usually shown with the 0 to (max velocity value) for the given machine config
[13:38:58] <Lcvette[m]> example: 0 ---------------------------------------------708ipm
[13:39:29] <Lcvette[m]> 0-------------------------------------------------18,000mm/m (just for you turboss)
[13:39:32] <Lcvette[m]> :)
[13:39:41] <TurBoss> thanks
[13:39:48] <TurBoss> I use m/m
[13:39:52] <Lcvette[m]> we are showing it as 0--------------------100%
[13:39:59] <TurBoss> yes
[13:40:23] <Lcvette[m]> and without and reference to the actual range
[13:40:30] <Lcvette[m]> any
[13:40:54] <TurBoss> you should know before
[13:40:56] <TurBoss> is that?
[13:41:09] <TurBoss> show it on the slider=
[13:41:09] <TurBoss> ?
[13:41:19] <Lcvette[m]> maybe
[13:41:21] <Lcvette[m]> that could be a solution
[13:41:30] <TurBoss> ar least the range
[13:41:54] <TurBoss> but the stats tab should show that values
[13:42:18] <TurBoss> yes but a car goes un km/h not 0 -100%
[13:42:26] <Lcvette[m]> true but that is an at a glance on the fly adjustment
[13:42:50] <Lcvette[m]> right
[13:42:55] <Lcvette[m]> should be less math involved
[13:43:04] <TurBoss> I think that the actual speed should be shown as overlay of the 3d plot
[13:43:18] <TurBoss> and actual position too
[13:43:18] <Lcvette[m]> whoa
[13:43:21] <Lcvette[m]> we are in 3d now
[13:43:22] <TurBoss> like axis foes
[13:43:23] <TurBoss> *does
[13:43:25] <Lcvette[m]> lol
[13:43:48] <Lcvette[m]> whats axis do?
[13:43:49] <TurBoss> or what?=
[13:43:49] <Lcvette[m]> ive never used it
[13:43:58] <TurBoss> sekk
[13:44:15] <Lcvette[m]> i only used gmoccapy which uses the range on the slider of the actual feed per unit of time range
[13:45:44] * TurBoss uploaded an image: Captura de pantalla de 2018-08-21 19-44-37.png (37KB) < https://matrix.org >
[13:46:10] <TurBoss> knowing the actual velociti is enought
[13:46:11] <TurBoss> i think
[13:46:26] <TurBoss> in my opinuion
[13:46:26] <Lcvette[m]> right, this slider is for setting the max velocity the machine can move at
[13:46:31] <Lcvette[m]> its a master override
[13:46:43] <Lcvette[m]> it manipulates the ini value
[13:46:55] <Lcvette[m]> or is a filter on top of it
[13:47:08] <TurBoss> the dolphin?
[13:47:13] <TurBoss> :P
[13:47:28] <TurBoss> duno
[13:48:22] <TurBoss> lol filter not fliper
[13:48:27] <Lcvette[m]> if i set this slider at 10mm/m the machine will not move over 10mm/m no matter what requests it gets
[13:48:59] <Lcvette[m]> feeds or rapids etc
[13:49:03] <Lcvette[m]> its a master control
[13:49:10] <TurBoss> show 0-4000m/m
[13:49:15] <TurBoss> near to the slider?
[13:49:26] <TurBoss> show the range
[13:49:52] <Lcvette[m]> it will need to be programmed to show the max velocity for the config of the specific machine
[13:49:57] <Lcvette[m]> so for my machine it would show 0-18000
[13:50:15] <Lcvette[m]> for yours it would show 0-(whatever is in your ini under max velocity) etc
[13:50:23] <TurBoss> and its something you normally know
[13:50:24] <Lcvette[m]> the max value is dictated by the ini
[13:50:40] <Lcvette[m]> yes, should be
[13:50:44] <TurBoss> we can read the ini
[13:50:55] <Lcvette[m]> but we have to assume someone may be operating the machine who does not
[13:51:37] <Lcvette[m]> in a commercial environment often the operator is not the machine configurator
[13:51:38] <TurBoss> then check the machine status table wich should show that
[13:51:45] <TurBoss> yes...
[13:52:02] <TurBoss> so the ini could be read
[13:53:19] <TurBoss> a single label
[13:53:21] <Lcvette[m]> yes the ini would be writing the max value on the slider
[13:53:22] <TurBoss> hazzy did it
[13:53:30] <TurBoss> let me check
[13:54:02] <Lcvette[m]> not sure if Hazzy has setup the Max Velocity yet, maybe because of this reason
[13:54:04] <Lcvette[m]> hazzy-lab
[13:54:06] <Lcvette[m]> you here?
[13:54:19] <Lcvette[m]> hazzy-lab: still here?
[13:55:24] <TurBoss> trying now
[13:55:25] <TurBoss> exist
[13:55:51] <TurBoss> yes is there
[13:55:56] <TurBoss> under display widgets
[13:56:12] <TurBoss> status label
[13:56:13] <TurBoss> place it somewhere
[13:56:50] <Lcvette[m]> ok
[13:57:04] <TurBoss> the in their propeties
[13:57:08] <TurBoss> then**
[13:57:11] <TurBoss> at bottom
[13:57:54] <Lcvette[m]> yes task status
[13:58:00] <Lcvette[m]> change to max velocity
[13:58:03] <TurBoss> yes!
[13:58:49] <hazzy-lab> yes, I made added a max vel label, but now I need to make max vel and jog vel sliders
[13:59:00] <TurBoss> hehehehehe
[13:59:31] <TurBoss> 😢
[13:59:36] <hazzy-lab> the reason the vel sliders are different from the OR sliders is that they are value, not percentage, so need to work a little different
[13:59:58] <TurBoss> hazzy-lab: I still having problems with the seg fault
[14:00:04] <hazzy-lab> :(
[14:00:15] <Lcvette[m]> we were just discussing that
[14:00:17] <TurBoss> seems fixed on 5.9 but debian will take forerver to upgrade
[14:00:38] <hazzy-lab> TurBoss: I messed with it for a while and can't figure out how to fix it
[14:00:51] <TurBoss> don't worry
[14:01:07] <TurBoss> I'll install the QT from wevsite and test
[14:01:07] <hazzy-lab> Ah, well at least that means it is not our fault if it is fixed in
[14:01:13] <TurBoss> i doesn't mix with system on
[14:01:20] <hazzy-lab> great, so it is a QT Problem
[14:01:35] <TurBoss> yes first
[14:01:41] <TurBoss> hurray problems!!!
[14:01:56] <hazzy-lab> Maybe we should switch to GTK?
[14:01:57] <hazzy-lab> xD
[14:02:01] <TurBoss> if can't get this to work I'll drop qml
[14:02:03] <TurBoss> lol
[14:02:35] <hazzy-lab> we can always make it work by not loading the QML in the designer context
[14:02:50] <hazzy-lab> only load in the actual app
[14:03:15] <hazzy-lab> ah, I have an idea!
[14:03:26] <TurBoss> could the designer be spoted?
[14:06:00] <hazzy-lab> hurray!!!
[14:06:03] <hazzy-lab> fixed!
[14:06:40] <TurBoss> wow how?
[14:06:52] <TurBoss> genious!
[14:06:59] <Lcvette[m]> you did it?
[14:07:02] * hazzy-m uploaded an image: Screenshot_2018-08-21_14-06-20.png (173KB) < https://matrix.org >
[14:07:02] <TurBoss> crashed?
[14:07:09] <hazzy-lab> sek, I'll push
[14:07:16] <hazzy-lab> easy
[14:07:16] <TurBoss> woah
[14:07:17] <hazzy-lab> lol
[14:07:21] <TurBoss> amazing
[14:07:23] <TurBoss> thank you!!!!
[14:07:32] <Lcvette[m]> whooo hooo
[14:07:37] <TurBoss> where I should send a pack of bears
[14:07:48] <TurBoss> lol
[14:07:49] <TurBoss> beers
[14:07:55] <TurBoss> hhohohoho
[14:08:18] <TurBoss> can't stop laught
[14:08:22] <TurBoss> heheheh
[14:08:52] <Lcvette[m]> 🐼power code-fu
[14:09:08] <hazzy-lab> hahahahaha
[14:09:13] <hazzy-lab> pushed
[14:09:49] -RSSBot[turbosssp:#hazzy- Hazzy activity posted a new article: Kurt Jacobson pushed to project branch DynAtc at Hazzy / QtPyVCP ( https://gitlab.com )
[14:09:51] <TurBoss> genious!!!
[14:10:11] <hazzy-lab> I need to do that for the other widgets!
[14:10:20] <TurBoss> I saw
[14:10:22] <hazzy-lab> it will make the designer load fast!
[14:10:27] <hazzy-lab> faster
[14:10:32] * Lcvette[m] uploaded an image: image.png (22KB) < https://matrix.org >
[14:11:08] <Lcvette[m]> hey while your juices are flowing
[14:11:10] <hazzy-lab> it is in the wrong grid row most likly
[14:11:17] <Lcvette[m]> why is that label droopy
[14:11:29] <Lcvette[m]> no
[14:11:29] <TurBoss> fantastic
[14:11:34] <hazzy-lab> try dragging it up a bit and dropping again
[14:11:43] <Lcvette[m]> i put any othewr box in there it goes correct
[14:11:48] <Lcvette[m]> tried like 50 times
[14:11:50] <hazzy-lab> hmm
[14:12:03] <hazzy-lab> maybe alignment is wrong?
[14:13:26] <Lcvette[m]> pushed
[14:13:55] <Lcvette[m]> alignment i saw i tried changing made no effect
[14:14:05] -!- Erikcnc[m] has joined #hazzy
[14:14:31] <Lcvette[m]> so the new fix will fix the designer?
[14:14:48] <hazzy-lab> it might
[14:14:57] <hazzy-lab> getting ready to test
[14:15:04] <Lcvette[m]> faster load without lcnc being opened?
[14:15:08] <Lcvette[m]> sweet
[14:15:13] <hazzy-lab> it should prevent that hang on load
[14:15:23] <Erikcnc[m]> Hay all
[14:15:44] <hazzy-lab> Erikcnc[m]: hello!
[14:15:58] <hazzy-lab> how is it going?
[14:16:14] <Lcvette[m]> lcvette ques up U2 It's a Beautiful Day for celebratory boogie down
[14:16:17] <hazzy-lab> Saw you got your machine running, looks great!
[14:16:20] <TurBoss> hello
[14:16:33] <Lcvette[m]> hey Erik!
[14:19:24] <TurBoss> Lcvette: what pulses does the ATC COUNT send?
[14:19:27] <TurBoss> or what they mean
[14:21:18] <Erikcnc[m]> @hazzy-lab. Yeah doeing all right
[14:21:40] <Lcvette[m]> pulses?
[14:21:50] <Lcvette[m]> clarify
[14:22:37] <TurBoss> the atc counter sensor
[14:22:39] <Lcvette[m]> you mean for the pockets?
[14:22:45] <TurBoss> what a signal means
[14:22:56] <TurBoss> tool reached?
[14:22:58] <TurBoss> yes
[14:22:58] <Lcvette[m]> pocket location
[14:23:12] <Lcvette[m]> correct
[14:23:29] <TurBoss> ok
[14:23:30] <Lcvette[m]> one sensor 12 picjup points
[14:23:35] <Lcvette[m]> pickup
[14:23:40] <Lcvette[m]> seperate home sensor
[14:23:55] <TurBoss> it has home too?
[14:24:04] <TurBoss> not wired in the schematics
[14:24:04] <Lcvette[m]> i think
[14:24:05] <TurBoss> :P
[14:25:08] <TurBoss> so it is high on pocket location and low while moving to?
[14:26:01] <Lcvette[m]> one sek im going to the amchine to see if i can help better
[14:26:11] <TurBoss> thanks
[14:26:41] <Lcvette[m]> home sensor is wired
[14:26:47] <Lcvette[m]> and in schematic
[14:26:49] <TurBoss> hmmmm
[14:27:13] * Lcvette[m] posted a file: XK7130 Main Schematic ATC 7i76 7i77.pdf (74KB) < https://matrix.org >
[14:27:23] <Lcvette[m]> use this one it is less confusing
[14:27:40] <Lcvette[m]> i turned off everything except the ATC inputs and outputs
[14:28:01] <TurBoss> i have it too
[14:28:06] <TurBoss> ok np
[14:29:19] <Lcvette[m]> counter sensor is PNP-NO
[14:29:41] <Lcvette[m]> so it sends out a +24v pulse when it sees a pockets
[14:30:40] <TurBoss> I'm thinking
[14:31:09] <TurBoss> ok
[14:31:10] <TurBoss> doesn't matter much
[14:31:13] <TurBoss> for now is ok
[14:31:43] <TurBoss> ty
[14:32:17] <TurBoss> Lcvette: so if sees a pocket it stops?
[14:34:37] <Lcvette[m]> it stops on the dcorrect pocket called for
[14:34:47] <Lcvette[m]> everything depends on the sub routine
[14:34:56] <TurBoss> ok
[14:35:11] <Lcvette[m]> there are some subroutines that look for just the next pocket
[14:35:46] <Lcvette[m]> some that count pockets in fwd direction
[14:35:49] <Lcvette[m]> and rev direction
[14:36:21] <Lcvette[m]> and the complex one that calculates which direction is shortest to the correct pockets
[14:36:39] <Lcvette[m]> but it still uses the other subroutines to move the carousel to that pocket
[14:36:42] <Lcvette[m]> make sense?
[14:36:58] <TurBoss> yes
[14:36:59] <TurBoss> !
[14:37:01] <Lcvette[m]> is that what byou are trying to figure out?
[14:37:12] <TurBoss> yes
[14:37:30] -!- rene-dev has quit [*.net *.split]
[14:37:59] -!- rene-dev has joined #hazzy
[14:38:46] <Lcvette[m]> all iof the Mxx.ngc are part of the toolchange.ngc master stragtegy
[14:41:10] <TurBoss> I'm taking a look at the hal files
[14:41:38] <Erikcnc[m]> So i got a question about spindle configuration. In pncconfig of lcnc, you say if you run on 10v or 5v. Allso to run m4 the voltage is reverst. Like to have that the same as m3 because i switch direction by a relay
[14:57:57] <Lcvette[m]> i think all the remap is in the INI
[14:57:57] <TurBoss> ping
[15:00:19] <hazzy-lab> Erikcnc[m]: You will probably have to edit the HAL file by hand
[15:00:42] -!- Erikcnc2 has joined #hazzy
[15:00:47] <hazzy-lab> What signal do you have the relay connected too?
[15:02:35] -!- Erikcnc[m] has quit [Ping timeout: 240 seconds]
[15:04:41] <Erikcnc2> Me?
[15:09:14] <hazzy-lab> yes :)
[15:09:25] <hazzy-lab> I should have pinged you
[15:11:29] <Erikcnc2> Yeah sorry. Bad network in the shop from home
[15:12:07] <Erikcnc2> But the relay will be conectect to the dir pin
[15:12:59] -!- Erikcnc2 has quit [Remote host closed the connection]
[15:13:23] -!- Erikcnc[m] has joined #hazzy
[15:13:29] * TurBoss sent a long message: < https://matrix.org >
[15:13:31] <TurBoss> take a look at this lines from XK7130 .hal
[15:19:27] -!- TurBoss_backup has joined #hazzy
[15:19:39] <TurBoss_backup> hell
[15:19:46] <TurBoss_backup> the matrix whent down
[15:21:52] <Lcvette[m]> sorry, i was offline for a while something happened on the network
[15:22:30] <TurBoss> the matrix wen't dowsn
[15:22:31] <TurBoss> down'
[15:22:52] <Erikcnc[m]> Oeps
[15:24:54] <TurBoss_backup> down again
[15:25:14] <TurBoss> seems to start working
[15:25:29] <Lcvette[m]> ah ok, i just cleaned my cache and reloaded and rebooted all my wifi and computers
[15:25:29] <Lcvette[m]> lol
[15:25:41] <Lcvette[m]> ok im looking at it
[15:25:52] <Lcvette[m]> whats your question?
[15:27:45] <TurBoss> back?
[15:28:01] <TurBoss> ok seems fine now
[15:28:13] <Lcvette[m]> yes
[15:29:09] <Lcvette[m]> im back but seems slow
[15:31:03] <TurBoss> https://status.matrix.org
[15:32:03] <Lcvette[m]> seems to be working fine now
[15:32:07] <TurBoss> net atc-fwd atc_widget.fwd <= hm2_7i92.0.7i76.0.3.output-05 <= motion.digital-out-03
[15:32:08] <TurBoss> net atc-rev atc_widget.rev <= hm2_7i92.0.7i76.0.3.output-06 <= motion.digital-out-04
[15:34:00] -!- hazzy-m has quit [*.net *.split]
[15:34:54] <Erikcnc[m]> I might think i will come back a nother day. Haha
[15:35:42] -!- hazzy-m has joined #hazzy
[15:36:44] -!- hazzy-lab has quit [Ping timeout: 276 seconds]
[15:38:52] -!- Erikcnc[m] has quit [Quit: AndroIRC - Android IRC Client ( http://www.androirc.com )]
[15:57:18] -!- hazzy-lab has joined #hazzy
[15:57:18] -!- mode/#hazzy [+o hazzy-lab] by ChanServ
[16:01:00] -!- TurBoss_backup has parted #hazzy
[16:03:00] <TurBoss> :O
[16:03:04] <TurBoss> slow down
[16:03:04] <Lcvette[m]> I need to run to the post office to drop off some orders, I will be back in 20, you need me before I go?
[16:03:06] <TurBoss> oki
[16:03:07] <TurBoss> nono
[16:03:08] <TurBoss> latter
[16:03:11] <Lcvette[m]> Ok, back in 20
[16:03:12] <Lcvette[m]> Maybe shorter
[16:03:22] <TurBoss> don't worry
[16:03:23] <TurBoss> drive safe
[16:19:28] -!- jesseg has quit [*.net *.split]
[16:25:12] -!- jesseg has joined #hazzy
[16:29:15] <Lcvette[m]> ok, im back
[16:31:46] <Lcvette[m]> turboss: you here still?
[16:34:14] <TurBoss> yes
[16:34:54] <Lcvette[m]> what do i do in the kraken?
[16:35:11] <TurBoss> for now not much
[16:35:26] <TurBoss> I'm still setting the remap
[16:35:30] <Lcvette[m]> ok
[16:36:26] * TurBoss sent a long message: < https://matrix.org >
[16:37:15] <Lcvette[m]> uhoh, whats thatmean?
[16:37:19] <Lcvette[m]> that mean
[16:37:36] <TurBoss> errr
[16:37:39] <TurBoss> oorr
[16:40:51] <TurBoss> tool not in carousel load tool into carousel using M23 - Manual or M25 - Auto
[16:41:10] <TurBoss> how to load m23 works?
[16:41:18] <Lcvette[m]> ah!
[16:41:29] <Lcvette[m]> you have no tools in thew carousel yet
[16:41:30] <Lcvette[m]> you must load them
[16:41:37] <TurBoss> ok
[16:41:42] <Lcvette[m]> gimme a sec to remember
[16:41:51] <Lcvette[m]> its been a while
[16:41:56] <Lcvette[m]> lol
[16:42:59] <Lcvette[m]> i think you do m61 q1
[16:43:00] <TurBoss> ok
[16:43:01] <TurBoss> got it
[16:43:11] <TurBoss> M25 P1 T1
[16:43:20] <Lcvette[m]> ok
[16:43:40] <TurBoss> atc not in position
[16:43:41] <TurBoss> says
[16:44:53] <Lcvette[m]> it must be homed
[16:45:03] <Lcvette[m]> referenced
[16:45:03] <Lcvette[m]> just a like an axis
[16:45:29] <TurBoss> how to?
[16:45:38] <Lcvette[m]> i think m13
[16:45:41] <Lcvette[m]> or m11
[16:47:56] <TurBoss> failed to home carousel lol
[16:48:10] <Lcvette[m]> m13 is home
[16:48:10] <TurBoss> sek
[16:48:50] <TurBoss> it waits for a signal
[16:48:58] <Lcvette[m]> of course
[16:48:58] <Lcvette[m]> from the home sensor
[16:49:53] <Lcvette[m]> it is going to be looking for many signal inputs to progress to the next step throughout the tool change process
[16:51:26] <Lcvette[m]> carousel home sensor, z home sensor, pocket counter sensor, tool clamped sensor tool unclamped sensor, atc slide extended sensor atc slide retracted sensor etc
[16:51:36] <TurBoss> found it
[16:51:56] <Lcvette[m]> each next move depends on those senbsor inputs being received
[16:53:54] <Lcvette[m]> its like ladder logic but in remap code
[16:57:25] * TurBoss uploaded an image: image.png (468KB) < https://matrix.org >
[16:57:57] <Lcvette[m]> lol
[16:59:11] <Lcvette[m]> whats wrong?
[16:59:16] <TurBoss> so much signals to fire manually
[17:00:44] <Lcvette[m]> it still needs to know where it is in space..lol
[17:01:20] <TurBoss> I home it
[17:01:25] <TurBoss> ok
[17:01:45] <Lcvette[m]> thats the very first step
[17:02:20] <TurBoss> homed
[17:03:05] <Lcvette[m]> next it is going to probably error out for the atc slide sensor not returning a signal
[17:04:54] <TurBoss> it homed fine since i sent the signal
[17:05:01] <Lcvette[m]> yes but that is only one step
[17:05:16] <Lcvette[m]> of many
[17:05:46] <TurBoss> next what
[17:06:02] <TurBoss> I'll pass I'll force the signal
[17:06:08] <Lcvette[m]> you will need a way to signal all of the sensor inputs
[17:06:09] <TurBoss> will test latter
[17:06:13] <TurBoss> halcmd setp motion.digital-in-03 1
[17:06:13] <TurBoss> doing this
[17:06:49] <Lcvette[m]> i dunno
[17:06:58] <TurBoss> well it works
[17:07:13] <Lcvette[m]> im not familiar with the digital signals
[17:07:33] <TurBoss> not by m6 t3 but thats somethin
[17:07:37] -!- hazzy-lab1 has joined #hazzy
[17:07:37] -!- mode/#hazzy [+o hazzy-lab1] by ChanServ
[17:07:54] -!- hazzy-lab has quit [Ping timeout: 265 seconds]
[17:07:54] hazzy-lab1 is now known as hazzy-lab
[17:07:58] <Lcvette[m]> you will probably want to mimic the actual sensor input signals
[17:08:23] <Lcvette[m]> on the 7i76 pins
[17:08:24] <Lcvette[m]> inputs
[17:08:24] <TurBoss> ok next to home
[17:08:51] <TurBoss> sek AFk
[17:08:53] <Lcvette[m]> k
[17:08:54] <TurBoss> 5 min
[17:17:00] <TurBoss> Lcvette: back
[17:17:10] <Lcvette[m]> hurray!
[17:18:20] <Lcvette[m]> i was wondering if there was a way to make a virtual machine with the sensors
[17:19:15] <TurBoss> I can fire the sensors manually but in tim
[17:19:16] <TurBoss> e
[17:19:49] <TurBoss> and know what when
[17:20:13] <TurBoss> puff
[17:20:18] <Lcvette[m]> that will be hard because there are timers involved
[17:20:18] <TurBoss> try with your machine
[17:20:24] <TurBoss> lol
[17:20:39] <Lcvette[m]> we can try with my machine with no tool in the spindle
[17:21:00] <TurBoss> Im afraid
[17:21:00] <Lcvette[m]> but how will we have the interface?
[17:21:10] <TurBoss> I made one
[17:21:44] * TurBoss uploaded an image: Captura de pantalla de 2018-08-21 23-21-13.png (339KB) < https://matrix.org >
[17:21:45] <Lcvette[m]> you affraid?
[17:21:52] <TurBoss> but the config...
[17:21:52] <TurBoss> nah
[17:21:55] <Lcvette[m]> what are you affraid of?
[17:21:55] <Lcvette[m]> what could happen?
[17:22:03] <TurBoss> brak something
[17:22:04] <TurBoss> break
[17:23:03] <Lcvette[m]> lol
[17:23:04] <TurBoss> maybe I can wait for the leader
[17:23:04] <Lcvette[m]> yeah that is a possibility
[17:23:17] <Lcvette[m]> ok
[17:23:21] <TurBoss> ok
[17:23:21] <Lcvette[m]> probably a smart idea
[17:23:36] <TurBoss> but I think is ok
[17:23:43] <Lcvette[m]> i'd rather not break a $2900 ATC
[17:24:09] <TurBoss> hazzy could know how to fire the signals in time
[17:24:35] <Lcvette[m]> where is hazzy?
[17:24:41] <TurBoss> for the sim
[17:24:41] <Lcvette[m]> he dissapeared
[17:24:49] <TurBoss> maybe the irc bridge is fkd
[17:24:52] <TurBoss> ohhh
[17:24:53] <Lcvette[m]> hmmm
[17:24:54] <TurBoss> sai beeped
[17:24:55] <TurBoss> only once
[17:25:15] <Lcvette[m]> sai?
[17:25:19] <TurBoss> ups
[17:25:45] <Lcvette[m]> hazzy-lab you here?
[17:25:51] * TurBoss uploaded an image: 1534886721995.jpg (315KB) < https://matrix.org >
[17:25:53] <Lcvette[m]> hazzy-lab: you here?
[17:26:06] -!- TurBoss_backup has joined #hazzy
[17:26:06] <Lcvette[m]> ooooh whats that?
[17:26:18] <TurBoss_backup> my server
[17:26:31] <TurBoss> irc is fine
[17:26:52] <TurBoss> 24cores 48gb ram
[17:27:53] <Lcvette[m]> nice!
[17:27:59] <Lcvette[m]> fast
[17:28:03] <Lcvette[m]> is that what we are on?
[17:28:15] * TurBoss uploaded an image: 1534886869008.jpg (77KB) < https://matrix.org >
[17:28:35] * TurBoss uploaded an image: 1534886888093.jpg (86KB) < https://matrix.org >
[17:28:44] <Lcvette[m]> you are making us a private matrix?
[17:28:45] <TurBoss> no
[17:28:55] <TurBoss> but exist
[17:29:09] <TurBoss> #hazzy:jauriarts.org
[17:29:17] <TurBoss> faile
[17:29:39] <TurBoss> is where i host my fun stuff
[17:29:57] <TurBoss> some game servers and fun things at least for me
[17:29:58] <TurBoss> lol
[17:30:10] <Lcvette[m]> hahahahaha
[17:30:16] <Lcvette[m]> zelda?
[17:30:24] <TurBoss> nah
[17:30:27] <TurBoss> factorio
[17:30:33] <TurBoss> minecraft
[17:30:34] <TurBoss> diablo 2
[17:30:39] <Lcvette[m]> mario brothers
[17:30:40] <TurBoss> some websites
[17:30:50] <TurBoss> you played zelda on nes?
[17:31:12] <Lcvette[m]> long ago a friend had one
[17:31:14] <Lcvette[m]> we played
[17:31:16] <TurBoss> cool
[17:31:29] <Lcvette[m]> i played computer games back in the day
[17:31:30] <Lcvette[m]> mist
[17:31:46] <TurBoss> :)
[17:31:46] <Lcvette[m]> spy vs spy
[17:31:46] <TurBoss> doom
[17:31:58] <Lcvette[m]> beach head
[17:32:05] <Lcvette[m]> way way back
[17:32:10] <Lcvette[m]> commodore 64
[17:32:14] * TurBoss uploaded an image: image.png (35KB) < https://matrix.org >
[17:32:17] <Lcvette[m]> 64k
[17:32:31] <TurBoss> my favourite
[17:34:46] * Lcvette[m] uploaded an image: Will-Playing-Elite-for-Blog-Retro-Gaming-749x421 (1).jpg (49KB) < https://matrix.org >
[17:34:56] <Lcvette[m]> old school gaming computer
[17:35:00] <TurBoss> wowowowowowowowo
[17:35:00] <Lcvette[m]> commodore 64k
[17:35:26] <Lcvette[m]> 5-1/4 floppy disk
[17:36:22] * Lcvette[m] uploaded an image: BeachHead.jpg (165KB) < https://matrix.org >
[17:36:30] <Lcvette[m]> 1983
[17:36:39] <TurBoss> don't copy that flopy
[17:36:40] <TurBoss> lol
[17:36:49] <Lcvette[m]> lol
[17:37:18] <TurBoss> https://www.youtube.com
[17:40:28] <Lcvette[m]> hahahhaha that was hilarious
[17:40:33] <Lcvette[m]> i never saw that
[17:40:39] <TurBoss> hahahahah
[17:40:44] <TurBoss> its fun
[17:43:12] <TurBoss> I'm still thinking that the atc thing could be rewrite in hal comp
[17:43:16] <TurBoss> but if works
[17:43:22] <TurBoss> ... :P
[17:43:24] <TurBoss> don't touch it
[17:45:30] <Lcvette[m]> whats rewrite
[17:46:15] <TurBoss> do it again in other fuckery
[17:46:27] <TurBoss> but no
[17:46:46] <TurBoss> how old is that remap sub?
[17:48:34] <TurBoss> 3, 4 years
[17:48:35] <TurBoss> ?
[17:48:41] -!- TurBoss_backup has parted #hazzy
[17:57:12] -!- hazzy-lab has quit [Remote host closed the connection]
[17:57:55] -!- hazzy-lab has joined #hazzy
[17:57:55] -!- mode/#hazzy [+o hazzy-lab] by ChanServ
[18:01:22] <Lcvette[m]> not sure
[18:01:23] <Lcvette[m]> i found it from a buddy
[18:01:30] <Lcvette[m]> its on the forum
[18:02:00] <Lcvette[m]> why?
[18:02:20] <Lcvette[m]> he has been using it for a year without an issue now
[18:02:28] <Lcvette[m]> but he has to remember a bunhc of funky codes
[18:03:23] <TurBoss> just curious
[18:04:26] <Lcvette[m]> think it needs an update?
[18:04:29] <TurBoss> non
[18:04:30] <TurBoss> no
[18:04:37] <TurBoss> its fine
[18:04:43] <Lcvette[m]> could also try and build it around hal ladder i guess
[18:04:46] <Lcvette[m]> but i don't know that at all
[18:04:47] <Lcvette[m]> lol
[18:04:48] <TurBoss> is ok
[18:12:28] <Lcvette[m]> i dunno
[18:12:33] <Lcvette[m]> hey how do we pad the column in the tool table for header?
[18:12:38] <Lcvette[m]> i worked on that problem but couldn't solve it
[18:12:39] <TurBoss> what?
[18:12:41] <TurBoss> pad?
[18:13:03] * Lcvette[m] uploaded an image: image.png (228KB) < https://matrix.org >
[18:13:05] <Lcvette[m]> i would like to pad the comments text about 15px from the line to give some seperation
[18:13:07] <TurBoss> oh ok
[18:13:07] <Lcvette[m]> sweet
[18:13:08] <TurBoss> widget side
[18:13:09] <TurBoss> let me take a look
[18:25:50] * TurBoss sent a long message: < https://matrix.org >
[18:26:02] <TurBoss> border: 0px required to make it work
[18:26:11] <TurBoss> add it to the table css
[18:26:16] <Lcvette[m]> thats it?
[18:26:22] <TurBoss> ye
[18:27:14] <TurBoss> it applies to all the cells..
[18:27:17] <TurBoss> checking
[18:28:15] <Lcvette[m]> oh i see that
[18:28:20] <Lcvette[m]> how do we specify for just comment
[18:28:27] <Lcvette[m]> item 5?
[18:30:14] <TurBoss> not sure how
[18:30:18] <TurBoss> i'm investigating
[18:30:24] <Lcvette[m]> ok me too
[18:30:30] <Lcvette[m]> this is fun
[18:30:31] <Lcvette[m]> :)
[18:48:02] <Lcvette[m]> https://stackoverflow.com
[18:48:07] <Lcvette[m]> this make sense?
[18:50:12] <TurBoss> thats for css (webpages)
[18:50:15] <TurBoss> but similar
[18:52:44] <Lcvette[m]> i'm dumb
[18:52:45] <Lcvette[m]> lol
[18:55:25] <Lcvette[m]> https://stackoverflow.com
[19:16:24] <TurBoss> asking on #qt
[19:16:26] <TurBoss> lol
[19:18:09] <Lcvette[m]> i don't know what im looking for
[19:18:11] <Lcvette[m]> lol
[19:52:33] <Lcvette[m]> OMG this is infuriating
[19:52:36] <Lcvette[m]> i can't find anything that says what to do
[19:53:48] <TurBoss> I found nothin
[19:53:50] <Lcvette[m]> anyone on #qt have an idea?
[19:53:53] <Lcvette[m]> no
[19:53:58] <TurBoss> silent
[19:54:09] <Lcvette[m]> lol\
[19:55:49] <TurBoss> got it
[19:55:53] <TurBoss> but will take a long
[19:56:08] <Lcvette[m]> found it?
[19:56:24] <Lcvette[m]> it doesn't look too bad with all of them padded
[19:56:33] <Lcvette[m]> if its a nightmare to make work i say screw it
[19:56:40] <TurBoss> qt model roles
[19:57:02] <Lcvette[m]> i read about those but had no idea how to apply
[19:58:41] <TurBoss> no worries I'm on it
[20:17:10] <hazzy-lab> Hurray!!!
[20:17:28] * hazzy-lab is making progress on the new launcher
[20:17:36] <TurBoss> fantastic!
[20:17:37] <Lcvette[m]> there he is
[20:17:46] <Lcvette[m]> Hurray!
[20:17:54] <Lcvette[m]> everybody just dropped in
[20:18:00] <Lcvette[m]> I see Jeff's icon lurking
[20:18:14] <hazzy-lab> great, almost a full house :)
[20:19:03] <jschi[m]> Indeed. Maxed out on work and home fronts
[20:19:56] * Lcvette[m] uploaded an image: image.png (228KB) < https://matrix.org >
[20:20:03] <jschi[m]> One kid out the door to school and one on Thursday. 2 weeks until new house is finished (and I get to start moving into my new shop) and overdrive at work.
[20:20:03] <Lcvette[m]> lol
[20:20:22] <Lcvette[m]> sounds like fun!!!
[20:20:26] <Lcvette[m]> i know that feeling
[20:20:37] <Lcvette[m]> that was me 4 years ago
[20:20:42] <Lcvette[m]> minus the kids
[20:20:54] <Lcvette[m]> but i was building my own house
[20:21:11] <Lcvette[m]> literally tool belt hammer and nails
[20:21:38] <Lcvette[m]> with a start up business in its infancy
[20:22:18] <Lcvette[m]> a hard move out date of the shop I was in and a harder move in date
[20:22:25] <jschi[m]> Right. Saw your YouTube vids on the shop. Mine is tight b/c we basically live downtown. Big limitation is ceiling height. 8ft. So CNC vmc options are few.
[20:22:44] <jschi[m]> That sounds more fulfilling than this where I’m just signing checks :-)
[20:23:01] <Lcvette[m]> not really.. i was still signing checks
[20:23:02] <Lcvette[m]> lol
[20:23:25] <Lcvette[m]> just saved several zero's
[20:23:26] <Lcvette[m]> lol
[20:23:40] <jschi[m]> Lol.
[20:24:38] <Lcvette[m]> downtown area, what size shop in a city type place?
[20:25:18] <jschi[m]> Just under 400 sqft
[20:25:36] <Lcvette[m]> no cars?
[20:25:41] <Lcvette[m]> just shop space?
[20:25:46] <Lcvette[m]> or shared?
[20:25:47] <jschi[m]> Yes
[20:25:58] <jschi[m]> No cars. Dedicated well lit
[20:26:07] <Lcvette[m]> nice thats a big space!
[20:26:17] <jschi[m]> 15 x 25
[20:26:24] <Lcvette[m]> can do alot with that
[20:26:38] <Lcvette[m]> especially if you lay it out
[20:26:59] <jschi[m]> Yep. You should see my fusion models for the shop
[20:27:09] <hazzy-lab> jschi[m]: A brother brother speedio s700 it less that 8ft IIRC :D
[20:27:10] <Lcvette[m]> hahaha
[20:27:11] <jschi[m]> Been moving virtual tools around for 6 months
[20:27:11] <Lcvette[m]> i bet
[20:27:12] <hazzy-lab> (speedio is my dream machine)
[20:27:39] <Lcvette[m]> Hazzy at full head lift?
[20:27:43] <jschi[m]> Nice. Will investigate. Syil x7 is as well
[20:28:00] <jschi[m]> I believe some of the spedio are that low.
[20:28:17] <hazzy-lab> Lcvette[m]: I believe so, but I think they are about 80k :(
[20:28:57] <jschi[m]> I want to hard mill 62 hrc knife blades as a must have. In addition to all my puttering.
[20:28:57] <Lcvette[m]> my machine is short
[20:29:43] <Lcvette[m]> it cleared my 8' garage door without removing anything
[20:29:50] <Lcvette[m]> but that was head midway down
[20:30:03] <jschi[m]> Yeah, I woke up in a dream last night having opened up the ceiling in the shop to gain 10” in the joists for z clearance :-)
[20:30:18] <Lcvette[m]> probably about 8.6' full lift
[20:30:32] <jschi[m]> Older sharp 2412 would do it.
[20:30:45] <Lcvette[m]> yeah
[20:30:49] <Lcvette[m]> nice machines
[20:30:53] <jschi[m]> Hass’s start at 105”
[20:31:11] <jschi[m]> So haven’t moved in yet and have some regrets
[20:31:26] <jschi[m]> But compromises.
[20:31:38] <jschi[m]> Love the downtown scene so trade offs
[20:32:07] <Lcvette[m]> yeah
[20:32:20] <hazzy-lab> shoot, the speedio's are 98.3", I thought they were less then 8", guess I remember that they would fit in my shop
[20:32:30] <Lcvette[m]> we wanted to get away from the traffic so moved a little bit out into the country and love it
[20:32:32] <hazzy-lab> 8', lol
[20:32:41] <jschi[m]> Damn. Not that I had 70k
[20:33:22] <Lcvette[m]> yeah but you could put a small riser blockout between some joists for that tiny about and not even lose your insulation\
[20:34:17] <Lcvette[m]> know the joist span?
[20:34:19] <jschi[m]> I’m waiting to see more returns on the syil x7. Notwithstanding the relative lack of installs/service in the us it looks like a lot of machine for 24k
[20:34:25] <jschi[m]> 16”
[20:34:47] <Lcvette[m]> probably plenty for a head cover
[20:34:55] <jschi[m]> Yeah
[20:35:23] <Lcvette[m]> is the X7 lonear ways?
[20:35:26] <Lcvette[m]> linear
[20:35:35] <jschi[m]> A TM1 or mini mill would cover my travel reqs
[20:35:42] <jschi[m]> Yes hiwin
[20:35:50] <Lcvette[m]> sweet
[20:36:11] <Lcvette[m]> how about the haas DT?
[20:36:12] <jschi[m]> The adtech controller option is with servos and 220 single phase
[20:36:29] <jschi[m]> Starts at 60k IIRC
[20:36:34] <Lcvette[m]> ah
[20:36:35] <jschi[m]> The dt does
[20:36:43] <Lcvette[m]> stay away from the adtech
[20:36:51] <jschi[m]> Yeah?
[20:36:53] <Lcvette[m]> stay away from the chinese controllers in general
[20:37:00] <Lcvette[m]> yeah
[20:37:16] <Lcvette[m]> stick with Linuxcnc over them
[20:37:19] <hazzy-lab> the syil machine seem VERY nice ...
[20:37:21] <Lcvette[m]> especially if you will be doing 3d machining
[20:37:32] <Lcvette[m]> they are not geared for that
[20:37:54] <jschi[m]> They have an option for the Siemens 808d but drives up to 380v 3phase.
[20:37:58] <Lcvette[m]> they will be fine for 2.5D stuff
[20:38:06] <jschi[m]> Ah
[20:38:14] <jschi[m]> Will have to research that more
[20:38:50] <Lcvette[m]> once you start trying to move 3 axis siumultaneously on the chinese controllers they slow way down
[20:38:58] <Lcvette[m]> and get a bit clunky
[20:39:56] <Lcvette[m]> if you will be doing knife blades my guess is 3d machining is in your future and that would be a rude awakening
[20:40:16] <Lcvette[m]> do you subscribe to Aaron? DCTTeacher?
[20:40:25] <jschi[m]> Yes.
[20:40:46] <jschi[m]> I’m looking forward to his reviews
[20:41:04] <Lcvette[m]> watch his vids on the controller he has he actually will tell you the exact same thing in his review of it
[20:41:17] <Lcvette[m]> i told him ahead of time about it but he didn't believe me
[20:41:24] <jschi[m]> Lol
[20:41:32] <Lcvette[m]> i learned about it all dring my research when i was preparing to buy my machine
[20:42:02] <Lcvette[m]> i had the same options you mentioned
[20:42:06] <jschi[m]> Yeah, still admiring your cojones for ordering that.
[20:42:26] <jschi[m]> And your patience in getting it going
[20:42:28] <Lcvette[m]> KND, GSK, ADTech, 808D etc.. and i called people who had them and got the skinny
[20:43:29] <jschi[m]> Yeah, I’m perfectly happy in general with lcnc in particular with the Mesa boards
[20:43:36] <Lcvette[m]> Syill can set you up with a LCNC setup
[20:43:49] <jschi[m]> That could be an option
[20:44:03] <Lcvette[m]> they actually offer that presetup
[20:44:11] <jschi[m]> Are you running servos on your machine
[20:44:18] <Lcvette[m]> i spoke with one of their reps at length regarding a lathe at one poiint
[20:44:25] <Lcvette[m]> oh yeah
[20:44:45] <Lcvette[m]> I'd never run steppers on a machine this size
[20:44:46] <Lcvette[m]> lol
[20:44:51] <jschi[m]> Figured that
[20:45:00] <Lcvette[m]> big servos too
[20:45:02] <Lcvette[m]> lol
[20:45:04] <jschi[m]> Nice
[20:45:10] <jschi[m]> What are you making?
[20:45:14] <Lcvette[m]> 1.8kw x and y
[20:45:20] <jschi[m]> Wow
[20:45:31] <Lcvette[m]> 2.8kwz
[20:45:42] <jschi[m]> Damn
[20:45:48] <Lcvette[m]> 220v 3ph
[20:46:02] <jschi[m]> Saw your RPC
[20:46:12] <Lcvette[m]> yeah
[20:46:24] <Lcvette[m]> wish i had the money to put in a digital phase converter
[20:46:25] <jschi[m]> What kind of parts/products you making
[20:46:35] <Lcvette[m]> automotive performance
[20:46:52] <jschi[m]> Nice
[20:46:55] <Lcvette[m]> BMW
[20:47:27] <jschi[m]> Cool. Shoot
[20:47:28] <jschi[m]> Me a link if you have a webpage or store
[20:47:43] <jschi[m]> Won’t fit my ford truck but interested
[20:47:43] <Lcvette[m]> www.boostconcepts.net
[20:49:36] <Lcvette[m]> i have some new products i am ready to release but need to finish this gui and gett he machine up and running to start making the parts
[20:49:43] <Lcvette[m]> they are too big for my little G0704
[20:49:54] <jschi[m]> Nice stuff.
[20:50:06] <jschi[m]> All coming off your g0704
[20:50:23] * Lcvette[m] uploaded an image: IMG_20160822_124612571.jpg (3482KB) < https://matrix.org >
[20:50:44] <jschi[m]> I will be ttime Thur/fri to finish wiring up the increment stuff.
[20:51:04] <jschi[m]> That’s sweet!
[20:51:09] <Lcvette[m]> this part is too long for the grizzly
[20:51:26] <TurBoss> n8!
[20:51:26] <Lcvette[m]> and too critical to do two setups on that machine
[20:51:31] <TurBoss> i leave this half done
[20:51:31] <Lcvette[m]> you out turboss?
[20:51:46] <jschi[m]> Peace TurBoss
[20:51:50] <Lcvette[m]> night turboss!
[20:51:50] <TurBoss> yes....
[20:51:54] <TurBoss> n8
[20:52:26] * Lcvette[m] uploaded an image: IMG_20160822_124445142.jpg (4358KB) < https://matrix.org >
[20:52:42] <hazzy-lab> gn8 TurBoss
[20:52:47] <Lcvette[m]> its 21" long
[20:53:38] <Lcvette[m]> the new machine has 28" in X
[20:53:39] <TurBoss> hazzy-lab (IRC): if you bored take a look at the latest branch of ppc :p
[20:53:47] <Lcvette[m]> :)
[20:55:00] <Lcvette[m]> ok, wife time
[20:55:07] <Lcvette[m]> back in a bit
[21:09:07] <hazzy-lab> TurBoss: I will!'
[21:42:34] <Lcvette[m]> Hazzy-lab: you on?
[21:53:22] * TurBoss is backl
[21:53:36] <TurBoss> was hungry and mede me spagetti
[21:53:41] <TurBoss> now i'm fat
[22:00:35] <Lcvette[m]> Lol
[22:49:48] <Lcvette[m]> Where did hazzy-lab go?
[22:52:47] <TurBoss> duno
[22:56:17] <Lcvette[m]> We need to ask him about the timer input signal maker right?
[22:56:33] <Lcvette[m]> I thought you were going to bed?
[22:56:40] <Lcvette[m]> Hey a second wind?
[22:56:46] <Lcvette[m]> Get*
[22:57:24] <TurBoss> yes
[22:58:00] <TurBoss> at least on how to simulate the aTC
[22:58:05] <Lcvette[m]> I merged with your latest and I got a bazillion error messages..lol had to u nfo merge
[22:58:18] * hazzy-lab was eating spaghetti too!
[22:58:22] <Lcvette[m]> :p
[22:58:31] <TurBoss> great!!
[22:58:41] <Lcvette[m]> You guys are making lcvette hungry
[22:58:47] <Lcvette[m]> And he's on a diet
[22:58:54] <hazzy-lab> haha
[22:59:01] <hazzy-lab> sorry! :D
[22:59:05] <TurBoss> hazzy-lab: I managed to show the table
[22:59:21] <TurBoss> but as only if I pass raw text
[22:59:24] <Lcvette[m]> He's going to go count out 15 almonds and grumble about it the whole time
[22:59:39] <Lcvette[m]> Lol
[22:59:40] <TurBoss> if I pass QItem nothing shows
[23:00:37] <Lcvette[m]> Hazzy-lab, turboss and I need to help
[23:00:46] <Lcvette[m]> Your
[23:00:58] <TurBoss> halp!
[23:01:00] <TurBoss> :P
[23:01:03] <hazzy-lab> Lcvette[m]: Imagine spaghetti with plenty of italian sausage in the sauce, lots of parmesan cheese and peach pie for dessert. Does that help?
[23:01:23] * hazzy-lab was detracted
[23:01:26] <hazzy-lab> sorry
[23:01:37] <hazzy-lab> ok, focus, tool changer
[23:01:43] <TurBoss> we are tring to simulate the atc pulses but I'm not fast eenough
[23:02:08] <hazzy-lab> Are you using halcmd?
[23:02:12] <Lcvette[m]> so mean... :(
[23:02:22] <TurBoss> yes
[23:03:18] <TurBoss> DynATC branch has the remap thing
[23:03:26] * Lcvette[m] uploaded an image: IMG_20180821_230300373.jpg (33KB) < https://matrix.org >
[23:03:27] <hazzy-lab> TurBoss: So maybe you could use a bash or maybe python script, and send the commands with that
[23:03:32] <hazzy-lab> checking
[23:03:44] <hazzy-lab> Lcvette[m]: LOL
[23:03:51] <hazzy-lab> I feel for you ..
[23:03:59] <Lcvette[m]> and I'm starving
[23:04:00] <TurBoss> ahm ahm
[23:04:41] <TurBoss> hazzy-lab: its like invoking the necronomicon
[23:04:54] <hazzy-lab> lol
[23:05:22] <TurBoss> Lcvette: should tell us the timming
[23:05:29] <TurBoss> and the steps
[23:05:39] <TurBoss> a script can work
[23:05:56] <Lcvette[m]> it's in the remap
[23:06:01] <Lcvette[m]> the timing
[23:06:12] <TurBoss> oh
[23:06:13] <TurBoss> :P
[23:06:15] <Lcvette[m]> for error
[23:06:30] <Lcvette[m]> marked with a Q
[23:06:34] <Lcvette[m]> I think
[23:06:38] <TurBoss> hmm
[23:06:42] <TurBoss> ok
[23:07:30] <TurBoss> hazzy-lab: mini.ini has the basic
[23:07:46] <TurBoss> estop power home and a mdi
[23:07:48] <Lcvette[m]> the steps are in remap bit I can pull them out
[23:08:04] <hazzy-lab> ok, I have mini running
[23:08:53] <Lcvette[m]> home puts pocket 1 at the tool change position
[23:10:03] <hazzy-lab> remaps don't seems to be loading
[23:10:12] <hazzy-lab> do I have to do anything special?
[23:10:39] <TurBoss> no
[23:10:43] <TurBoss> I added the things needed
[23:11:00] * TurBoss uploaded an image: Captura de pantalla de 2018-08-22 05-10-53.png (341KB) < https://matrix.org >
[23:11:19] <hazzy-lab> hmm
[23:11:34] <hazzy-lab> emc/task/emctaskmain.cc 3006: can't initialize interpreter
[23:11:54] <TurBoss> hmmmmmmm
[23:13:34] <TurBoss> hazzy-lab: are you on my fork?
[23:14:11] <hazzy-lab> yes, the DynAtc fork
[23:14:27] <Lcvette[m]> is there a way i could do a tool change on my machine and video the hal pins working?
[23:14:42] <Lcvette[m]> or record it?
[23:14:45] <TurBoss> no need
[23:14:50] <Lcvette[m]> ok
[23:14:51] <TurBoss> thanks
[23:14:59] <hazzy-lab> yes, you could use HAL show, but I think we can get it
[23:15:23] <TurBoss> hazzy-lab: you stil unable to run mini?
[23:15:44] <hazzy-lab> yes, trying different things, but still won't run
[23:16:01] <hazzy-lab> well, it runs, but is the GUI and LCNC hang
[23:16:08] <TurBoss> I run it from qtpyvcp
[23:16:25] <TurBoss> linuxcnc sim/mini.ini
[23:16:30] <hazzy-lab> kurt@TC0:~/dev/cnc/QtPyVCP$ linuxcnc sim/mini.ini
[23:16:34] <hazzy-lab> yes, same here
[23:16:47] <hazzy-lab> hmm
[23:16:50] <TurBoss> hmm
[23:17:07] <hazzy-lab> im gonna recompile LCNC
[23:17:34] <TurBoss> I don't use rip
[23:17:42] <TurBoss> buildbot one
[23:18:02] * hazzy-lab runs make -j8
[23:18:04] <hazzy-lab> :P
[23:18:16] <TurBoss> crash in
[23:18:16] <TurBoss> 3
[23:18:17] <hazzy-lab> I should do that same
[23:18:17] <TurBoss> 2
[23:18:18] <TurBoss> 1
[23:18:20] <hazzy-lab> lol
[23:18:25] <hazzy-lab> BOOOM
[23:18:30] <TurBoss> lol
[23:18:49] <hazzy-lab> done
[23:19:13] <TurBoss> the subroutines dir is set in the ini
[23:19:17] <hazzy-lab> on my old PC it took about 15min to compile
[23:19:27] <hazzy-lab> yes, that all seems right
[23:19:41] <TurBoss> the sim atc.hal is set to post_gui
[23:19:43] <TurBoss> etc..
[23:20:34] * hazzy-m sent a long message: < https://matrix.org >
[23:20:43] <TurBoss> aHHHHH
[23:20:46] <TurBoss> lol
[23:20:55] <TurBoss> wrong path
[23:20:57] <hazzy-m> LOLOLOL
[23:21:03] <hazzy-m> I did not notice
[23:21:13] <TurBoss> set in the ini
[23:21:13] <hazzy-m> it is a TurBoBug
[23:21:14] <hazzy-m> xD
[23:21:19] <TurBoss> yes!
[23:21:21] <TurBoss> spoted
[23:21:25] <hazzy-m> easy fix
[23:21:29] <TurBoss> great
[23:21:30] <hazzy-lab> sek
[23:23:46] * hazzy-m sent a long message: < https://matrix.org >
[23:23:49] <TurBoss> oh cool
[23:23:50] <hazzy-m> rel paths work!!
[23:24:09] <Lcvette[m]> you did it?
[23:24:29] <Lcvette[m]> Hurray!
[23:25:14] <hazzy-m> faild to home! something at least
[23:25:52] <TurBoss> it takes some secconds
[23:26:10] <hazzy-lab> what is the mcode to home?
[23:26:17] <TurBoss> m13
[23:26:25] <hazzy-lab> ty
[23:26:36] <TurBoss> you should set pin..
[23:26:39] <TurBoss> sek
[23:27:50] <TurBoss> ´´´
[23:27:51] <TurBoss> atc_widget.fwd <= motion.digital-out-03atc-rev atc_widget.rev hm2_7i92.0.7i76.0.3.output-06 <= motion.digital-out-04
[23:27:53] <TurBoss> meh
[23:27:55] <Lcvette[m]> while you are working I am writing a action sequence
[23:28:10] <hazzy-lab> Lcvette[m]: Excellent!
[23:29:30] * TurBoss sent a long message: < https://matrix.org >
[23:30:14] <TurBoss> atc-index <= motion.digital-in-04
[23:32:46] <TurBoss> hazzy-lab: managed to home?
[23:33:07] <hazzy-lab> no, thinking
[23:33:24] <TurBoss> have you estop and power the thing?
[23:33:34] <hazzy-lab> yes and homed
[23:33:34] <TurBoss> obious question
[23:33:43] <TurBoss> ah failed to home atc
[23:33:45] <TurBoss> ok
[23:34:36] <TurBoss> halcmd setp motion.digital-in-03 1
[23:34:41] <TurBoss> m13 the halcmd
[23:34:44] <TurBoss> *then
[23:35:37] <hazzy-lab> ok
[23:35:39] <hazzy-lab> ty
[23:36:08] <TurBoss> the add a tool to the carousel
[23:36:12] <TurBoss> m25 P1 T1
[23:36:24] <TurBoss> *then
[23:36:37] <hazzy-lab> seemed to work!!
[23:36:42] <TurBoss> but some magick
[23:36:54] <hazzy-lab> [QtPyVCP.utilities.status][ERROR] atc not in position (status.py:510)
[23:36:54] <TurBoss> seems to need some aother signal
[23:36:58] <TurBoss> yes!
[23:37:02] <TurBoss> thats it
[23:37:06] <hazzy-lab> hmm
[23:37:27] <TurBoss> halcmd setp motion.digital-in-04 1
[23:37:32] <TurBoss> I thin
[23:37:34] <TurBoss> k
[23:38:00] <hazzy-lab> ok, trying
[23:38:04] <Lcvette[m]> ive never used M25 to load tools so this is all new to me
[23:38:15] <TurBoss> how to?
[23:38:23] <TurBoss> you told me aerly
[23:38:26] <TurBoss> early
[23:38:33] <TurBoss> or before
[23:38:37] <Lcvette[m]> i always put them away using the spindle
[23:38:55] <Lcvette[m]> M61 Q1 for T1
[23:39:02] <Lcvette[m]> loads tool in spindle
[23:39:37] <Lcvette[m]> one sec, i forget the damned M commands i have to look at the remaps to jog my memory
[23:39:50] <Lcvette[m]> but i think it must be M23
[23:40:22] <Lcvette[m]> that ngc is empty thats not it
[23:41:11] <TurBoss> hazzy-lab: you can manually trigger the ATC_widget
[23:41:14] <TurBoss> with
[23:41:25] <TurBoss> halcmd setp atc_widget.fwd 1
[23:41:31] <TurBoss> halcmd setp atc_widget.rev 1
[23:41:31] <TurBoss> etc
[23:41:54] <TurBoss> no no etc there is no more
[23:42:12] <Lcvette[m]> oh yeah then M6 T0
[23:42:26] <Lcvette[m]> and it will put the tool in the spindle away
[23:42:29] <TurBoss> M61 Q1 then M6 T0
[23:42:40] <Lcvette[m]> yes
[23:42:46] <TurBoss> and for T2?
[23:42:47] <Lcvette[m]> thats for T1
[23:42:49] <TurBoss> m61 Q2?
[23:42:53] <TurBoss> guessing
[23:42:54] <Lcvette[m]> the Q# is the T#
[23:43:05] <Lcvette[m]> correct
[23:44:14] <TurBoss> mew there is also a orient spingle signal
[23:44:25] <Lcvette[m]> yes
[23:44:35] <Lcvette[m]> many signals
[23:45:19] <hazzy-lab> wait, there has to be an eayer way to do this
[23:45:31] <Lcvette[m]> i inmagined there was
[23:46:04] <Lcvette[m]> for testing can you comment out the signal inputs?
[23:46:04] <TurBoss> plug it in Lcvette machine lol
[23:46:07] <hazzy-lab> how about using one of the analog outputs, and setting it from one of the remap files to the value of the next tool to be loaded
[23:46:35] <TurBoss> the hal comp?
[23:46:36] <hazzy-lab> well, we still need a sim toolchanger
[23:46:56] <hazzy-lab> no, then we would not need a HAL comp
[23:47:13] <TurBoss> check the simulated_atc.hal
[23:47:16] <TurBoss> in hallib
[23:47:22] <hazzy-lab> STATUS gives the values of the along inputs
[23:48:14] <Lcvette[m]> back in 2 minutes, pee break
[23:50:27] <Lcvette[m]> back
[23:50:59] <TurBoss> in time
[23:52:09] <TurBoss> hazzy-lab: do you have a plan?
[23:52:20] <hazzy-lab> working on one :)
[23:52:27] <TurBoss> great
[23:57:25] * TurBoss heads to the tool table
