[08:16:34] <pdadroid[m]> hello how are U today
[08:23:28] <pdadroid[m]> i was trying enter the #ubuntu with no succes
[13:38:03] -!- dankek_golang has joined #hazzy
[13:40:06] -!- dankek_golang has quit [Client Quit]
[13:45:53] -!- Roguish has joined #hazzy

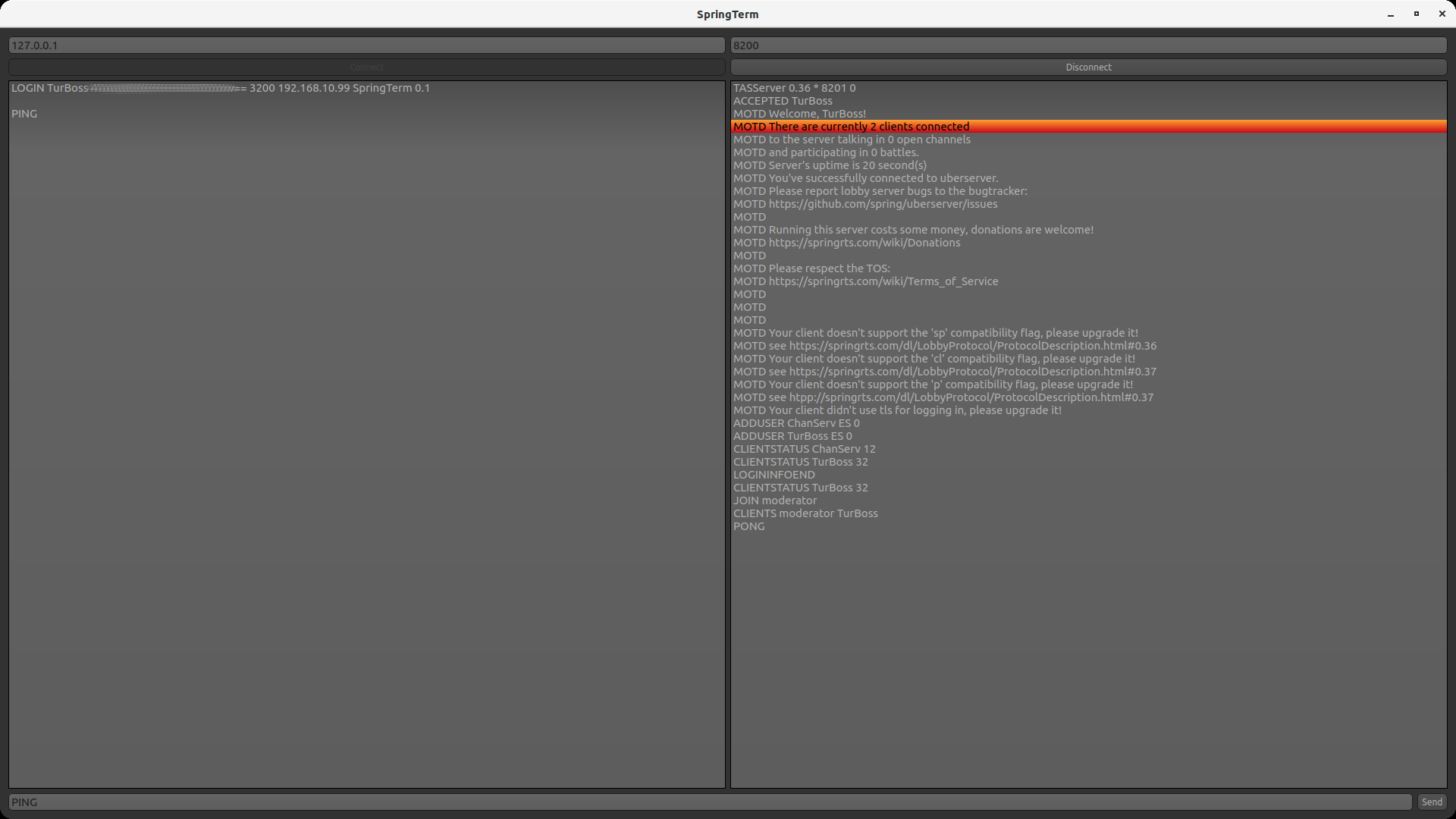

[15:08:07] * TurBoss uploaded an image: Captura de pantalla de 2018-11-04 21-05-41.png (175KB) < https://matrix.org >
[15:10:45] <TurBoss> hazzy: any task for me?
[15:10:45] <TurBoss> :P
[17:40:47] <TurBoss> Lcvette: hey was up?¿
[17:41:01] <TurBoss> silent room
[17:41:03] <TurBoss> :P
[17:49:01] <Lcvette> Wife day, ignored her all day yesterday
[17:50:34] <Lcvette> Still at?
[17:50:37] <Lcvette> ATC
[17:50:40] <Lcvette> :D
[17:51:43] <TurBoss> :O
[17:52:12] <TurBoss> I'm wiring some induction sensors
[17:58:58] <Lcvette> Nice!!
[18:10:58] -!- hazzy has joined #hazzy
[18:10:58] -!- mode/#hazzy [+o hazzy] by ChanServ
[18:16:33] <Lcvette> Which sensors
[18:24:29] <TurBoss> home ones

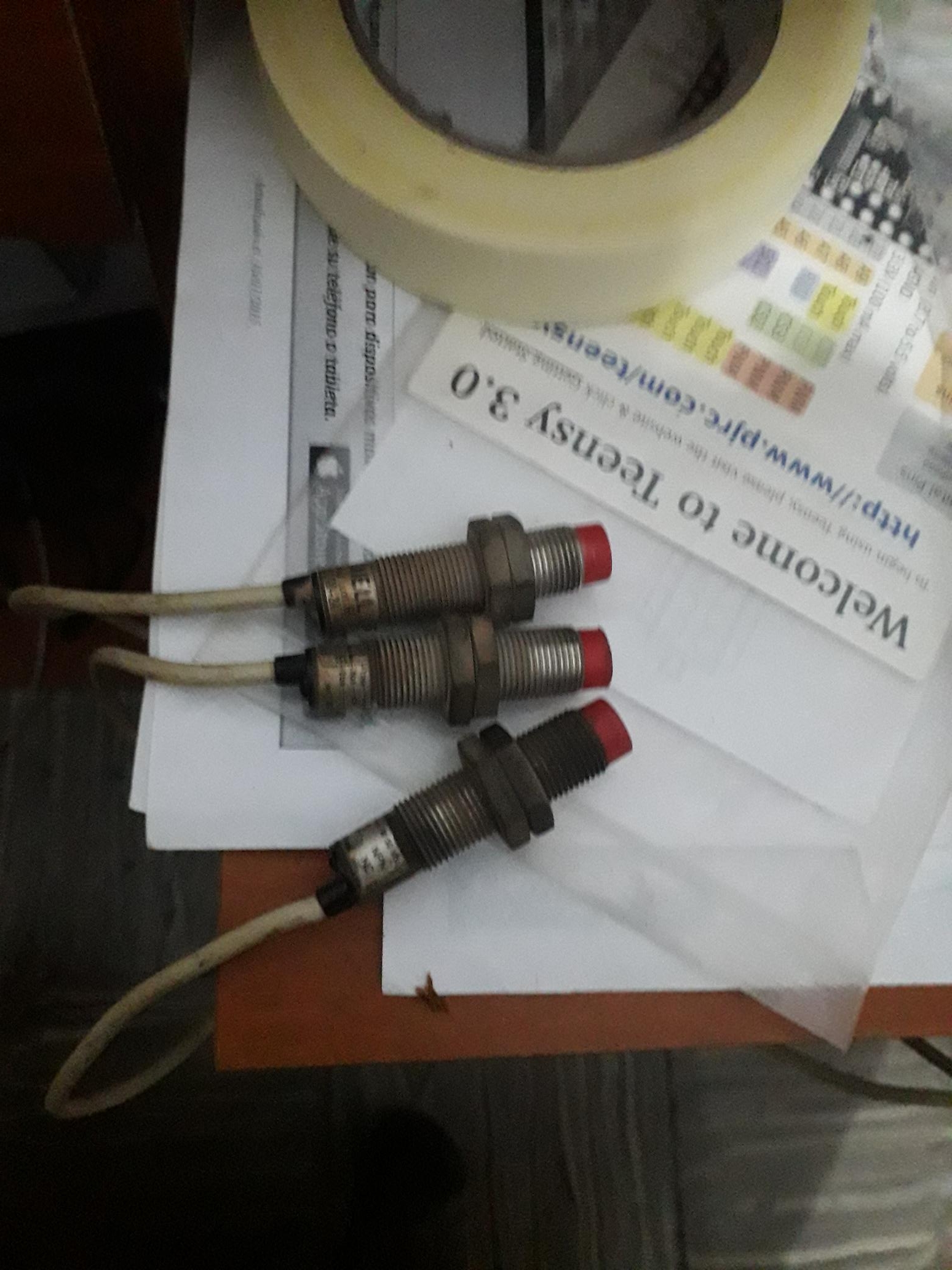

[18:25:29] * TurBoss uploaded an image: VectorImage_2018-11-05_122517.jpg (1172KB) < https://matrix.org >
[18:26:36] <TurBoss> noticed that there are 2 NO 1 NC
[18:26:40] <TurBoss> :(
[18:42:41] <hazzy-m> evening
[18:42:45] <hazzy-m> Been gone all day, drove up to north Georgia to see the fall color
[18:42:45] <TurBoss> Hello
[18:42:57] <TurBoss> cool
[18:43:46] <hazzy-m> TurBoss: Maybe you can use a transistor to make the NO sensor NC? Probably not worth it ..
[18:43:55] <TurBoss> I have more
[18:43:59] <TurBoss> will search
[18:44:08] <hazzy-m> oh good
[18:44:12] <TurBoss> for another one
[18:44:43] <TurBoss> hazzy: did you saw th eSpringTerm thing?
[18:47:31] <hazzy-m> whoa! Very nice!
[18:47:35] <hazzy-m> Qt5?
[18:47:40] <TurBoss> yes
[18:47:42] <Lcvette> I thought you wanted NC
[18:47:53] <TurBoss> or NC
[18:48:01] <TurBoss> doesn't matter but all the same king
[18:48:05] <TurBoss> *kind
[18:48:14] <Lcvette> Does matter
[18:48:20] <TurBoss> yes?
[18:48:21] <Lcvette> For safety
[18:48:21] <TurBoss> ohhh
[18:48:25] <Lcvette> Yes
[18:48:25] <TurBoss> NC
[18:48:29] <TurBoss> oki!!
[18:48:37] <Lcvette> No can stop working and crash
[18:48:47] <Lcvette> NO*
[18:48:50] <TurBoss> True!
[18:49:12] <Lcvette> NC if fail go open and fault or stop machine
[18:49:39] <Lcvette> Or if wire connection breaks etc
[18:49:47] <Lcvette> Better to use NC
[18:49:57] <TurBoss> OK will do!
[18:50:35] <Lcvette> This for use on the Mesa?
[18:50:39] <TurBoss> yes
[18:50:53] <TurBoss> they work fine
[18:51:01] <TurBoss> 10-30V
[18:51:07] <TurBoss> used 24 v as field
[18:51:58] <Lcvette> They also require you use specific configuration
[18:52:02] <Lcvette> Pnp I believe
[18:52:07] <TurBoss> I also added a big relay (with discharge diode an snubber network)
[18:52:12] <TurBoss> *and
[18:52:18] <TurBoss> especial config?
[18:52:21] <TurBoss> where?
[18:52:46] <Lcvette> For the type of input
[18:52:58] <TurBoss> tell me more
[18:52:59] <TurBoss> :P
[18:53:02] <Lcvette> It wants a positive voltage input, it a ground
[18:53:17] <Lcvette> Not a ground
[18:53:47] <TurBoss> they have 3 wires br bk bu
[18:54:06] <Lcvette> Yes but the sensor itself needs to be pnp type
[18:54:15] <TurBoss> let me check
[18:54:31] <TurBoss> they are NPN
[18:54:33] <Lcvette> Pnp and non both have 3 wires
[18:54:42] <Lcvette> Those won't work
[18:54:51] <TurBoss> it worked
[18:54:55] <TurBoss> is bad?
[18:55:36] <Lcvette> Are you tuning the sensor output direct to Mesa?
[18:55:45] <Lcvette> Running
[18:55:49] <TurBoss> yes
[18:56:29] <TurBoss> Brown -> VField
[18:56:30] <TurBoss> Black -> Input
[18:56:30] <TurBoss> Blue -> Ground
[18:56:32] <Lcvette> That's sending a ground signal low signal
[18:56:40] <TurBoss> ohhhhhhhhhh
[18:57:18] <TurBoss> but I don't get an inverted signal
[18:57:23] <Lcvette> NPN negative positive negative
[18:57:42] <Lcvette> Pnp positive negative positive
[18:57:58] <Lcvette> Positive output signal
[18:58:18] <TurBoss> ok
[18:58:20] <Lcvette> Read you Mesa 7i76 manual
[18:58:32] <TurBoss> I'll buy some PNP ones
[18:58:39] <Lcvette> It states the inputs need to be sourcing
[18:59:12] <Lcvette> Is confusing I know
[18:59:12] <TurBoss> OK!
[18:59:25] <Lcvette> But it helps with noise immunity
[19:01:20] <TurBoss> acording to this : https://www.schneider-electric.co.uk
[19:01:32] * Lcvette sent a long message: < https://matrix.org >
[19:01:33] <TurBoss> PNP for sinking and NPN for sourcing
[19:01:40] <Lcvette> Sinking
[19:01:59] <Lcvette> Sorry I confused the term but it needs positive input
[19:02:26] <TurBoss> ok but you were right
[19:03:49] <TurBoss> Thanks for help :P
[19:05:02] <Lcvette> Yes no problem, thought I might catch you not reading the manual again
[19:05:13] <TurBoss> :D
[19:05:21] <Lcvette> Naughty turbos trying to smoke out his new mesa card
[19:05:35] <TurBoss> I'm a smoker
[19:05:43] <Lcvette> You'll read after you have to replace it
[19:05:51] <Lcvette> Lol
[19:06:16] <TurBoss> hazzy: You!
[19:06:21] <hazzy-m> wait, but TurBoss has the 7i76D, so it might be the opposite?
[19:06:22] <TurBoss> What can I do
[19:06:30] <TurBoss> Only for Outputs
[19:06:50] <hazzy-m> oh, right
[19:07:04] <TurBoss> I need some Qtpyvcp task
[19:07:06] <Lcvette> D?
[19:07:12] <Lcvette> I'm unfamiliar
[19:07:14] <TurBoss> Sourcing outputss
[19:07:28] <Lcvette> Didn't know there was a "D"
[19:07:46] <TurBoss> just picked it
[19:07:47] <TurBoss> :P
[19:07:58] <TurBoss> also... hazzy
[19:08:15] <TurBoss> I found a little bug in 3dplot
[19:08:36] <TurBoss> path goes parallel to the real path
[19:09:20] <TurBoss> Lcvette: so I need PNP NC?
[19:49:01] <Lcvette> That's what I used
[19:49:08] <Lcvette> Safest
[19:49:17] <Lcvette> And what works for the mesa

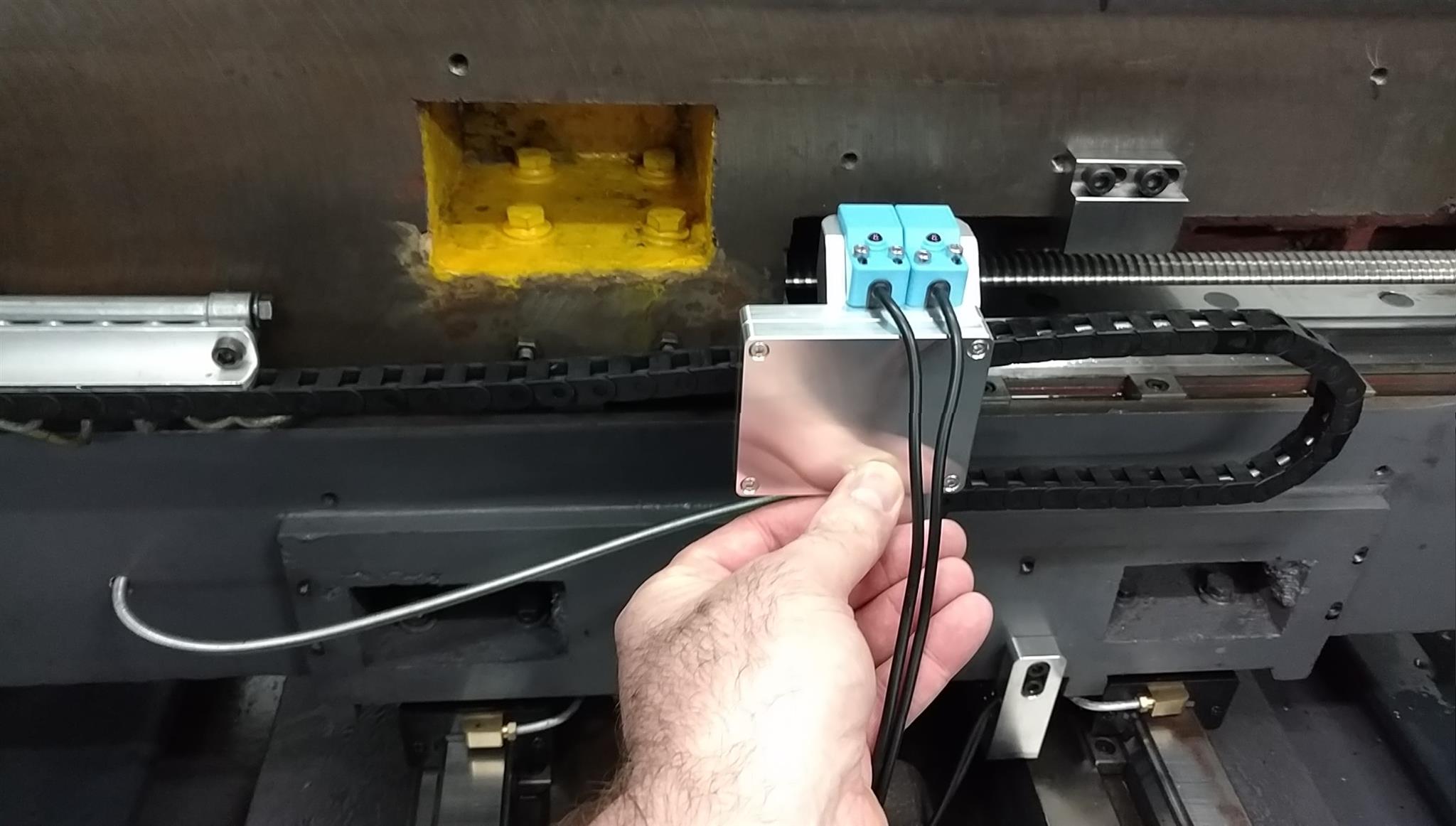

[19:51:16] * Lcvette uploaded an image: scv_15281481160132050244852.jpg (169KB) < https://matrix.org >
[19:57:24] <TurBoss> okey!
[20:19:22] -!- mode/#hazzy [+o hazzy-m] by ChanServ

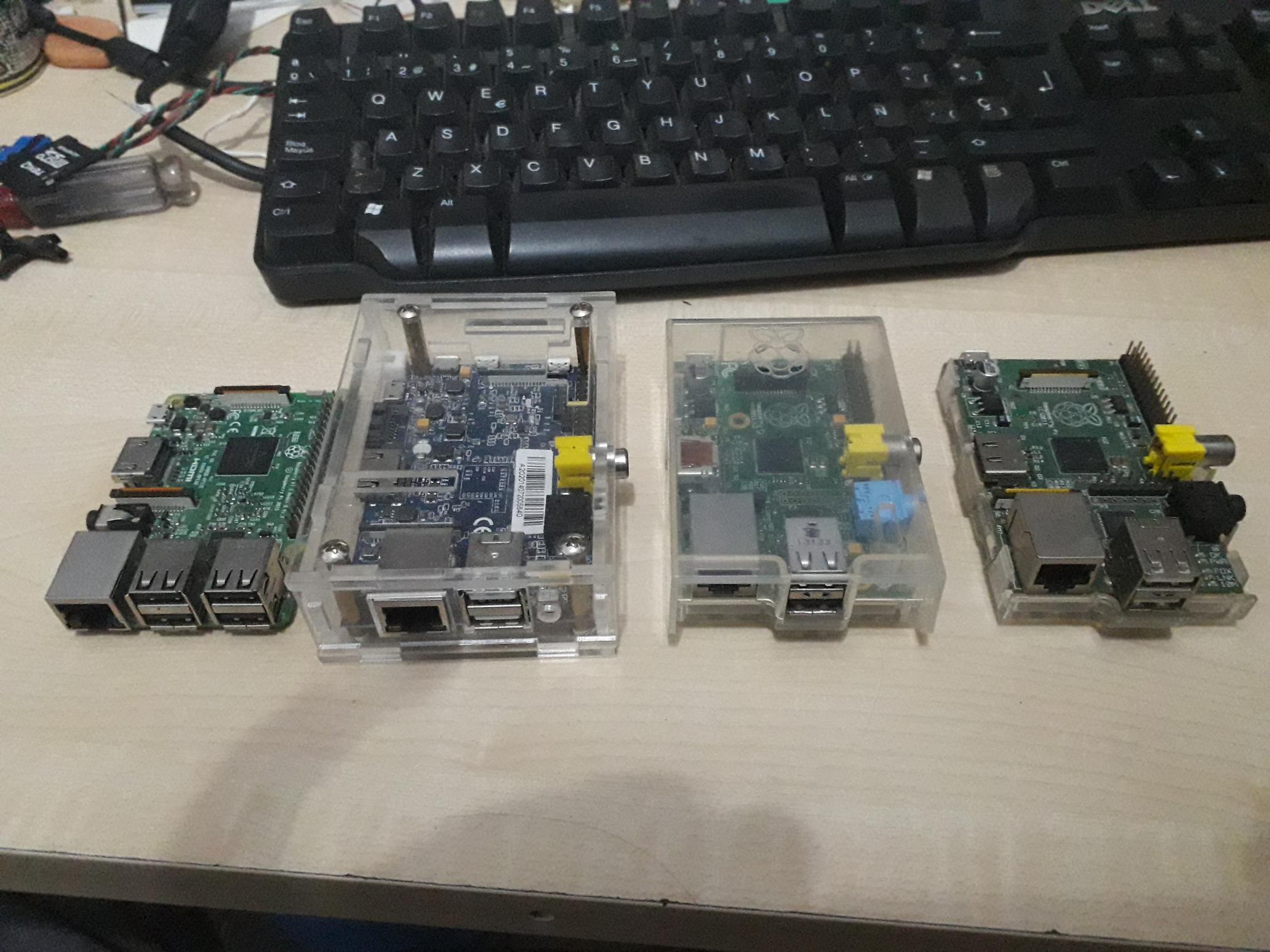

[20:37:45] * TurBoss uploaded an image: VectorImage_2018-11-05_023737.jpg (312KB) < https://matrix.org >
[20:37:55] <TurBoss> The raspy family
