[00:10:52] <Lcvette> birthdays over hazzy, back to work!
[00:10:55] <Lcvette> hahahaha
[00:10:59] <Lcvette> JK :p
[00:11:02] <Lcvette> :D
[00:11:25] <hazzy-m> Yes Sir!
[00:11:28] <hazzy-m> Lol
[00:11:38] <Lcvette> lol
[00:11:48] <Lcvette> hey question fo ya
[00:12:00] <hazzy-m> yeah?
[00:12:07] <Lcvette> you have a wired mpg?
[00:12:11] <hazzy-m> yes
[00:12:22] <Lcvette> how did you wire yours?
[00:12:51] <hazzy-m> I used one of the encoder inputs on the mesa card to read the MPG, real simple
[00:13:32] <hazzy-m> I just have a plain MPG wheel, and then rotary selector switches for axis and jog ingrement
[00:13:35] <Lcvette> what type mpg is it?
[00:14:54] <hazzy-m> like this: http://a.co

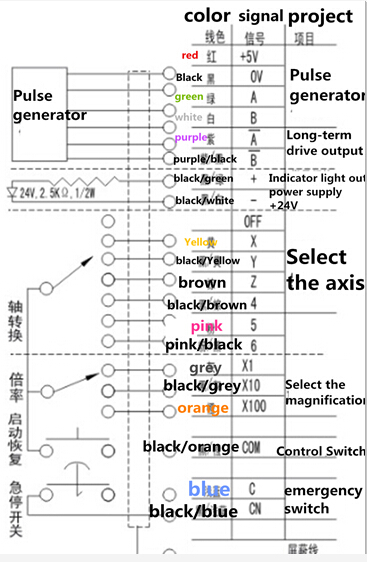

[00:14:56] * Lcvette uploaded an image: MPG Pin Out Diagram.jpg (141KB) < https://matrix.org >
[00:15:59] <hazzy-m> I have basically the same schematic as that, just build from individual components
[00:16:21] <Lcvette> and the encoder input is better than the 16-19 pins?
[00:17:04] <hazzy-m> can't remember what those are, I had a spare hardware encoder input to just used that
[00:17:31] <hazzy-m> you can also use a softwear encoder counder, should be plenty fast enough for a MPG
[00:17:47] <hazzy-m> unless you spin it with a router
[00:17:49] <hazzy-m> lol
[00:18:40] <hazzy-m> I multiplexed the outputs from the axis and scale selector switches so they only needed two inputs each

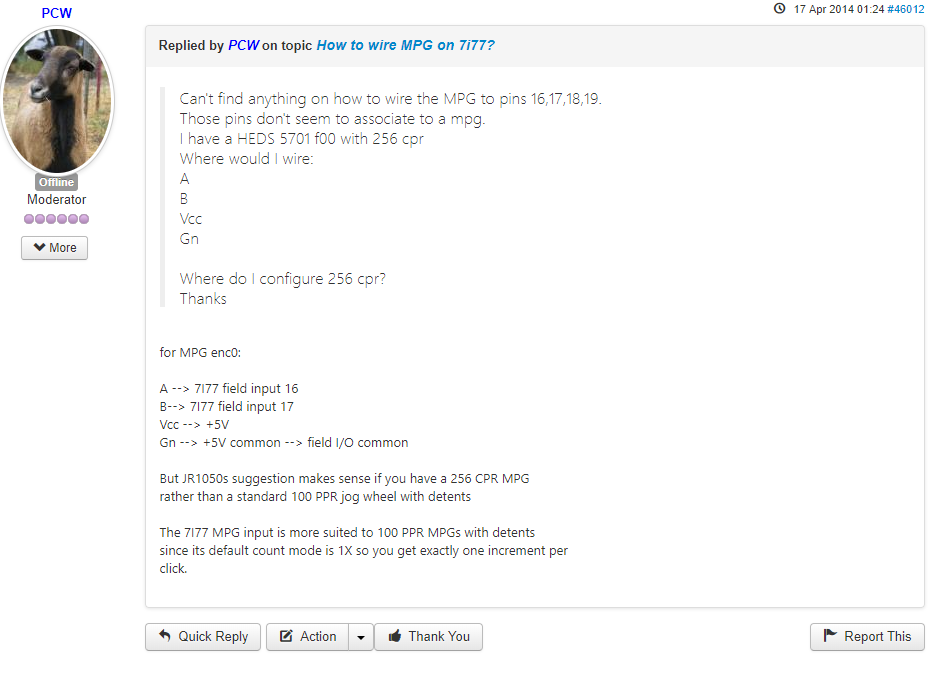

[00:18:48] * Lcvette uploaded an image: image.png (99KB) < https://matrix.org >
[00:19:58] <hazzy-m> oh, perfect!
[00:20:35] <Lcvette> which one
[00:20:37] <Lcvette> lol
[00:20:41] <Lcvette> im confuuuuused
[00:20:47] <Lcvette> as usual
[00:20:51] <hazzy-m> I had to dived the encoder counts by 4 because the regular encoder counter is quadrature
[00:21:45] <hazzy-m> your talking to me, what do you expect, not to be confused?
[00:21:47] <hazzy-m> xD
[00:22:16] <hazzy-m> PCWs setup looks good
[00:23:12] <Lcvette> but i have 4 wires
[00:23:32] <Lcvette> A,A-,B,B-
[00:23:44] <hazzy-m> if you don't want quadrature you only need two
[00:23:50] <hazzy-m> A and A-
[00:24:24] <hazzy-m> wait, that won;t work ..
[00:24:39] <hazzy-m> it would not be able to tell direction, only speed
[00:25:18] <hazzy-m> he must not be using differential inputs there, only A and B, leaven the A- and B- connected to ground
[00:27:39] <hazzy-m> I wrote a custom HAL comp to make it real easy to hook everything up (easier to write C than HAL ..)
[00:27:40] <hazzy-m> https://github.com
[00:28:34] <Lcvette> nice
[00:29:01] <Lcvette> but that is for the other connection method correct?
[00:30:00] <hazzy-m> yes
[00:30:10] <hazzy-m> you have extra encoders, no?
[00:30:32] <Lcvette> um.. not many
[00:30:42] <Lcvette> have all my mills connected already
[00:30:45] <hazzy-m> you only need on :P
[00:30:47] <Lcvette> plus spindle
[00:31:17] <hazzy-m> I thought 7i77 had 6 or 7 encoders
[00:31:18] <Lcvette> but i plan on going 5 axis
[00:31:28] <Lcvette> 5
[00:31:36] <Lcvette> 6
[00:31:42] <Lcvette> sorry
[00:31:47] <Lcvette> spindle plus 5 axis
[00:31:51] <hazzy-m> 6 axes plus spindle?
[00:31:56] <hazzy-m> ah
[00:31:57] <hazzy-m> ok
[00:32:30] <Lcvette> 5+S

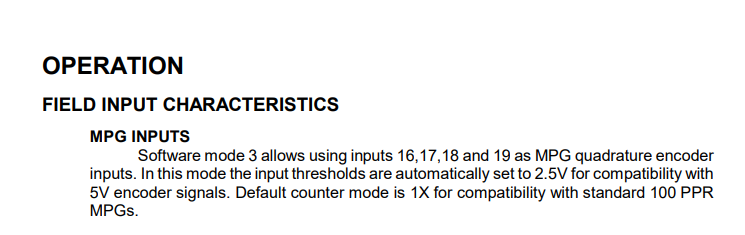

[00:32:41] <hazzy-m> "2 MPG encoders on inputs 16..19"
[00:32:50] <Lcvette> sounds like he needs to read the linuxcnc manual
[00:32:51] <hazzy-m> so I guess use those
[00:33:15] <hazzy-m> my comp will work with watever encoder counter you use
[00:33:25] <Lcvette> oh sweet
[00:34:13] <Lcvette> course he does
[00:35:09] <Lcvette> i need to wire it in i reckon just trying to get my ducks in a row on it
[00:35:17] <Lcvette> i have the 7i76 and 7i77
[00:35:24] <Lcvette> both have the mpg inputs?
[00:36:04] <Lcvette> i should just put 3 wheels on my panels one for each axis
[00:36:06] <Lcvette> lol
[00:36:07] <hazzy-m> I think so, it's been a while since I read up on them though
[00:36:29] <hazzy-m> I think they both have 2 software counters for MPGs
[00:36:53] <hazzy-m> yeah, that would be nice!
[00:37:01] <hazzy-m> be almost like a track
[00:37:16] <hazzy-m> Trak
[00:38:50] <Lcvette> yeah..lol
[00:38:57] <Lcvette> etchesketch
[00:38:59] <Lcvette> lol
[00:39:14] <Lcvette> supersized version
[00:39:15] <Lcvette> hahaha
[00:40:26] <hazzy-m> a budy has a CNC lathe with MPG hand wheels, it is real handy for one offs, and you can also "wheel" thru a program (forward and reverse) which is awesome
[00:40:54] <Lcvette> yeah i saw a machine on youtube built like that and i liked it
[00:41:22] <Lcvette> i think i am going to build the 3in1 into that type of setup for doing manual/cnc type shop task jobs

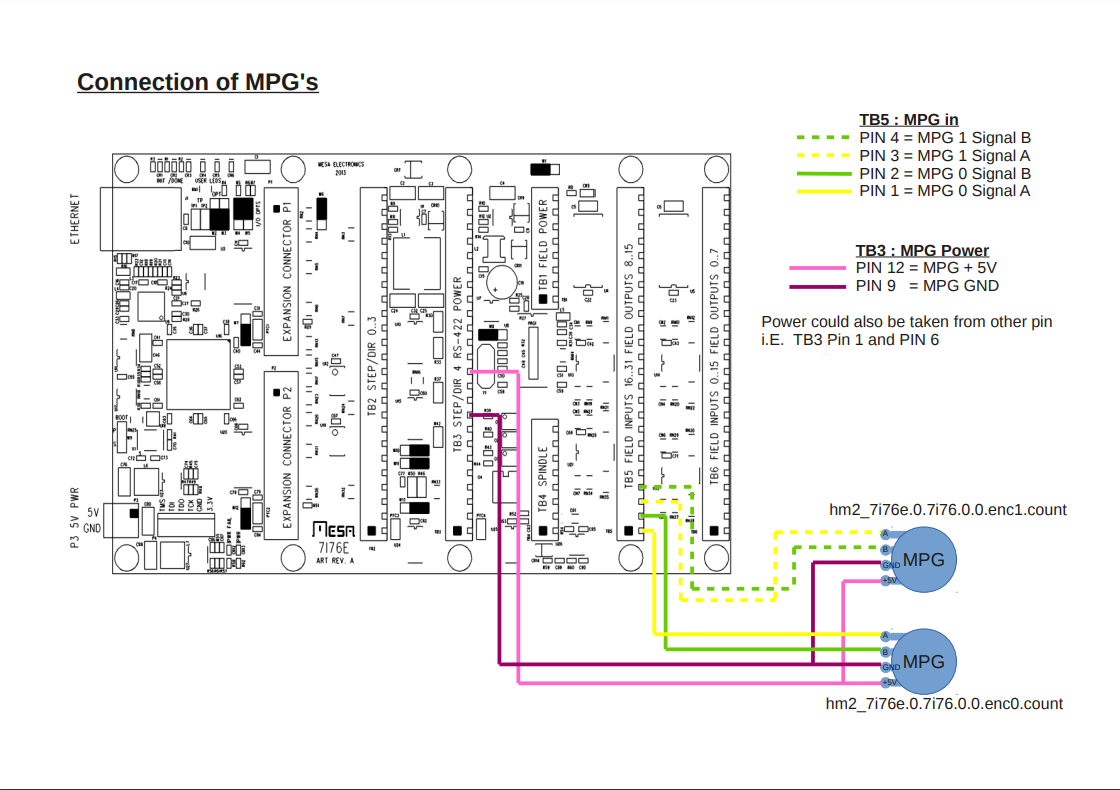

[00:54:51] * Lcvette posted a file: 171217_mesa_7i76_label_jj_2017-12-30.pdf (68KB) < https://matrix.org >
[00:54:59] <Lcvette> these look handy
[00:57:36] * hazzy-m uploaded an image: image.png (173KB) < https://matrix.org >
[00:58:14] * Lcvette uploaded an image: image.png (224KB) < https://matrix.org >
[00:59:00] * Lcvette posted a file: 7i76_Anschluss_2017-01-02.pdf (210KB) < https://matrix.org >
[00:59:08] <Lcvette> great document
[01:01:53] <hazzy-m> fantastic!
[01:02:40] <hazzy-m> looks easy. most MPGs don't even have diferential signals, so you should be fine just grounding A- and B-
[01:03:11] <Lcvette> do they go to ground or get left unconnected?
[01:03:37] <hazzy-m> I think they need to go to ground, but it may depend on the type of encoder
[01:04:33] <hazzy-m> don't rely on me on that
[01:04:48] <Lcvette> think they would be left unconnected
[01:05:10] <Lcvette> since the encoder already is receiving voltage
[01:05:20] <Lcvette> it would make those two just outputs
[01:05:46] <hazzy-m> I guess they are probably not completely floating, so you are probably correct
[01:05:56] <Lcvette> but i don't know either just have a "feeling"
[01:06:07] <Lcvette> lol
[01:06:51] <Lcvette> its just a seperate sensor pulsing the falling edge correct?
[01:07:40] <Lcvette> or rising edge i guess it could be depending on which way you wired it to the control
[01:07:54] <Lcvette> ie, one sensor is in front of the other
[01:08:44] <Lcvette> i posed it to pcw in the main linuxcnc chat
[01:09:50] <hazzy-m> the A+ and A- are differential signals, meaning one is pushing and the other is pulling. that results in better noise immunity and is what is specifies in the RS422 standard
[01:10:04] <hazzy-m> so both A+ and A- are the same signal
[01:10:22] <hazzy-m> pretty sure that is correct
[01:10:58] <hazzy-m> its been a while since I took instruments and controls ...
[01:11:17] * hazzy-m should get out his text books
[01:11:23] <Lcvette> lol
[01:11:29] <Lcvette> lcvette hates text books
[01:11:55] <Lcvette> lcvette goes to the youtube
[01:12:13] * hazzy-m goes to sleep
[01:12:16] <hazzy-m> :D
[01:12:23] <hazzy-m> been a long day
[01:12:27] <Lcvette> happy birthday youngman
[01:12:29] <hazzy-m> but a lot of fun
[01:12:31] <hazzy-m> thanks!
[01:12:36] <hazzy-m> gn8
[01:12:41] <Lcvette> sleep well
[06:22:00] <jthornton> morning

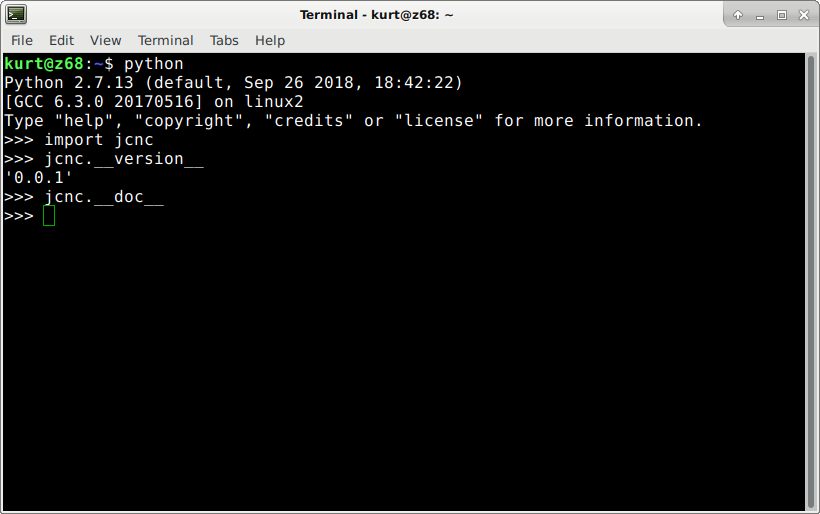

[07:11:31] <jthornton> hazzy-m: got Ctrl c to give me a clean exit finally! https://paste.ubuntu.com
[08:35:43] -!- jthornton has quit [Read error: Connection reset by peer]
[08:36:28] -!- jthornton has joined #hazzy
[09:57:43] -!- Roguish has joined #hazzy
[10:34:17] <Lcvette> Nice jt
[10:36:04] <JT-Shop> thanks
[11:24:11] <hazzy-m> JT-Shop: Nice!!

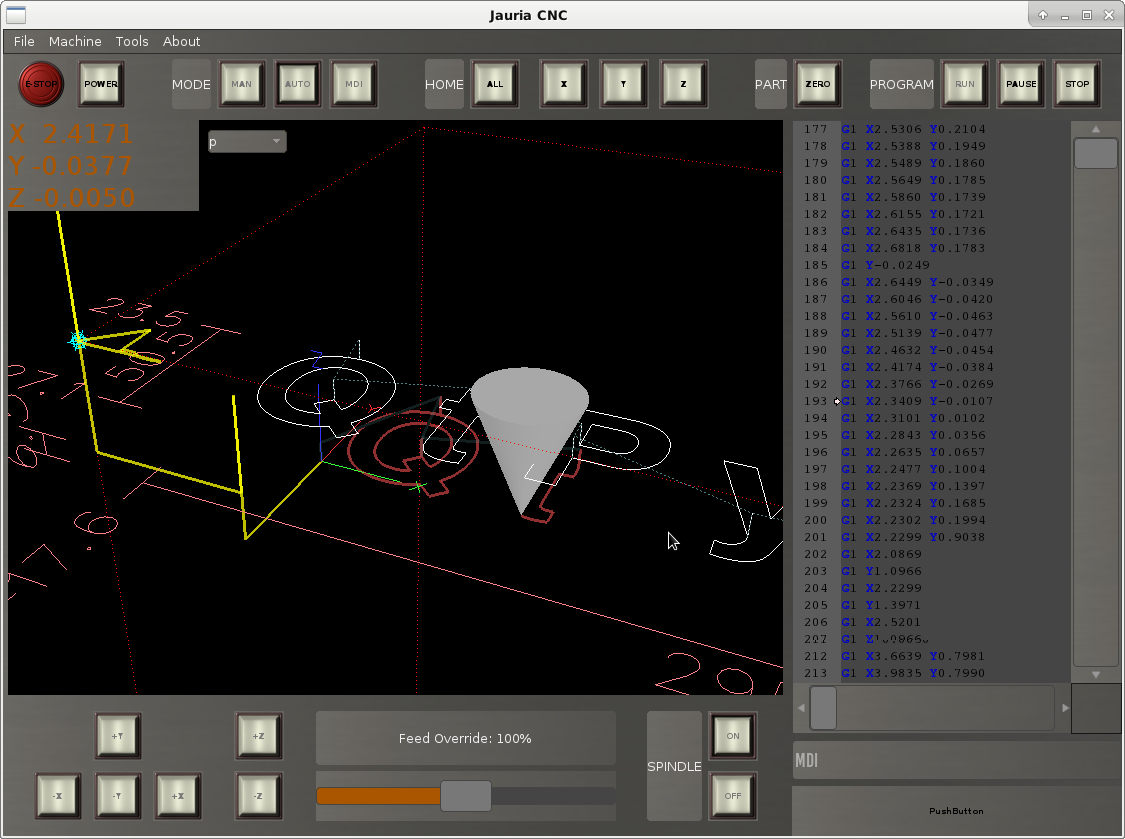

[11:46:08] <Lcvette> hurray! the backplot origin and numbers move when you zero!
[12:26:07] <Lcvette> hazzy you on?
[12:29:27] <hazzy-m> Lcvette: Hey!
[12:29:37] <Lcvette> yay!
[12:29:55] <Lcvette> had an MPG question ffrom your page link you sent
[12:30:42] <Lcvette> do i just wire the axis select and increment select to seperate inputs?
[12:31:20] <Lcvette> actual wiring
[12:31:24] <Lcvette> copper type
[12:31:26] <Lcvette> lol
[12:32:08] <Lcvette> i was sure thats how i was supposed to do it but i remembered you said somting about using fewer input with your method and didn't want to do it wrong
[12:34:09] <Lcvette> then i also started thinking about the gui interaction and the mpg again
[12:34:15] <Lcvette> it all got confusing
[12:34:49] <Lcvette> i figured we better sort that out first
[12:36:08] * hazzy-m reboots
[12:36:34] <Lcvette> lol
[12:36:38] <Lcvette> himself or the computer
[12:36:39] <Lcvette> lol
[12:36:54] <hazzy-m> Both
[12:36:56] <hazzy-m> Lol
[12:37:12] <Lcvette> hahahaha

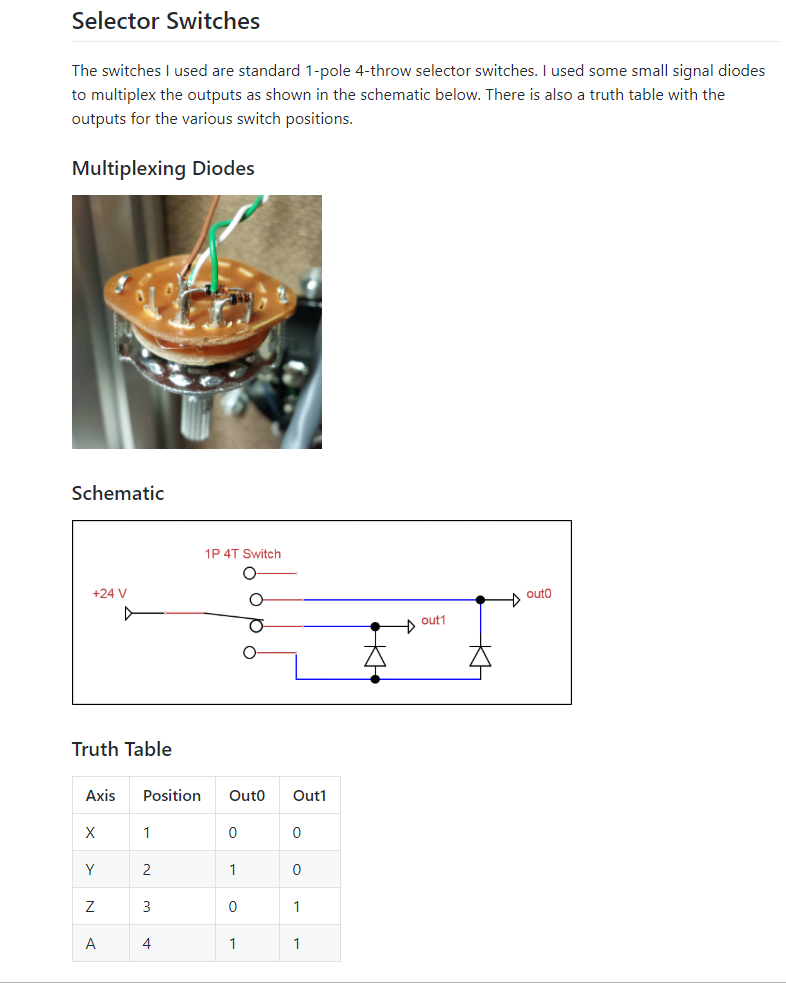

[12:46:50] <hazzy-m> I multiplexed the selectory switch outputs so they I could get four states from only two inputs
[12:47:11] <hazzy-m> (0, 0), (1, 0), (0, 1), (1, 1)
[12:47:39] <hazzy-m> There should be a diagram of how I connected the diodes to do that
[12:48:38] * Lcvette uploaded an image: image.png (179KB) < https://matrix.org >
[12:48:49] <hazzy-m> so if you use my comp you only need 2 inputs for selecteing up to four axes, and 2 input for selcting up to four step scales
[12:48:58] <hazzy-m> yes, that
[12:51:17] <Lcvette> so i need fancy things
[12:51:35] <hazzy-m> diods?
[12:51:44] <Lcvette> yeah
[12:51:47] <Lcvette> :p
[12:51:49] <Lcvette> lol
[12:51:59] <Lcvette> need to see if i have any from all the kits i bought
[12:52:23] <hazzy-m> any will work
[12:52:50] <hazzy-m> I have thousands, I can mail you some if you can't find any

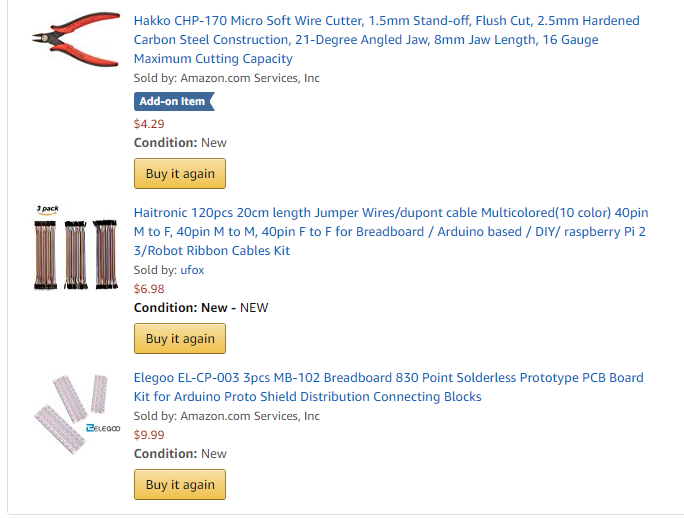

[12:53:30] <Lcvette> https://www.amazon.com
[12:53:32] <Lcvette> i bought this kit
[12:53:37] <Lcvette> is what i need in there?
[12:54:14] <hazzy-m> yes, do you already have it?
[12:54:20] <Lcvette> yes
[12:54:31] <hazzy-m> perfect!
[12:54:45] <Lcvette> i bought lots of arduino stuff i have never even opened or used yet
[12:54:47] <Lcvette> lol
[12:54:50] <Lcvette> bread boards etc coupole arduinos
[12:55:27] <hazzy-m> the 1n4148 should be good
[12:55:55] <hazzy-m> probably what I uesed

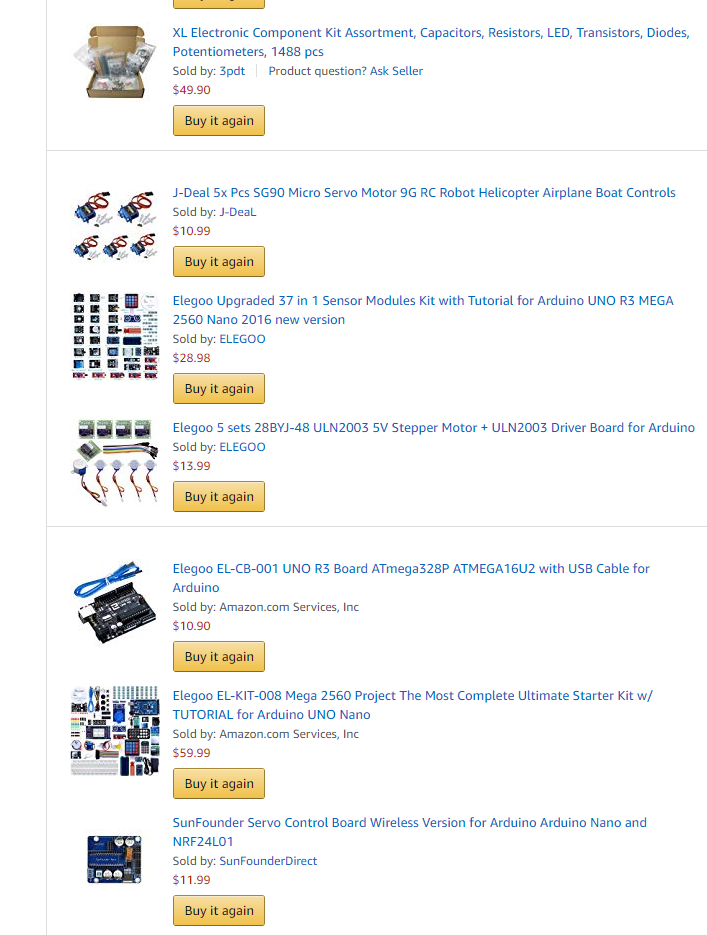

[12:56:55] * Lcvette uploaded an image: image.png (240KB) < https://matrix.org >
[12:57:16] <Lcvette> lcvette bought all this crap
[12:57:31] <Lcvette> to one day learn more about electronics
[12:58:02] <hazzy-m> your set!!
[12:59:44] * Lcvette uploaded an image: image.png (111KB) < https://matrix.org >
[13:00:14] <jthornton> you just need a Raspberry Pi 3B to play along with chicken doors...
[13:00:16] <Lcvette> i just woke up one day and said hey i need more crap to one day get around too
[13:00:33] <Lcvette> i need Rasberry Pi 3B?
[13:00:33] * jthornton hits the mountain bike trail for a while
[13:01:03] <Lcvette> lcvette goes to buy a rasberry pi
[13:01:07] <jthornton> you can do it with the arduino but it's not as fun
[13:02:10] <Lcvette> lcvette thinks he should stay on task
[13:02:16] <hazzy-m> LOL
[13:02:16] <Lcvette> too amny options for rasberry pi
[13:02:25] <hazzy-m> and you complain about me being ADD ...
[13:02:26] <hazzy-m> xD
[13:02:43] <Lcvette> already eating more than one elephant at the moment
[13:02:51] <hazzy-m> hahah
[13:03:33] <Lcvette> ok so back to the task at hand i now see how to wire the switch
[13:03:42] <Lcvette> for the axis
[13:04:34] <Lcvette> my mpg only has 3 positions for step
[13:04:39] <Lcvette> x1 x10 x100
[13:08:16] <Lcvette> wonder if lcvette has a switch in his kits with more positions
[13:17:28] <Lcvette> https://www.amazon.com
[13:17:33] <Lcvette> this looks fun
[13:28:30] <hazzy-m> Since you only have a 3 Pi's switch (which is plenty) you don't need to multiplex, just leave one wire disconnected, and connect the other two
[13:29:38] <Lcvette> ok
[13:29:57] <Lcvette> any particular one to leave unconnectoed?
[13:29:59] <hazzy-m> Then set up in hal so default step scale is no scale signal, other is signal from one input and the third scale is signal from the other input
[13:31:09] <hazzy-m> Probably leave the smallest unconnected so it defaults to slowsest and safest
[13:31:25] <Lcvette> perfect
[13:31:42] <Lcvette> .0001, .001, .01
[13:31:44] <Lcvette> ?
[13:31:54] <Lcvette> or?
[13:32:02] <Lcvette> what would you recommend?
[13:32:23] <Lcvette> never used a hard wired mpg not sure what to expect
[13:32:56] <TurBoss> Hello!!
[13:32:58] <Lcvette> .01 would give 1" per rev
[13:33:09] <hazzy-m> Yes, that is what i use, .1 is too large a step
[13:33:19] <Lcvette> perfect!
[13:33:26] <hazzy-m> TurBoss hello!
[13:33:28] <Lcvette> whoo hoo i feel good about the wiring now!
[13:33:36] <Lcvette> turboss! hello!
[13:34:50] <Lcvette> ok so now on to a gui question regarding the mpg
[13:35:06] <Lcvette> i know we discussed it previously
[13:35:18] <Lcvette> but i forget how it will interact
[13:35:54] <Lcvette> this one has a enable switch which is nothing more than a switch to enable 24v+ to the switch poles
[13:36:24] <Lcvette> which i think would mean that the multiplexing would allow the mpg to work even when disabled?
[13:44:48] <Lcvette> is there a way we could add a gui button for MPG, that would enable or disable the inputs from the MPG for safety?
[13:44:52] <TurBoss> Lcvette: you should enable the +kcjengr:matrix.org badge lol
[13:45:13] <Lcvette> i dunno how
[13:45:23] <TurBoss> ok riot settings
[13:45:55] <TurBoss> > is there a way we could add a gui button for MPG, that would enable or disable the inputs from the MPG for safety?
[13:45:56] <TurBoss> I think that would require hal
[13:46:27] <Lcvette> did it work?
[13:46:30] <Lcvette> hurray
[13:46:36] <TurBoss> should show in some time
[13:46:47] <TurBoss> did you enabled it?=
[13:46:53] <Lcvette> yes, i see it
[13:46:57] <TurBoss> great
[13:46:58] <TurBoss> !!!
[13:47:01] <TurBoss> more fun
[13:47:04] <Lcvette> now its confusing
[13:47:09] <Lcvette> everyone looks like kcj
[13:47:27] <Lcvette> think it needs a new color or something
[13:47:38] <TurBoss> hazzy: should put a furby in their avatar
[13:47:44] <TurBoss> 😁
[13:48:22] <TurBoss> what you got for BDay?
[13:48:25] <TurBoss> so much fun?
[13:49:46] <hazzy-m> better?
[13:49:46] <TurBoss> beetter
[13:49:55] <TurBoss> lol!
[13:50:09] <TurBoss> we are now the KCJ crew
[13:50:18] <Lcvette> hahaha
[13:50:25] <TurBoss> xDDD
[13:50:32] <hazzy-m> LOL
[13:50:53] <TurBoss> its a kurtby
[13:50:55] <TurBoss> lol
[13:51:35] <TurBoss> what you working one guys?
[13:51:43] <TurBoss> new mpg Lcvette
[13:52:09] <Lcvette> just getting ready for testing and i had waited on the mpg install because i wasn't sure what to do with it and the gui
[13:52:20] <hazzy-m> TurBoss: my sis gave me an old amazon echo dot so I can be spied on by the NSA, I got a Japanese knife, LOTS of dark chocolate and several engineering book!
[13:52:22] <TurBoss> oh
[13:52:40] <Lcvette> nice!
[13:52:40] <TurBoss> Amazing
[13:52:42] <hazzy-m> it wasd a lot of fun

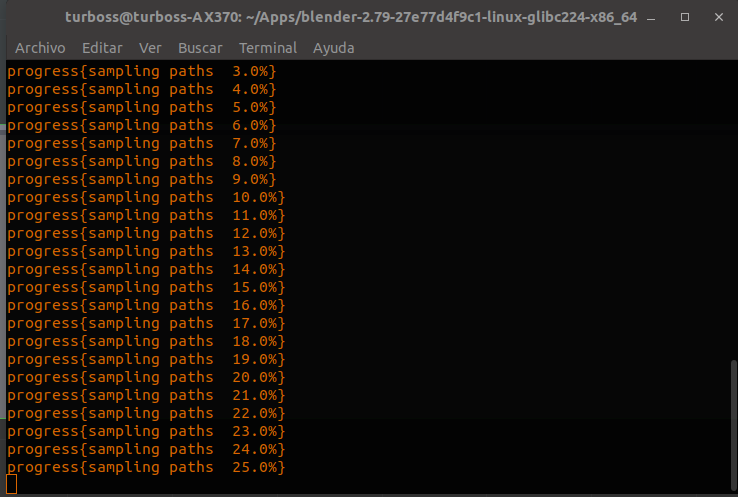

[13:53:09] * TurBoss uploaded an image: image.png (88KB) < https://matrix.org >
[13:53:30] <TurBoss> me is bored and has to wait for this o end
[13:53:33] <hazzy-m> they put too many format {}
[13:53:34] <hazzy-m> xD
[13:53:37] <hazzy-m> JK
[13:53:42] <hazzy-m> what are you doing?
[13:53:54] <TurBoss> calculating path on blender
[13:54:03] <TurBoss> a blender addon blendercam
[13:54:04] <Lcvette> on the 7i77, does it matter where i grab the 5v and 0v for the encoder power?
[13:55:37] <hazzy-m> are you using field inputs or one of the encoders? feild power is usualy 24v, so not sure how you use those with a 5v encoder ..
[13:55:50] <hazzy-m> they only change state at ~12.5 v

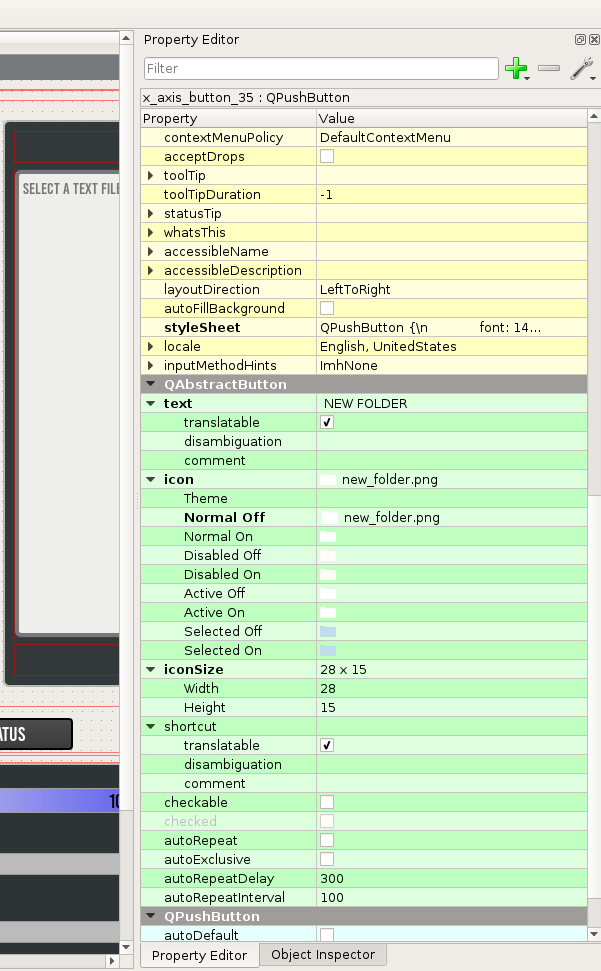

[13:56:44] * Lcvette uploaded an image: image.png (47KB) < https://matrix.org >
[13:57:00] <hazzy-m> sweet!
[13:57:22] <Lcvette> lcvette is trying to navigate it all
[13:57:41] <Lcvette> when lcvette is done his schematic will be so easy for others to follow
[13:59:20] <Lcvette> so does having an mpg button make sense?
[13:59:33] <hazzy-m> yes, you can do that in HAL
[13:59:40] <hazzy-m> that will be easy
[13:59:43] <hazzy-m> very easy
[13:59:50] <Lcvette> so i should add it to the gui?
[13:59:59] <hazzy-m> oh, do you mean in the GUI or on the MPG?
[14:00:11] <TurBoss> hazzy: do you remember the rockhoper graphviz hal thing?
[14:00:29] <TurBoss> that would be cool to have a widget that shows that
[14:00:33] <Lcvette> i dunnop lets discuss where it shold be
[14:01:09] <hazzy-m> TurBoss: Yes, that would be awesome to have

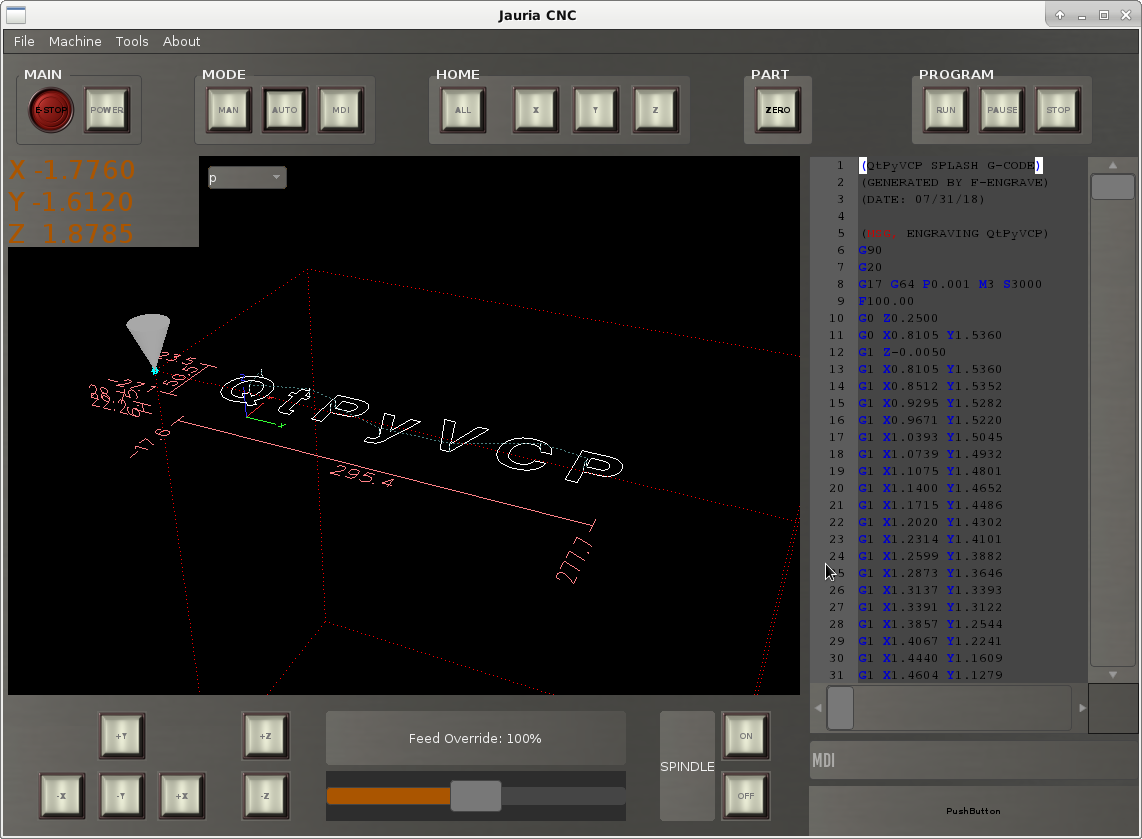

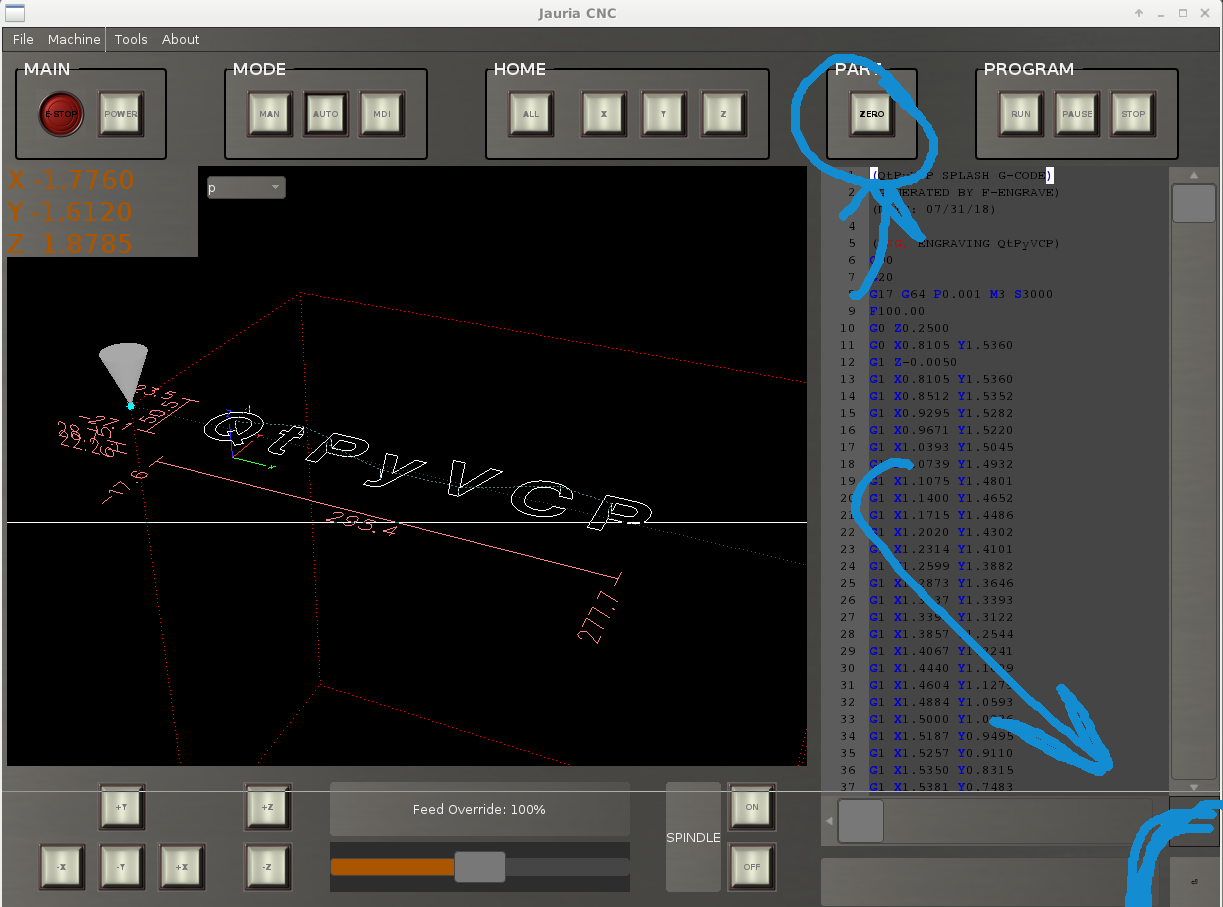

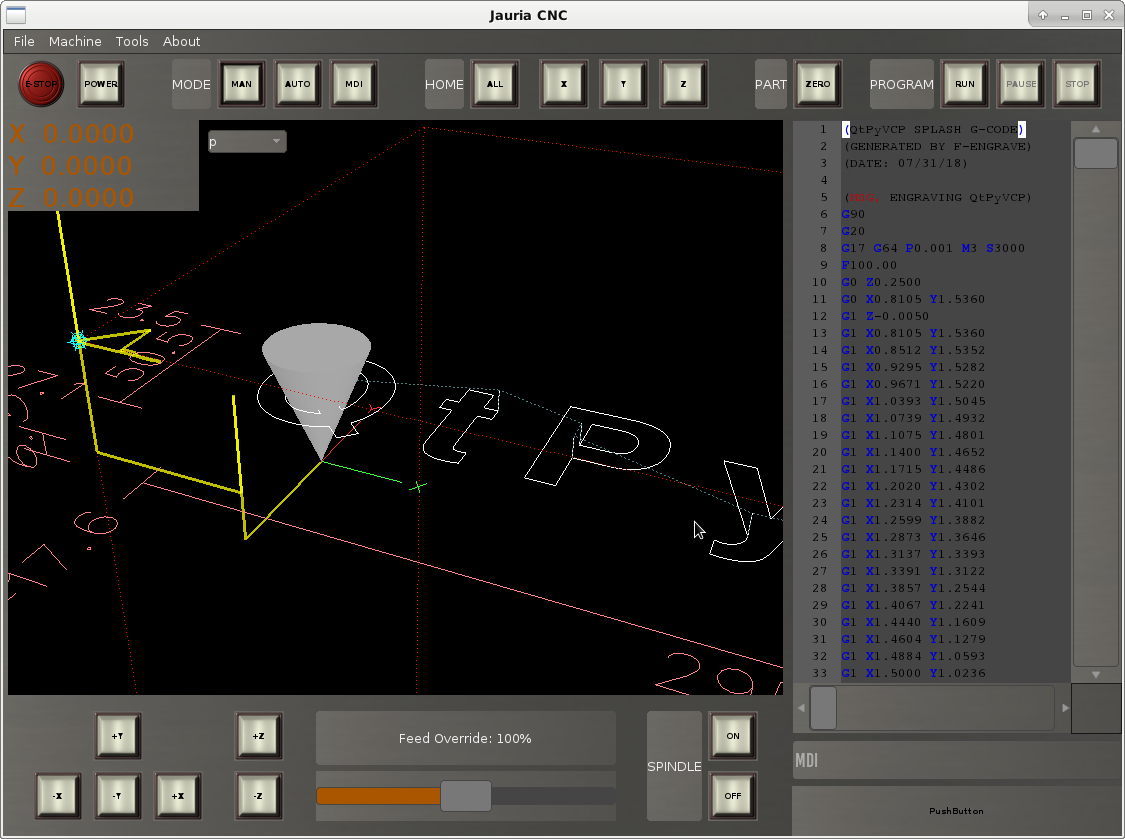

[14:01:14] * hazzy-m uploaded an image: image.png (28KB) < https://matrix.org >
[14:01:21] <hazzy-m> Note JCNC
[14:01:21] <Lcvette> most off the shelf mpg's don't have anything but a simple switch controlling power in to the position switches
[14:01:26] <TurBoss> I see
[14:01:36] <TurBoss> how do you did it?
[14:01:45] <Lcvette> whats jcnc
[14:01:50] <TurBoss> my GUI
[14:01:53] <Lcvette> ah
[14:01:57] <Lcvette> qcontrol?
[14:02:04] <TurBoss> kurts one
[14:03:14] <hazzy-m> TurBoss: https://github.com
[14:03:28] <Lcvette> whats qcontrol look like?
[14:03:46] <hazzy-m> it's just the backplot right now
[14:03:53] <TurBoss> whoa amazing!
[14:04:01] <TurBoss> thank you
[14:04:08] <hazzy-m> np
[14:05:16] <hazzy-m> I need to creat a "show case" section on the website ..
[14:05:26] <TurBoss> cool
[14:06:01] <TurBoss> I'll merge soon
[14:06:10] <TurBoss> asap
[14:06:12] <TurBoss> :P
[14:23:40] <TurBoss> https://gitlab.com
[14:25:31] <TurBoss> looks faster than riot
[14:25:41] <TurBoss> also allows multiple acounts
[14:32:19] <Lcvette> we should switch?
[14:32:26] <TurBoss> no
[14:32:31] <TurBoss> or yes
[14:32:32] <TurBoss> :D
[14:32:36] <TurBoss> if you want to
[14:33:42] * hazzy-m builds spectral
[14:33:52] <TurBoss> there is a flatpack
[14:33:54] <TurBoss> Qml
[14:35:52] <Lcvette> NOOOOO
[14:36:00] <Lcvette> Hazzy builds PB
[14:36:04] <Lcvette> soo close
[14:36:07] <hazzy-m> LOL
[14:36:09] <Lcvette> task
[14:36:12] <Lcvette> stay on task
[14:36:18] <Lcvette> one elephant
[14:36:31] <hazzy-m> you were going to get a Pi3, I can get spectral
[14:36:32] <hazzy-m> xD
[14:36:43] <Lcvette> i was kidding
[14:36:48] <Lcvette> and backed away
[14:36:51] <Lcvette> :D
[14:37:08] <Lcvette> lcvette is working on the mpg so we can test PB
[14:37:17] <hazzy-m> its stuck

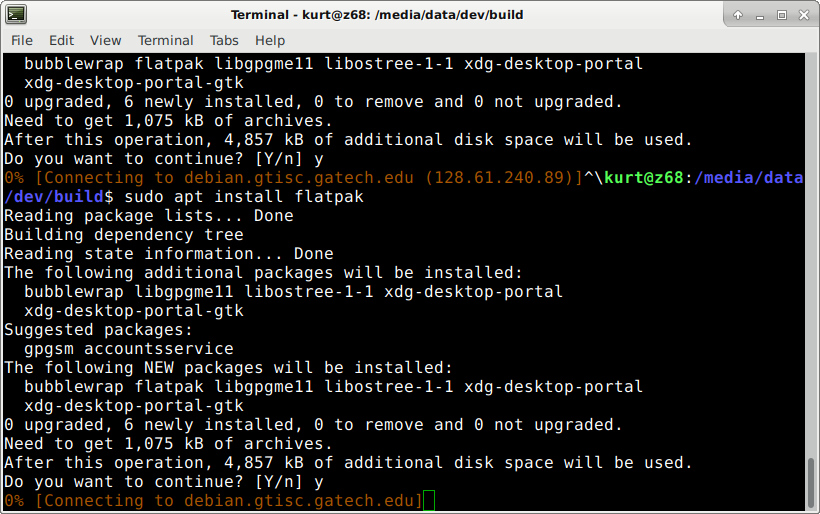

[14:37:22] * hazzy-m uploaded an image: image.png (139KB) < https://matrix.org >
[14:37:22] <Lcvette> only thing left on the machine to load and give a go
[14:37:37] <hazzy-m> I beter go down to gatech and complain
[14:38:10] <hazzy-m> I could drive down there and get it faster at this rate
[14:38:23] <Lcvette> thats a sign
[14:38:27] <Lcvette> leave it be
[14:38:32] <hazzy-m> haha
[14:38:48] <Lcvette> it clearly is NOT faster than riot
[14:39:22] <Lcvette> if they have problems at this stage in the game...walkaway
[14:39:40] <hazzy-m> this is flatpak, not spectral that is slow
[14:39:54] <Lcvette> riot works fine
[14:39:56] <hazzy-m> It would be fun to go down there and ask for the files in person, LOL
[14:40:26] <Lcvette> see we are talking right now
[14:40:34] <Lcvette> its easy to use we finally can get on linuxcnc
[14:40:41] <Lcvette> leave it be
[14:40:53] <Lcvette> there are a million vultures out there hungry for the new gui
[14:44:18] <Lcvette> which is big and which is small x100 or x1
[14:45:50] <Lcvette> private chat time
[14:45:56] <Lcvette> i see how it is
[14:46:05] <Lcvette> :(
[14:46:18] <Lcvette> lol
[14:46:26] <hazzy-m> LOL
[14:46:54] <hazzy-m> I think x100 is means the base step size times 100, so .0001 * 100
[14:47:12] <Lcvette> ok
[14:47:21] <Lcvette> so x100 is bigger
[14:47:40] <Lcvette> makes sense
[14:47:46] <hazzy-m> what is the order on the switch?
[14:47:57] <hazzy-m> usualy is is larger inctrements to smaller
[14:48:08] <hazzy-m> so x100, x10, x1

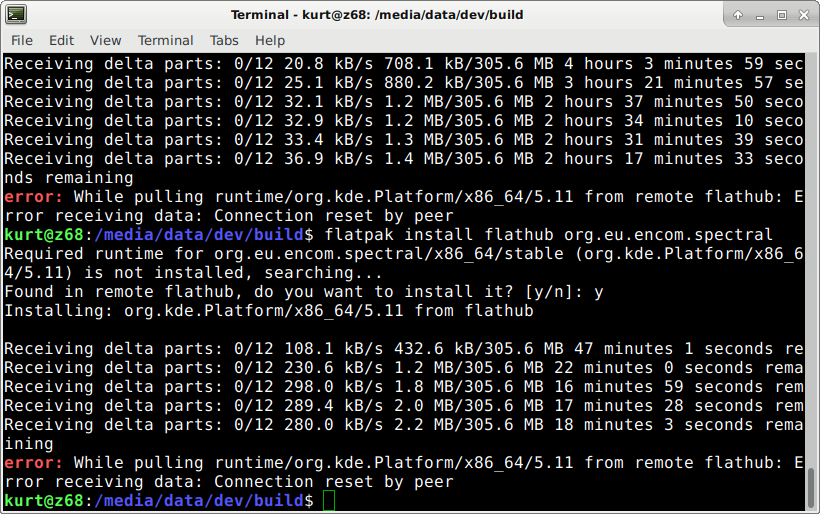

[14:48:44] * hazzy-m uploaded an image: image.png (183KB) < https://matrix.org >
[14:48:45] * hazzy-m gives up
[14:48:51] <Lcvette> X1, X10, X100
[14:49:02] <Lcvette> thats why it confused me
[14:49:03] <hazzy-m> hmmm
[14:49:06] <Lcvette> hurray
[14:49:11] <Lcvette> kick it to the curb
[14:49:20] <Lcvette> chinese
[14:49:31] <hazzy-m> yeah ...
[14:49:33] <Lcvette> bottom to top right to left
[14:49:35] <Lcvette> lol
[14:49:38] <hazzy-m> or maybe I am wrong
[14:49:55] <hazzy-m> wouln't be the firs time
[14:49:56] <hazzy-m> lol
[14:49:56] <Lcvette> they call it magnification
[14:50:03] <Lcvette> i interpereted the same way you did
[14:50:22] <Lcvette> but the layout felt awkward
[14:50:40] <Lcvette> think i will have to make a new plate for it
[14:50:45] <Lcvette> with murican words
[14:50:47] <Lcvette> lol
[14:51:20] <hazzy-m> or learn engrish ..
[14:51:30] <Lcvette> chinglish
[14:52:42] <Lcvette> engrish is what they think they know, chinglish is what actually comes out
[14:53:05] <hazzy-m> haha
[14:53:06] <hazzy-m> I'm gonna merge YAML menus
[14:53:13] <Lcvette> when i speak to my chinese suppliers, its hilarious
[14:53:37] <Lcvette> "I speaka engrish berry well please?"
[14:54:16] <Lcvette> prease*
[14:54:22] <Lcvette> sorry
[14:54:30] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 0320 commits to 03master [+15/-1/±49] 13https://gitlab.com/Hazzy/qtpyvcp/compare/5571c214a8d2566049f8d588490806b159d48efa...11b81d5d3af734ed2ad072db91d69250201f6222
[14:54:31] <Lcvette> they have no ellll in their vocabulary
[14:54:31] <hazzy-m> lol
[14:54:32] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 03fa769b9 - fix recent files provider path in mini config
[14:54:33] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 03269948a - better YAML file templating
[14:54:35] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 032ef3eef - clean up menu loading in main_window.py
[14:54:36] <Not-97e5> [02QtPyVCP] ... and 17 more commits.
[14:54:43] <Lcvette> you did it?
[14:54:46] <Lcvette> hurray!!

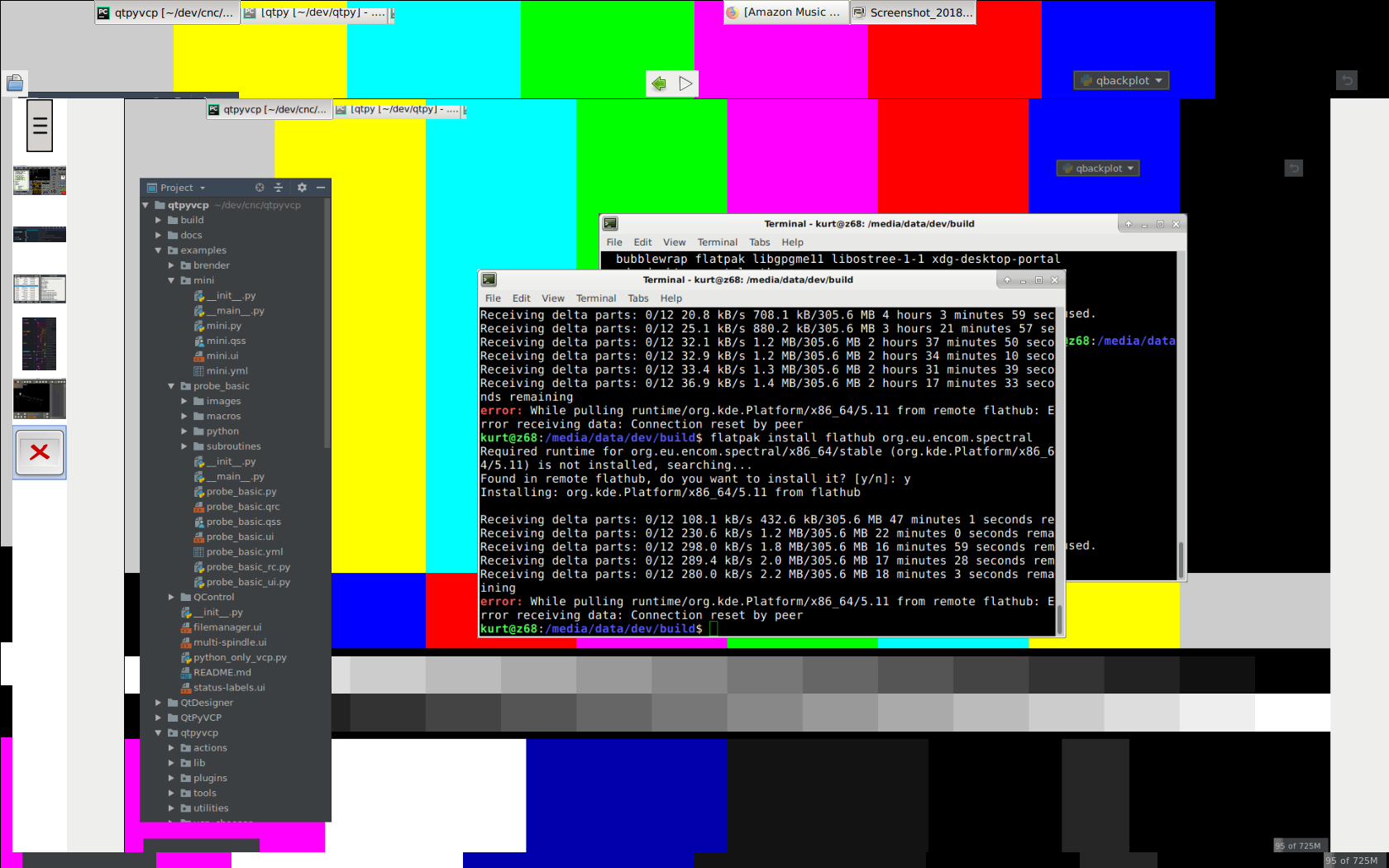

[14:58:15] * hazzy-m uploaded an image: Screenshot_2018-12-18_14-58-00.png (416KB) < https://matrix.org >
[14:58:22] <hazzy-m> that might be bad ...
[15:02:43] <TurBoss> Cool glitch
[15:03:36] <Lcvette> told ya to leave that thing alone
[15:03:39] <Lcvette> way to go turboss
[15:04:13] <Lcvette> you bnroke it
[15:04:15] <Lcvette> lol
[15:09:09] -!- the_zero has joined #hazzy
[15:09:50] <hazzy-m> the_zero: Hello
[15:10:04] <TurBoss> Hi
[15:18:08] -!- the_zero has quit [Quit: Leaving]
[15:24:22] <Lcvette> who is the zero?
[15:24:29] <Lcvette> the_zero
[15:25:15] <hazzy-m> not sure
[15:25:19] <hazzy-m> a very quiet guest
[15:25:55] <Lcvette> ahh
[15:26:02] <Lcvette> did you fix the brokeness?
[15:26:27] <hazzy-m> you pretty colors? feature.
[15:26:28] <hazzy-m> lol
[15:26:34] <hazzy-m> you = the
[15:28:16] <Lcvette> thats some 1980's tv screen after 2am
[15:28:52] <hazzy-m> I've been having video card problems :(
[15:29:37] <hazzy-m> by good one died, so I have an old FirePro V4800 cad workstation card in there and its not doing great
[15:29:57] <hazzy-m> I've had to replace the bearings on the fans and it's just worn out I think
[15:30:01] <jthornton> I installed a fresh copy of debian 9.5 and got the rt preempt kernel going but ran out of time to install linuxcnc and qtpyvcp for development
[15:30:10] <jthornton> this morning
[15:30:28] <hazzy-m> jthornton: Fantastic!
[15:30:51] <hazzy-m> did you install from the stretch ISO?
[15:30:55] <jthornton> hopefully one day get it running on this PC with linux mint 18.3
[15:31:35] <jthornton> no I just did a non-free install then in synaptic selected the latest rt kernel and installed that
[15:31:49] <jthornton> that part in debian is super easy
[15:31:56] <hazzy-m> I did not realize it was that easy, nice
[15:32:26] <hazzy-m> are you going to install LCNC from the build bot or rip?
[15:32:45] <jthornton> yea just search for linux-image and pick the latest rt one
[15:33:06] <jthornton> hmm I usually do it from build bot for master
[15:33:11] <Lcvette> debian is up to 9.5 now?
[15:33:21] <Lcvette> its gonna catch windows
[15:33:24] <Lcvette> lol
[15:33:26] <jthornton> that's what my dvd said lol
[15:33:30] <hazzy-m> lol
[15:33:31] <Lcvette> debian 10
[15:34:30] <jthornton> well back from the bike ride and paying a ginormas tax bill time for a stiff drink lol
[15:34:47] <Lcvette> ouch
[16:26:23] <jthornton> finally got the jet lathe apart and I think I have enough parts to rebuild the reese drive except for one key which I can make
[16:27:30] <hazzy-m> is that the rotating head jet? can spind the head arond for outboard turning?
[16:52:23] <TurBoss> yo is back
[16:54:00] <hazzy-m> TurBoss: Hello
[16:54:29] <TurBoss> sup
[16:54:41] -!- Roguish has quit [Ping timeout: 250 seconds]
[16:55:59] -!- Roguish__desk has quit [Ping timeout: 250 seconds]
[17:00:30] <TurBoss> I had not merged your pr yet
[17:00:37] <TurBoss> as soon as I arraive home
[17:05:54] <hazzy-m> TurBoss: That is good, I'm still fixing things :)
[17:06:07] <TurBoss> wich things?

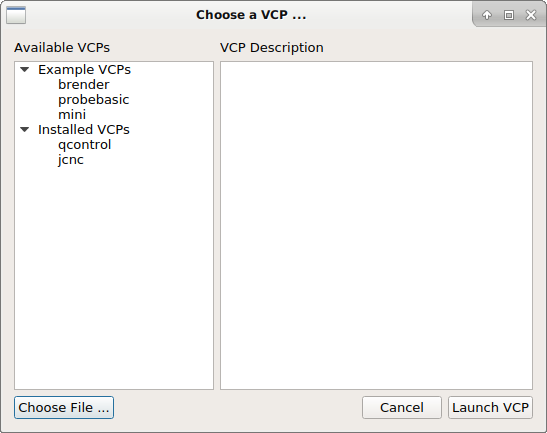

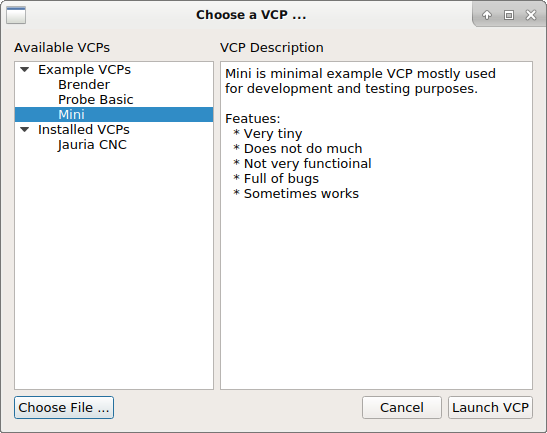

[17:07:40] <hazzy-m> I changed some things with the VCPChooser that broke the other VCPs
[17:07:51] <TurBoss> oh great
[17:07:57] <hazzy-m> so I added more commets to fix jcnc
[17:09:00] <TurBoss> i saw
[17:09:02] -!- Roguish has joined #hazzy
[17:09:21] <TurBoss> hazzy have you built spectral ?
[17:09:40] <hazzy-m> no, Lcvette told me not to
[17:09:43] <hazzy-m> LOL
[17:09:48] <TurBoss> oh great
[17:09:52] <TurBoss> don't listen to him
[17:10:05] <hazzy-m> actualy I tried, but I could not install flatpak or qmake
[17:10:08] <hazzy-m> :(
[17:10:14] <TurBoss> oh ok
[17:10:42] <hazzy-m> I think my interent is soo slow to download
[17:10:52] <TurBoss> :O

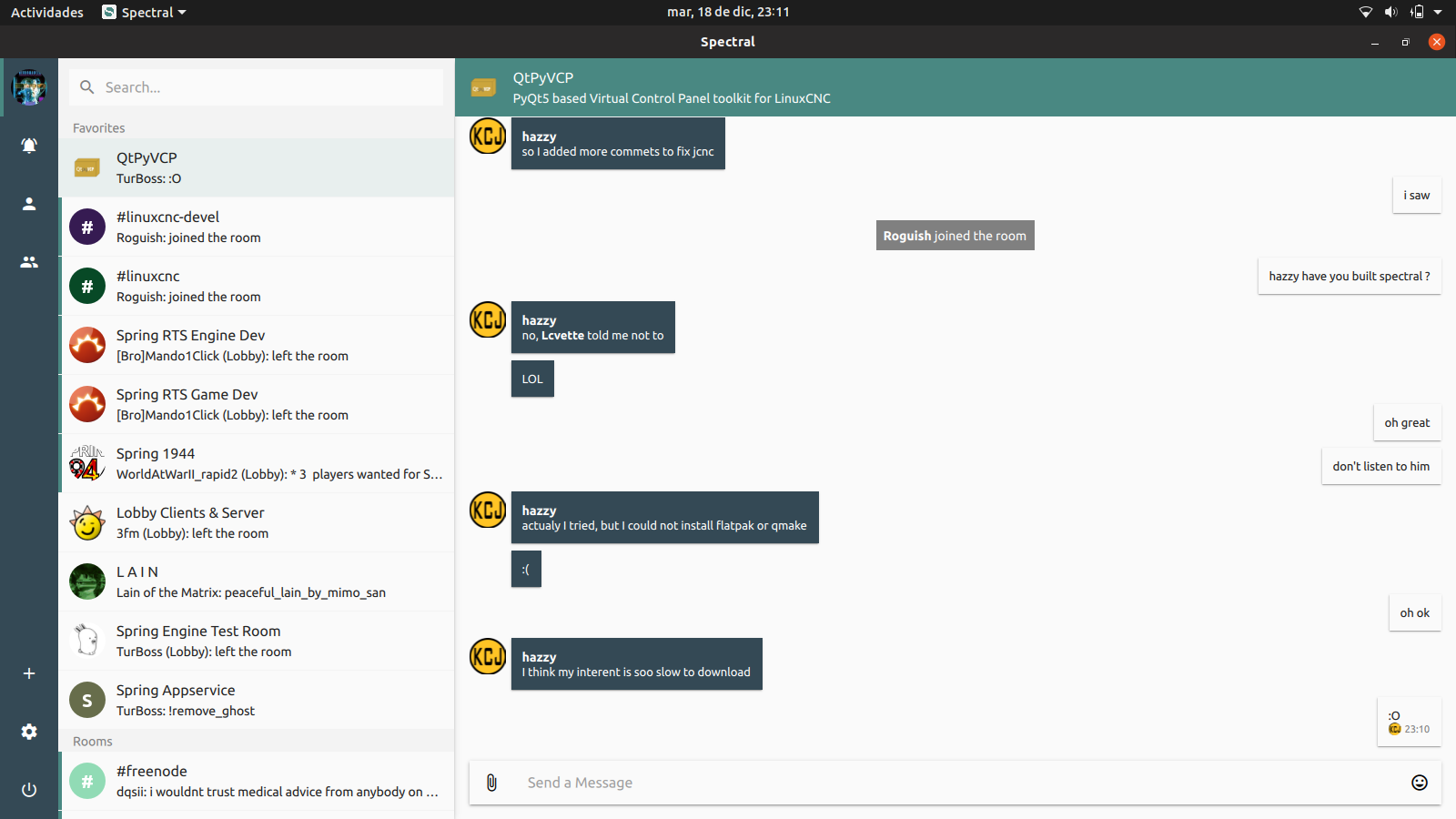

[17:11:23] * TurBoss uploaded an image: Captura de pantalla de 2018-12-18 23-11-09.png < https://matrix.org >
[17:11:23] <hazzy-m> it keps saying connection reset by peer
[17:11:37] <TurBoss> :D
[17:11:39] <hazzy-m> nice!
[17:11:42] <hazzy-m> it looks good
[17:11:51] <TurBoss> its made with Qml
[17:11:58] <hazzy-m> does it have spellchecking?
[17:12:04] * hazzy-m needs that
[17:12:09] <TurBoss> I think no
[17:12:22] <TurBoss> da
[17:12:25] <hazzy-m> ok, riot does not either
[17:13:05] -!- Roguish_desk has joined #hazzy
[17:24:11] <JT-Shop2> hazzy-m: yes it's the rotating head lathe 14" x 42"
[17:25:20] <hazzy-m> did the die cast cones in the reeves drive brake? Ive had repare a couple of those ...
[17:29:52] * hazzy-m uploaded an image: image.png (45KB) < https://matrix.org >
[17:30:32] <Lcvette> leave hazzy alone turboss! you're being a bad influence..lol
[17:30:50] <Lcvette> :D
[17:31:24] <TurBoss> python code and rock &roll
[17:31:53] -!- JT-Shop has quit [Remote host closed the connection]
[17:32:53] -!- JT-Shop has joined #hazzy
[17:35:03] <jthornton> the the reeves seems simple enough but lacking stuff like plain bearings for the sliding half so it won't wear out so fast
[17:35:30] <jthornton> I have to take apart the motor end too it doesn't seem exactly quite right
[17:49:18] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 032 commits to 03master [+0/-0/±5] 13https://gitlab.com/Hazzy/qtpyvcp/compare/11b81d5d3af734ed2ad072db91d69250201f6222...5e86b3a20a99b185162b83cbfa26b5ebe86ae2bf
[17:49:20] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 038d34258 - add config file to env inside vcp run method
[17:49:21] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 035e86b3a - Show VCP description in chooser
[18:21:21] <Lcvette> hurray!!
[18:21:27] <Lcvette> you did it!
[18:54:05] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 031 commit to 03master [+0/-0/±1] 13https://gitlab.com/Hazzy/qtpyvcp/compare/5e86b3a20a99b185162b83cbfa26b5ebe86ae2bf...13c35bc5b3017fa32df654c04e1a8c42dbc48321
[18:54:07] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 0313c35bc - mini: fix spelling in description
[18:58:36] <jthornton> wow Kurt is on a roll
[18:59:04] <Lcvette> killin it!
[18:59:04] * hazzy-m has a hard task master
[18:59:09] <hazzy-m> :D
[18:59:25] <Lcvette> he is not asking any more of you than what he is willing to put in
[18:59:30] <Lcvette> ;)
[18:59:45] <hazzy-m> haha, true!
[18:59:50] <Lcvette> and happily stays with you to help where he can
[19:05:58] <TurBoss> cool descriptions in vcp_chooser
[19:07:53] <TurBoss> supports MD?
[19:44:18] * Lcvette posted a file: XK7130 Main Schematic 7i76 7i77.pdf (84KB) < https://matrix.org >
[19:44:30] <Lcvette> schematic updated!
[19:44:32] <hazzy-m> TurBoss: No, but it might should
[19:44:51] <Lcvette> mpg wired on paper
[19:45:03] <Lcvette> now need to modify it like you show hazzy
[19:45:05] <hazzy-m> Lcvette: Looks very nice! Remind me what you make that in
[19:45:20] <Lcvette> excel and draftsight
[19:45:42] <Lcvette> its tedious
[19:46:09] <Lcvette> but i love that i can turn off layers when im wiring
[19:46:22] <Lcvette> to make tracing things super easy to follow
[19:47:26] <Lcvette> i have a hard rul i never add anything to a machine without first adding it to the schematic
[19:48:11] <Lcvette> i used to when i was younger in my hasty days and then i would go back and look at it and it would take me hours to figure out what the hell i had done
[19:48:11] <Lcvette> lol
[19:59:21] <Lcvette> Hazzy, i make my template in excel and lay everything out and format it there, then i import the excel file and select link to link the spreadsheet in the draftsight drawing file. that way it stays up to date as i add or edit the spreadsheet
[20:00:05] * TurBoss uploaded an image: image.png (22KB) < https://matrix.org >
[20:00:21] <Lcvette> then i use draftsight and setup my layers for the wire runs and start connecting everything
[20:00:30] <Lcvette> nice turboss!
[20:00:42] <TurBoss> finally
[20:08:39] <Lcvette> do you see any issue with using a DB15 cable 15' length between the mesa card and the existing mpg cable?
[20:08:52] <Lcvette> trying to figure the easiest way to get the wiring back to the cabinet
[20:09:33] <Lcvette> https://www.amazon.com
[20:10:18] <Lcvette> figured i could put this on the end of the mpg cable and then just run the db15 back and break it out with another one of these in the cabinet
[20:11:22] <hazzy-m> I think that is getting close to the max comfortable length
[20:11:26] <hazzy-m> maybe ask pcw
[20:14:24] <Lcvette> ok, wasn't sure if the cable was the culprit or if it was the system of how it was being used that made the elngth the issue
[20:14:43] <Lcvette> i could use cat5 ables too with RJ45 breakouts I suppose
[20:15:12] <hazzy-m> TurBoss: Thanks for merging!
[20:15:23] <TurBoss> doesn't work xD
[20:16:22] <TurBoss> ```
[20:16:22] <TurBoss> [qtpyvcp.vcp_launcher][CRITICAL] Failed to get object by reference: jcnc.jcnc:MainWindow (vcp_launcher.py:118)
[20:16:23] <TurBoss> ```
[20:16:48] <Lcvette> https://www.amazon.com
[20:16:50] <TurBoss> I need to run the setup?
[20:17:16] <TurBoss> lol
[20:18:41] <TurBoss> ok it does work!
[20:19:49] <hazzy-m> hmm, yes, I guess you have to run setup
[20:20:01] <hazzy-m> package.module:class
[20:20:14] <hazzy-m> so I guess if you don't run setup there is no package
[20:20:17] <hazzy-m> that might not be good
[20:21:49] <hazzy-m> I am adding the package dir to the PYTHONPATH when importing from the yaml file, maybe I need to add the next dir up instead
[20:22:11] <TurBoss> duno
[20:22:23] <TurBoss> backplot works!
[20:22:29] <TurBoss> does a reload
[20:22:30] <hazzy-m> hurray!
[20:22:34] <TurBoss> hurray!
[20:23:23] <TurBoss> hmmmm
[20:23:28] <TurBoss> it has an offset
[20:24:15] * TurBoss uploaded an image: image.png (251KB) < https://matrix.org >
[20:24:31] <TurBoss> origin is ok
[20:25:51] * TurBoss uploaded an image: image.png (255KB) < https://matrix.org >
[20:26:25] <TurBoss> ipath is shown wrong but real path is followed correctly
[20:26:43] * TurBoss uploaded an image: image.png (266KB) < https://matrix.org >
[20:27:55] <Lcvette> hurray

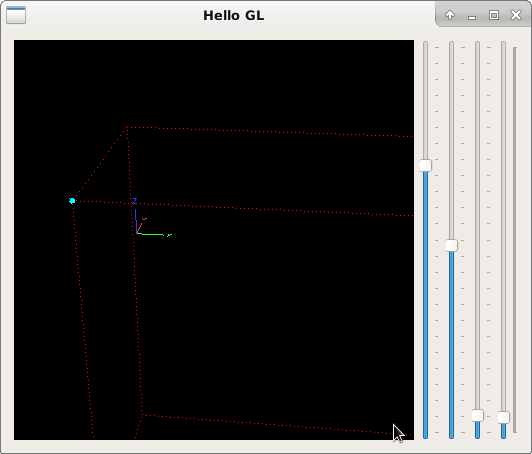

[20:51:05] * TurBoss uploaded an image: image.png (14KB) < https://matrix.org >
[20:51:41] <hazzy-m> oh, that is not good :(
[20:51:50] <TurBoss> no its ok
[20:52:04] <TurBoss> just ran qbackplot.py
[20:52:25] <hazzy-m> I meant the offset is not good
[20:52:29] <TurBoss> ok
[20:52:37] <TurBoss> I'm reading qbackplot
[20:52:45] <TurBoss> should be there?¿
[20:52:46] <hazzy-m> it is a huge mess
[20:52:53] <hazzy-m> yes
[20:53:02] <hazzy-m> there are also some files in lib
[20:53:22] <hazzy-m> It needs to be all combined into one class
[20:53:40] <TurBoss> hmmm
[20:53:42] <hazzy-m> it is very strange they way the all inherit each other
[20:53:46] <TurBoss> glnav and glcanon
[20:53:52] <hazzy-m> yes
[20:54:19] <TurBoss> I'll try to merge all
[20:54:24] <TurBoss> into a single widget
[20:54:29] <TurBoss> in a folder
[20:54:53] <TurBoss> like the atc
[20:55:00] <hazzy-m> I tried using super, but nav can't be an python object or nothing works
[20:55:06] <hazzy-m> that woud be great!
[20:55:08] <hazzy-m> ty
[21:02:47] <TurBoss> http://dpaste.com
[21:02:50] <TurBoss> any idea?
[21:03:05] <TurBoss> just moved gcode_backplot.py to a folder
[21:06:24] <TurBoss> ```
[21:06:25] <TurBoss> AttributeError: 'module' object has no attribute 'GcodeBackplot'
[21:06:26] <TurBoss> ```
[21:06:29] <hazzy-m> the name of the GcodeBackplot widget must have changed
[21:06:41] <hazzy-m> you may need to update it in the UI files
[21:06:51] <TurBoss> oh
[21:06:53] <TurBoss> no
[21:06:56] <hazzy-m> that is an error in the UI loader
[21:06:59] <TurBoss> isn't the same?
[21:07:27] <TurBoss> designer works!
[21:08:01] <TurBoss> ok got something
[21:08:03] <hazzy-m> yes, if the name is wronge designer will work ok but you won't be able to load the UI
[21:08:12] <TurBoss> new error
[21:10:24] <TurBoss> ok fixed
[21:10:30] <TurBoss> new branch in the wild
[21:11:17] <Not-97e5> [02QtPyVCP] 07TurBoss created branch 03GCode3D
[21:11:25] <Not-97e5> [02QtPyVCP] 07TurBoss created branch 03GCode3D
[21:11:35] <hazzy-m> checking
[21:11:43] <TurBoss> now all the crap is packed
[21:16:02] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 031 commit to 03master [+0/-0/±1] 13https://gitlab.com/Hazzy/qtpyvcp/compare/13c35bc5b3017fa32df654c04e1a8c42dbc48321...2864031929f41d39a67bacca786a034b8425c4a0
[21:16:04] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 032864031 - vcp chooser: don't need to run jinja templates in configs
[21:17:54] <TurBoss> backplot worked
[21:17:57] <TurBoss> now it doesn't
[21:17:58] <TurBoss> :(
[21:18:18] <TurBoss> works for you ?
[21:18:57] <hazzy-m> fixed
[21:19:02] <TurBoss> yeS?
[21:19:20] * hazzy-m uploaded an image: image.png (143KB) < https://matrix.org >
[21:19:26] <TurBoss> oh good!
[21:20:20] * hazzy-m sent a long message: < https://matrix.org >
[21:20:38] <hazzy-m> that would have had to change to
[21:20:44] <TurBoss> :(
[21:20:49] <hazzy-m> <header>qtpyvcp.widgets.display_widgets.gcode_backplot.gcode_backplot</header>
[21:21:09] <TurBoss> can I use init?
[21:21:14] <hazzy-m> so instead of changing all the UIs I just imported GcodeBackplot in the init.py
[21:21:28] <TurBoss> oh great!
[21:21:37] <hazzy-m> I pushed the fix
[21:22:02] * TurBoss sent a long message: < https://matrix.org >
[21:22:09] <TurBoss> is duplicated on brender
[21:22:23] <hazzy-m> thanks!
[21:25:22] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 031 commit to 03master [+0/-0/±1] 13https://gitlab.com/Hazzy/qtpyvcp/compare/2864031929f41d39a67bacca786a034b8425c4a0...3847040b159dd602d0a029da0b4c4a6bdc60e2d9
[21:25:23] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 033847040 - brender: combine duplicate GcodeBackplot style classes
[21:28:53] <TurBoss> you fixed backplot?
[21:29:02] <TurBoss> feel fre to push :D
[21:29:09] <hazzy-m> I did
[21:29:19] <hazzy-m> is it not comming thru?
[21:29:27] <TurBoss> to GCode3D branch?
[21:29:35] <hazzy-m> yes
[21:29:39] * hazzy-m internet is bad
[21:29:39] <TurBoss> nono
[21:29:42] <TurBoss> I can't see
[21:29:45] <TurBoss> booo
[21:29:53] <TurBoss> hack some satelites
[21:30:10] <hazzy-m> lol
[21:30:16] <hazzy-m> yeah, it had faild
[21:30:16] <hazzy-m> sorry
[21:30:28] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson pushed 031 commit to 03GCode3D [+0/-0/±1] 13https://gitlab.com/Hazzy/qtpyvcp/compare/2c2d963ef21c085f5703d08797b152b9415bda4e...43e3fea4111ac24bd20e7d35bcba2d2f1ae5e032
[21:30:29] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 0343e3fea - import GcodeBackplot in __init__.py so old UI import paths work
[21:30:34] <hazzy-m> finaly
[21:30:50] <TurBoss> ty
[21:31:08] <TurBoss> merge to master=
[21:31:10] <TurBoss> ?
[21:31:13] <TurBoss> seems ok
[21:31:14] <hazzy-m> yes
[21:31:23] <hazzy-m> wan't me to merge?
[21:31:28] <TurBoss> i'm in
[21:31:33] <hazzy-m> ok
[21:31:34] <hazzy-m> ty
[21:31:42] <Not-97e5> [02QtPyVCP] 07TurBoss pushed 033 commits to 03master [+10/-0/±3] 13https://gitlab.com/Hazzy/qtpyvcp/compare/3847040b159dd602d0a029da0b4c4a6bdc60e2d9...a49f4d78f14fc13981d4ab8965d9bb595f77161f
[21:31:44] <Not-97e5> [02QtPyVCP] 07TurBoss 032c2d963 - mode all the related stuff to its own module
[21:31:45] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson 0343e3fea - import GcodeBackplot in __init__.py so old UI import paths work
[21:31:47] <Not-97e5> [02QtPyVCP] 07TurBoss 03a49f4d7 - Merge branch 'GCode3D'
[21:32:05] <Not-97e5> [02QtPyVCP] 07TurBoss deleted branch 03GCode3D
[21:32:25] <TurBoss> i should have write permissions on kcjengr?
[21:32:33] <hazzy-m> yes
[21:32:38] <hazzy-m> I think so
[21:32:43] <TurBoss> I don't
[21:32:49] <hazzy-m> checking
[21:32:52] <TurBoss> ty
[21:33:23] <TurBoss> sent you a request
[21:33:27] <hazzy-m> you are admin ..
[21:34:00] <hazzy-m> ok, you should be in
[21:34:08] <TurBoss> great!
[21:34:41] <TurBoss> ok working
[21:34:54] <TurBoss> now that the gl stuff is all in one side

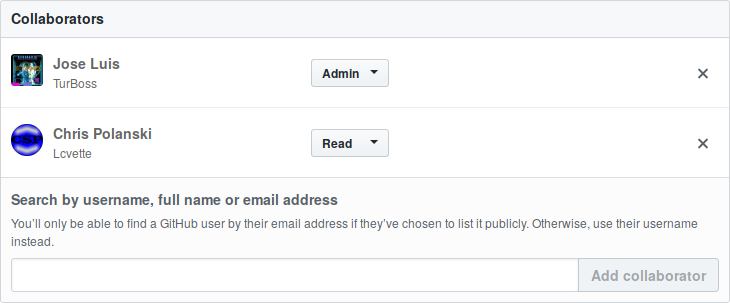

[21:34:54] * hazzy-m uploaded an image: image.png (30KB) < https://matrix.org >
[21:35:14] <TurBoss> hurraY!
[21:35:15] <hazzy-m> don't know what admin means. it did not give you accsess to the repo ..
[21:35:34] <TurBoss> but did you saw my request?
[21:35:47] <hazzy-m> yes, but you've been admin for days
[21:36:07] <Not-97e5> [02QtPyVCP] 07TurBoss pushed 031 commit to 03NewATC [+0/-0/±2] 13https://gitlab.com/Hazzy/qtpyvcp/compare/f2dc039afa1416f433d97dd43ef3cb3c52577276...60d3cdfeaf5c5f3f17fa65597470c94df2613d2f
[21:36:09] <Not-97e5> [02QtPyVCP] 07TurBoss 0360d3cdf - some test with animations
[21:36:19] <Not-97e5> [02QtPyVCP] 07TurBoss created branch 03NewATC
[21:36:21] <hazzy-m> hurray!
[21:36:48] <TurBoss> is the yaml menus branch finished?
[21:36:57] <TurBoss> its not merged
[21:37:00] <hazzy-m> yes, it is merged
[21:37:18] <TurBoss> hmmmm
[21:37:19] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson deleted branch 03YAMLMenus
[21:37:24] <TurBoss> eco
[21:40:22] <TurBoss> how can I add a border to a group of buttons?
[21:40:43] <hazzy-m> I think you have to use a frame
[21:40:58] <hazzy-m> put them all in a frame and style the frame
[21:41:04] <TurBoss> groupbox
[21:41:12] <hazzy-m> or that
[21:41:20] <TurBoss> I'll try
[21:42:02] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson deleted branch 03offsets_dialog
[21:44:38] <Not-97e5> [02QtPyVCP] 07Kurt Jacobson deleted branch 03ToolTableModel

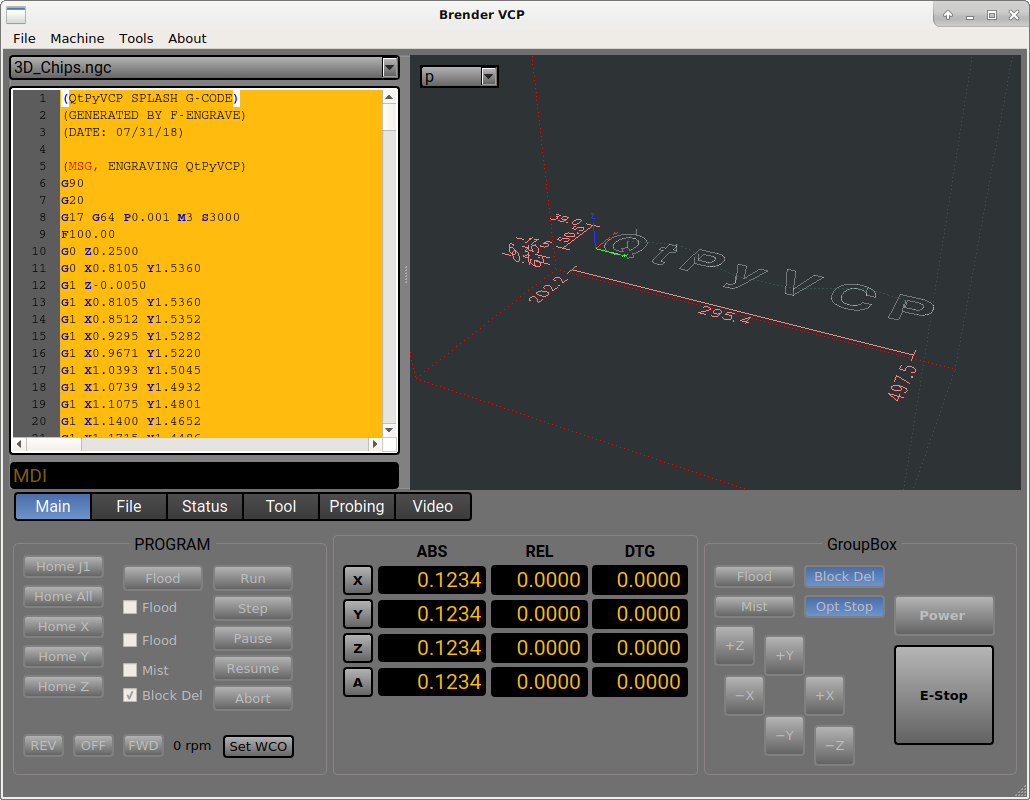

[21:47:29] * TurBoss uploaded an image: image.png (255KB) < https://matrix.org >
[21:48:14] <hazzy-m> looks great!
[21:48:20] <TurBoss> :)
[21:48:32] <hazzy-m> MDI, hurray!
[21:49:18] <hazzy-m> in MDI mode the code view could show the MDI hystory
[21:53:42] <TurBoss> oh
[21:53:43] <TurBoss> cool
[22:03:32] <TurBoss> I can't put an image on push buttons :(
[22:03:57] <hazzy-m> Lcvette: does it, I don't know how
[22:04:16] <TurBoss> sek
[22:04:20] <TurBoss> i'll fix
[22:06:05] <TurBoss> python setup.py install
[22:06:16] <TurBoss> reverted my changes to the ui file
[22:06:30] <hazzy-m> oh, I'm so sorry!
[22:06:36] <TurBoss> booo you mad
[22:06:39] <TurBoss> :D
[22:07:03] <hazzy-m> I used the most recent master, but maybe you had not pushed
[22:07:13] <TurBoss> where?
[22:07:22] <hazzy-m> when I made the changed
[22:07:29] <TurBoss> nono
[22:07:30] <hazzy-m> changes*
[22:07:35] <TurBoss> i just made changes
[22:07:40] <TurBoss> tryed them
[22:07:51] <TurBoss> but python setup install on my vcp
[22:07:55] <TurBoss> duno
[22:07:58] <TurBoss> sek
[22:08:13] <hazzy-m> you should use `pip install -e .` for dev
[22:08:33] <hazzy-m> then it uses the files from the git checkout instead of the installed ones
[22:10:26] <TurBoss> ImportError: No module named jcnc
[22:10:59] <hazzy-m> how are you running it?
[22:11:28] <hazzy-m> I do `linuxcnc sim/xyz.in jcnc --log-level DEBUG`
[22:11:29] <TurBoss> from the vcpchooser
[22:11:42] <hazzy-m> ok, that should work too
[22:11:51] <hazzy-m> hmmm
[22:11:58] <TurBoss> nope
[22:12:50] <hazzy-m> it works here both ways
[22:13:10] <hazzy-m> try `pip uninstall jcnc`
[22:13:21] <hazzy-m> and then reinstall with `pip install -e .`
[22:13:33] <TurBoss> no
[22:13:36] <TurBoss> same error
[22:13:41] <TurBoss> jcnc
[22:14:18] <TurBoss> $ jcnc --ini sim/xyz.ini
[22:14:45] * TurBoss sent a long message: < https://matrix.org >
[22:15:12] <TurBoss> its broken too :P
[22:15:35] <hazzy-m> I'm confused
[22:15:45] <hazzy-m> it works here on both my dev machine installed with -e
[22:15:57] <hazzy-m> and my shop machine installed with pip git+...
[22:16:02] <TurBoss> python setup.py install --user worked before
[22:16:28] <TurBoss> I'll try with the mesa computer dev thing
[22:17:16] <hazzy-m> can you import jcnc from an interactive python terminal ?
[22:18:02] * hazzy-m uploaded an image: image.png (47KB) < https://matrix.org >
[22:19:03] <TurBoss> yes!
[22:19:11] <hazzy-m> hmmm
[22:19:37] <TurBoss> http://dpaste.com
[22:19:40] <TurBoss> the full output
[22:20:24] <TurBoss> http://dpaste.com
[22:20:34] <TurBoss> with debug log
[22:22:02] <hazzy-m> thanks
[22:22:33] <hazzy-m> can you check if there are any jcnc.pyc files left over in the main jcnc dir?
[22:24:15] <TurBoss> oh ok
[22:24:46] <TurBoss> removed
[22:25:59] <TurBoss> move a single motor is run qtpyvco on real hardware
[22:26:01] <TurBoss> ?
[22:26:52] <hazzy-m> I think that counts
[22:27:01] <TurBoss> hurray!
[22:27:06] <TurBoss> hmmm
[22:27:13] <TurBoss> I move jcnc.py to main.py
[22:27:16] <hazzy-m> you did it?
[22:27:18] <TurBoss> but worked just fine
[22:27:24] <hazzy-m> hurray!
[22:27:26] <TurBoss> now its broken
[22:27:31] <hazzy-m> :(
[22:27:37] <TurBoss> :=|
[22:28:12] <hazzy-m> can you push what you have so far so I can take a look?
[22:28:21] <TurBoss> yes
[22:28:29] <hazzy-m> thanks
[22:28:57] <TurBoss> done
[22:29:55] <TurBoss> ok found it
[22:29:57] <TurBoss> my fault
[22:30:17] <TurBoss> but the group box is not there
[22:30:19] <TurBoss> hmmm
[22:30:26] <TurBoss> still the old version
[22:31:06] <TurBoss> just pushed the fix
[22:32:27] <hazzy-m> hurray!
[22:32:48] <TurBoss> but i don't see the QGroupBox I have added
[22:33:01] <TurBoss> is like there is an old version in the python setup
[22:34:06] <hazzy-m> its not there
[22:34:42] <TurBoss> can you see a commit named use groupbox?
[22:34:58] <hazzy-m> yes
[22:35:10] <TurBoss> and they are shown if you run the vcp?
[22:35:45] <hazzy-m> no
[22:36:13] <hazzy-m> you did not change anything with 9342625bcda86988ed8a6644fd309b3b52249263
[22:36:31] <TurBoss> oh fu
[22:36:32] <TurBoss> :D
[22:36:32] <hazzy-m> you just renamed the window.ui
[22:36:37] <TurBoss> oh ok
[22:36:39] <TurBoss> hehehehehe
[22:36:42] <hazzy-m> :D
[22:36:44] <TurBoss> then I lost the chanhes
[22:36:44] <TurBoss> :D
[22:36:50] <TurBoss> sorry
[22:36:51] <TurBoss> :
[22:37:06] <hazzy-m> np
[22:46:17] <Lcvette> lcvette is back
[22:46:28] <Lcvette> just caught up
[22:46:36] <Lcvette> you need images on buttons with text turboss?
[22:46:39] <Lcvette> i know that one!
[22:46:43] <Lcvette> hurray!
[22:46:53] <TurBoss> i do
[22:47:12] <Lcvette> lcvette just bought a new pendant
[22:47:22] <TurBoss> hurray!
[22:47:28] <Lcvette> wireless
[22:47:42] <Lcvette> that wires into mesa
[22:53:44] <Lcvette> which buttons you need image in?
[22:53:50] <TurBoss> no one
[22:53:55] <TurBoss> oh
[22:53:56] <TurBoss> yes
[22:53:58] <TurBoss> sorry
[22:54:03] <TurBoss> QPushButton
[22:54:13] <TurBoss> qss does not apply
[22:54:47] <Lcvette> ?
[22:54:58] <Lcvette> restate
[22:55:01] <Lcvette> you confused me
[22:56:49] * Lcvette uploaded an image: image.png (83KB) < https://matrix.org >
[22:57:05] <Lcvette> you see icon
[22:57:17] <Lcvette> you do the same thing, choose resource
[22:57:48] <Lcvette> you must format the omage first forn .png and i recommend you size it close to then size you need
[22:58:07] <Lcvette> i do it in the gimp
[22:58:26] <Lcvette> then you need to same it in your image file filder
[22:58:49] <Lcvette> and add it to your .qrc folder
[22:58:54] <Lcvette> then you need to compile it
[22:59:02] <Lcvette> then you can choose it from resource in the designer
[23:00:47] <Lcvette> so when i say size it for the size you need, get the size of your button in pix for x and y and make the button the same dimensional scale so when you size it it will fit inside the button area
[23:00:55] <Lcvette> follow?
[23:01:47] <TurBoss> sek
[23:02:28] <Lcvette> if you want to add text to the button also, you can use the LayoutDirection in property manager to determin if text is on the left or right side of the button
[23:02:49] <Lcvette> then use the text line and spaces to getthe alignment correct
[23:03:35] * TurBoss uploaded an image: image.png (251KB) < https://matrix.org >
[23:03:46] <TurBoss> all the others work but this one no
[23:05:02] <Lcvette> is it compiled?
[23:05:36] <Lcvette> and correctly spelled in the image file and qrc file
[23:05:40] <Lcvette> they must match
[23:08:08] <Lcvette> i have made a typo that cause similar issue
[23:27:17] <Lcvette> ?
[23:27:22] <Lcvette> you leave me hanging
[23:43:11] <Lcvette> doooood
[23:43:12] <Lcvette> turboss
[23:43:15] <Lcvette> did you fix it?
[23:50:27] <Lcvette> hazzy, i solved the wire length issue
[23:50:47] <hazzy-m> what did you come up with?
[23:51:00] * Lcvette uploaded an image: image.png (417KB) < https://matrix.org >
[23:51:05] <Lcvette> wireless
[23:51:08] <Lcvette> lol
[23:51:27] <hazzy-m> LOL
[23:51:32] <hazzy-m> that is one solution
[23:51:35] <Lcvette> the kind that wires into the mesa
[23:51:45] <Lcvette> not usb
[23:51:52] <Lcvette> wires same as a wired unit
[23:51:53] <hazzy-m> that looks real good
[23:52:04] <hazzy-m> how much are those?
[23:52:12] <Lcvette> yeah i was gonna have to buy a poendant for the lathe anyhow
[23:52:22] <Lcvette> $227n on alie express
[23:52:51] <Lcvette> but i beat up the girl pretty hard and got it for $145 plus $30 dhl express shipping
[23:53:17] <hazzy-m> sweet!
[23:53:29] <Lcvette> promised to youtube review it and add it to my machine build thread on the zone
[23:53:58] <Lcvette> but i told her i would review it good bad or indifferent
[23:54:31] <hazzy-m> yeah, it should be good for that price, thats not cheapy
[23:54:34] <Lcvette> i like wireless things
[23:55:08] <Lcvette> not these are geared for fanuc and fagor type controllers and machines so i would imagine they are pretty decent
[23:55:33] <Lcvette> and they are 3rd generstion wireless versions so should be pretty well shook out
[23:56:50] <Lcvette> my one buddy who has a the second generation unit (its not pretty) but he says it is awesome with no lag that he can feel or tell
[23:57:13] <Lcvette> his only gripe was batteries
[23:57:18] <hazzy-m> thats the only thing I'd be concerned about, good
[23:57:38] <Lcvette> it has an alarm
[23:57:49] <Lcvette> iot will let ya know when its time to replace them
[23:57:59] <Lcvette> but he said it like every 3 weeks
[23:58:00] <hazzy-m> you shold add wireless charging like fir a smartphone so you can just drop it in a dock
[23:58:03] <Lcvette> 2 AA's
[23:58:28] <Lcvette> i was actually imagining that scenario and wondering if that was a possibility
[23:58:36] <hazzy-m> should be
[23:59:04] <hazzy-m> replace one of the AAs with a Lion cell, and put the circuitry where the other one was
