[20:17:56] -!- logs has joined #hazzy
[20:17:57] -!- mode/#hazzy [+o logs] by ChanServ
[20:18:25] <hazzy-m> logs: there you are, long time no see
[20:18:50] <Tom_L> ok i'm checkin out for now. you know where to find me
[20:18:53] <hazzy-m> now we have redundancy :D
[20:18:58] -!- Tom_L has parted #hazzy
[20:19:00] <hazzy-m> Tom_L: cu tom!
[20:21:02] <Lcvette> Tom_L: your here!!
[20:21:12] * hazzy-m is tired, been a long week, and still on European sleep time lol
[20:21:28] <Lcvette> No
[20:21:33] <TurBoss> lol
[20:21:33] <Lcvette> Jet lag

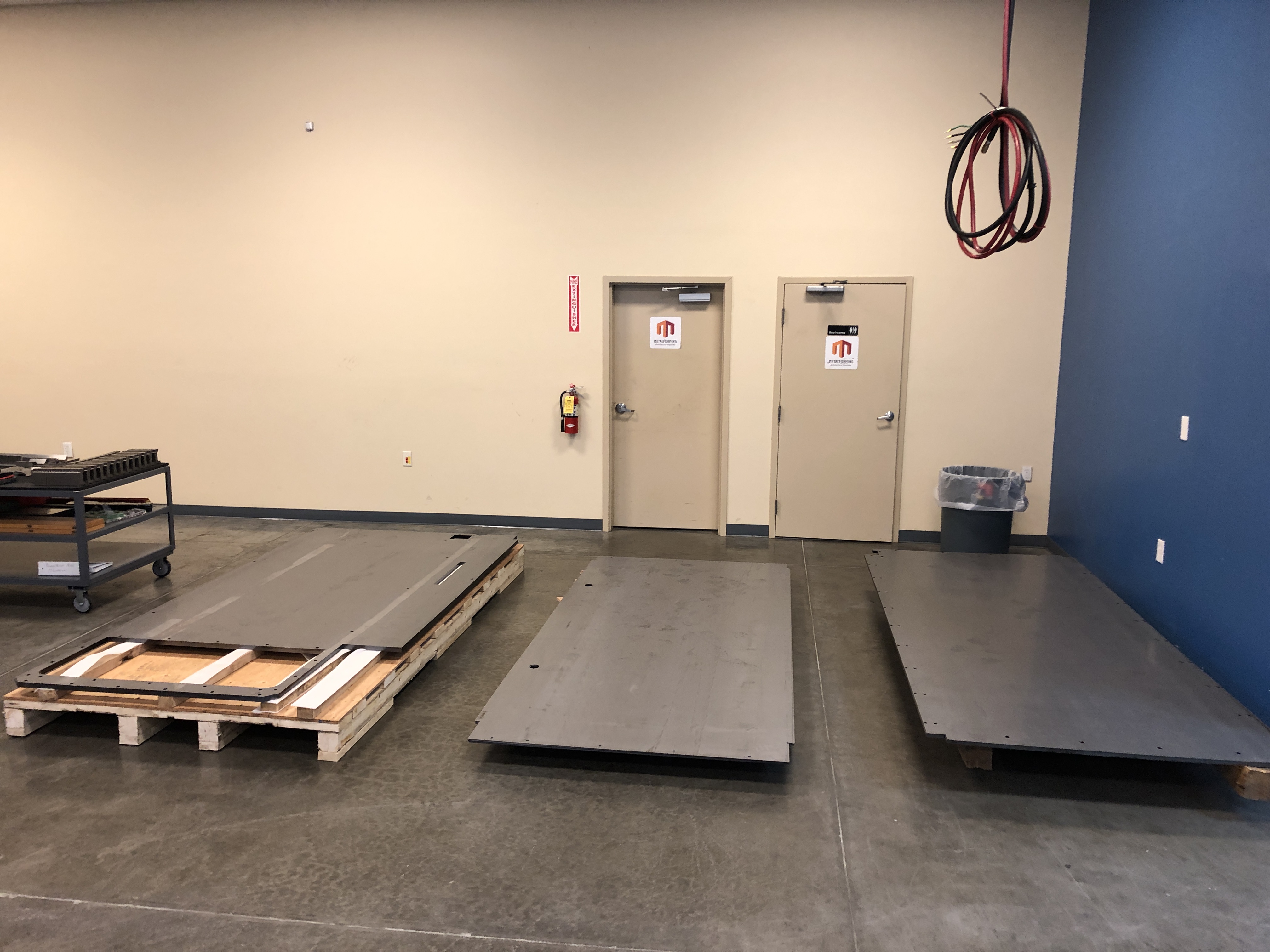

[20:22:20] <hazzy-m> folded about 10000lbs of demo parts for a customer in Canada, each part was about 140" x 60" and 11ga -> 230bls
[20:22:43] <Lcvette> Hazzy, did you wow
[20:22:58] <hazzy-m> and then all the meetings and dinners, which is the most tireing part
[20:23:56] <hazzy-m> two move slightly smaler run offs and I'll be caught up from when I was gone for two weeks
[20:24:11] <Lcvette> Nice
[20:25:09] * hazzy-m posted a file: BDBD193C-29B6-4304-96E3-2BB6FD04DA62.JPG (1773KB) < https://matrix.org >
[20:25:15] <Lcvette> Hazzy is there some magic to get an mpg to move the axis's?
[20:25:23] <hazzy-m> yes
[20:25:34] <hazzy-m> you have to select the axis
[20:25:38] <hazzy-m> sek
[20:25:50] <Lcvette> Tom_l and I have terrible shot this thing for 2 days now and we see all the pins working but not able to make it move the axis's
[20:26:03] <Lcvette> I do on there pendant
[20:26:09] <hazzy-m> hmmm
[20:26:43] <Lcvette> Can see jog-x-enable go true, can see it cycle through the scales
[20:27:00] <Lcvette> Or y or z depending on knob position
[20:27:21] <Lcvette> See the mpg counts perfectly
[20:27:28] <Lcvette> But not sure what's missing
[20:29:30] <hazzy-m> do the joint jog-counts change?
[20:31:34] <Lcvette> Yes
[20:31:49] <hazzy-m> then the axis should move
[20:31:55] <Lcvette> One circle of the wheel counts 100 on the money
[20:32:02] <Lcvette> I know right?
[20:32:05] <hazzy-m> how about the axis jog-counts?
[20:32:16] * Lcvette sent a long message: < https://matrix.org >
[20:32:33] <Lcvette> That's the hall file for it
[20:32:43] <Lcvette> Anything jump out that's missing or wrong?
[20:33:22] <hazzy-m> wild guess
[20:33:53] <hazzy-m> try: `net jogcounts joint.0.jog-counts axis.x.jog-counts`
[20:34:10] <hazzy-m> why do you only jog joints 1 2 and 3?
[20:34:22] <hazzy-m> joint 0 is usualy X
[20:35:27] <Lcvette> Sec, booting machine
[20:36:11] <Lcvette> on machine
[20:36:25] <Lcvette> you mean joints only or the 3 axis?
[20:36:38] <Lcvette> 3 axis because thats all that i have connected at the moment
[20:36:52] <Lcvette> i was reducing as many potential issue s as i could
[20:38:39] <Lcvette> hazzy here like this?
[20:38:41] * Lcvette sent a long message: < https://matrix.org >
[20:43:06] <hazzy-m> try this
[20:44:22] * hazzy-m sent a long message: < https://matrix.org >
[20:44:46] <hazzy-m> joints count up from 0...
[20:45:03] <hazzy-m> so x is j0, y is j1, z is j2 etc,
[20:45:44] * Lcvette sent a long message: < https://matrix.org >
[20:45:54] <Lcvette> like so?
[20:45:56] <hazzy-m> yep
[20:47:33] <Lcvette> nothing
[20:49:12] <Lcvette> hazzy
[20:49:20] <Lcvette> same, no movement
[20:50:17] <TurBoss> @hazzy did the mpg stuff need a component?
[20:50:50] <TurBoss> or is mpg another component from linuxcnc
[20:50:59] <hazzy-m> TurBoss: yes, it is a custom comp
[20:51:19] <hazzy-m> Lcvette: did you install the MPG comp? Seems like its working if you get counts
[20:51:40] <Lcvette> whats that?
[20:51:51] <TurBoss> i was unsure the other day
[20:52:14] <Lcvette> lcvette doesn't know what component is
[20:52:27] <hazzy-m> well you can do it all in HAL, but I found it easier to write a comp LOL
[20:52:28] <hazzy-m> https://github.com
[20:53:05] <hazzy-m> Lcvette: did you follow my toutorial, or use something else?
[20:53:25] <TurBoss> so he must compile andd install it?
[20:53:45] <Lcvette> my wiring is direct, no bits or anything trick like you have since i have tons of pins from two boards available
[20:54:01] <Lcvette> so yours was very confusing
[20:54:20] <hazzy-m> yes, but if he was trying to use it and it was not installed LCNC would throw an error
[20:54:36] <hazzy-m> Lcvette: cool, so you don't need a comp
[20:54:46] <Lcvette> the only thing i have is the hal file and a line in the ini calling the hal file
[20:55:35] <Lcvette> side not, i just installed the update

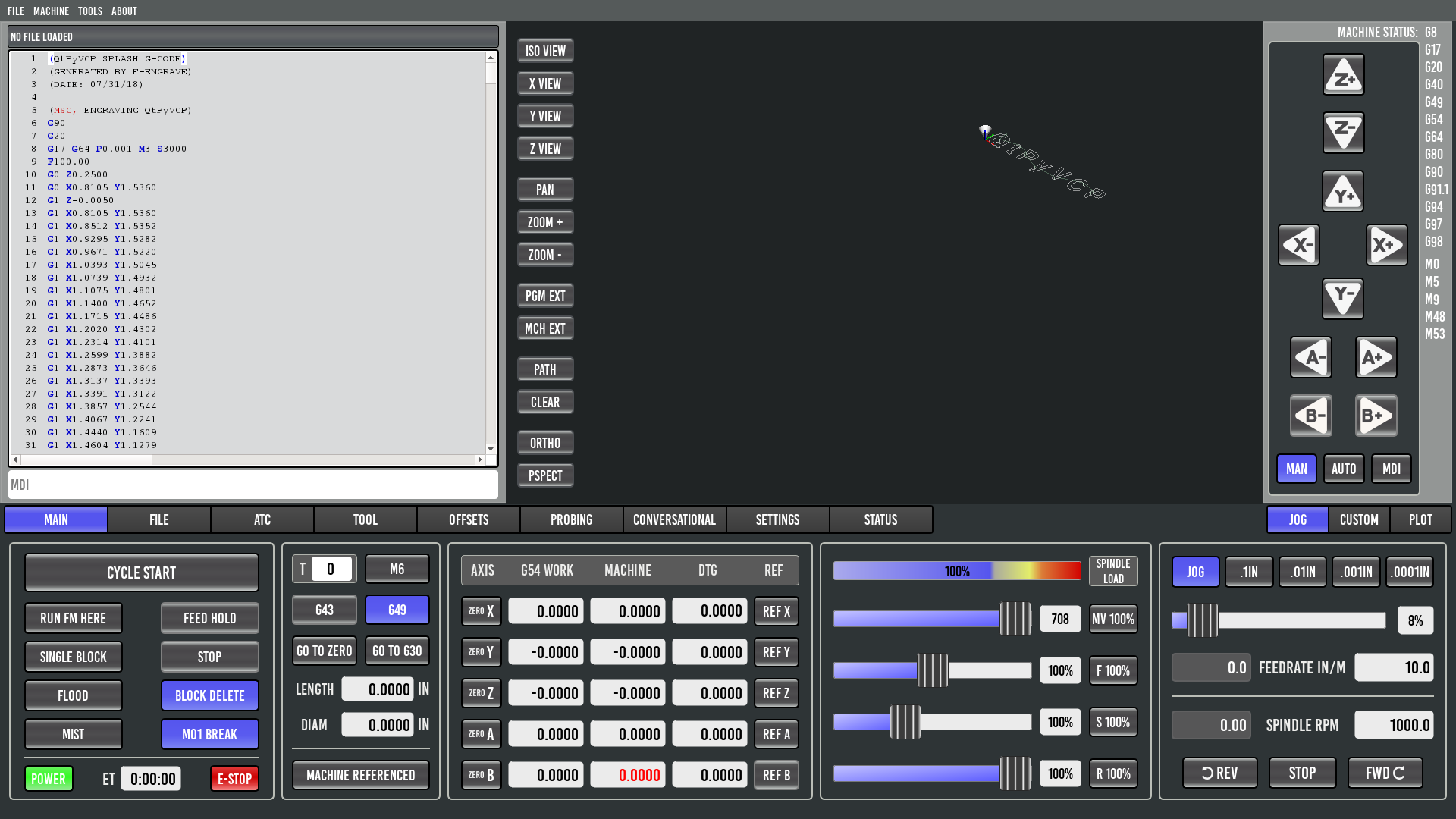

[20:55:42] * Lcvette uploaded an image: Screenshot_2019-09-19_20-53-06.png (287KB) < https://matrix.org >
[20:55:46] <Lcvette> lol
[20:55:49] <hazzy-m> I think your good then
[20:55:54] <hazzy-m> aha!
[20:55:55] <hazzy-m> better
[20:56:03] <TurBoss> we are close...
[20:56:05] <Lcvette> almost
[20:56:05] <TurBoss> hurray!
[20:56:16] <hazzy-m> not you just need to update the QRC file it looks like
[20:56:16] <Lcvette> hurray!
[20:56:19] <Lcvette> missing the graphics file i think
[20:56:36] <Lcvette> i did not do the development install
[20:56:43] <Lcvette> this is the little install
[20:57:10] <Lcvette> think the graphic is from the qml maybe
[20:57:28] <Lcvette> turboss is that the same as you remember?
[20:57:40] <Lcvette> the wheel graphics were all in a qml graphics folder
[20:57:41] <TurBoss> could be!
[20:58:18] <Lcvette> hazzy: so for the pendant i have what i need but i have an error somewhere in the hal
[20:58:23] * TurBoss has a duel
[20:58:53] <hazzy-m> o-
[20:58:58] <Lcvette> -o
[20:59:00] <hazzy-m> good luck
[20:59:09] <hazzy-m> yes, but were
[20:59:26] <hazzy-m> I almost wonder if its a scaling issue
[20:59:35] <hazzy-m> wait
[20:59:38] <Lcvette> scaling?
[21:01:16] <hazzy-m> Lcvette: is ` axis.x.jog-enable` going true?
[21:01:27] <hazzy-m> when you select the x axis?
[21:01:32] <Lcvette> sec while i pull it up
[21:03:39] <Lcvette> no
[21:03:45] <Lcvette> is that it?
[21:03:59] <hazzy-m> yes, absolutly
[21:04:13] <hazzy-m> that must be enabled for the axis to jog
[21:04:22] <Lcvette> how to enable?
[21:04:37] <hazzy-m> that should be enabled by the axis selector switch
[21:09:48] <Lcvette> the pin switches
[21:09:59] <Lcvette> but im not seeing jog enable go true
[21:10:07] <Lcvette> wording in the hal maybe?
[21:10:12] <Lcvette> hazzy
[21:10:14] <Lcvette> ^^^
[21:10:34] <Lcvette> input 20, 21, 22 show being switched
[21:10:42] -!- Tom_L has joined #hazzy
[21:12:02] <hazzy-m> no, that wording should not change

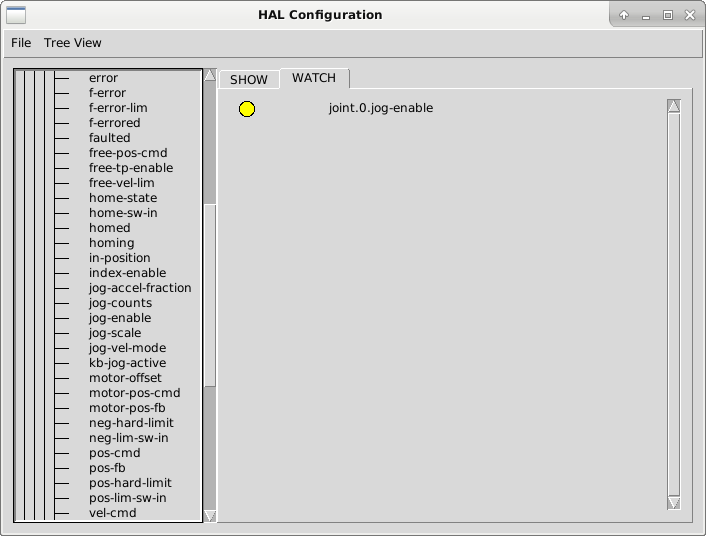

[21:12:44] * Lcvette uploaded an image: Screenshot_2019-09-19_21-12-21.png (44KB) < https://matrix.org >
[21:12:58] <Lcvette> the tyellow light changes to red when i switch axis
[21:13:26] <Tom_L> still playing red light green light?
[21:14:16] <Lcvette> yes
[21:14:16] <Lcvette> lol
[21:14:42] <Tom_L> you're using the qt interface now right?
[21:14:58] <Lcvette> yes

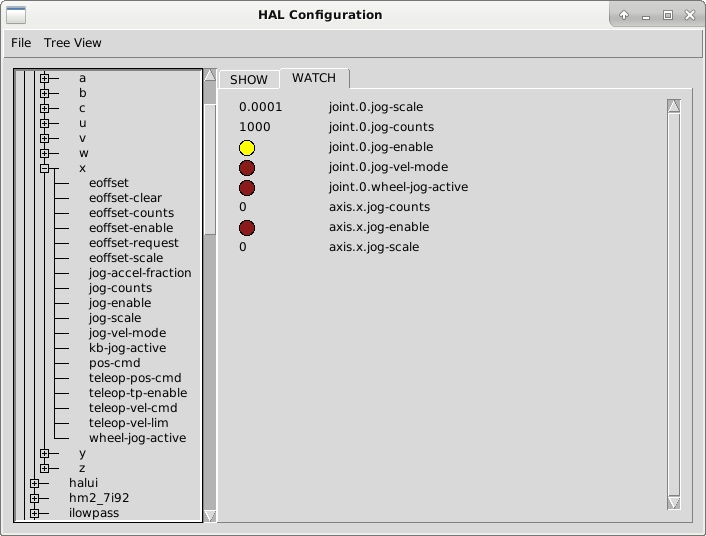

[21:15:29] * Lcvette uploaded an image: Screenshot_2019-09-19_21-15-21.png (43KB) < https://matrix.org >
[21:15:40] <Lcvette> jopint input changes but axis input does not
[21:15:51] <Lcvette> do i need something that called for both to be enablked?
[21:16:05] <Tom_L> and them both to the enable line in the hal
[21:16:06] <Lcvette> hazzy tom_l
[21:16:07] <Lcvette> ?
[21:16:51] -!- Tom_itx has joined #hazzy
[21:17:10] <Tom_itx> net x-jog-select joint.0.jog-enable axis.0.jog-enable <= hm2_7i92.0.7i77.0.0.input-20
[21:17:28] <Tom_L> changing to joint has been a clusterfuck imo
[21:17:58] <Tom_L> change those 3 lines and see if that helps
[21:18:03] <Tom_L> it can't hurt
[21:18:23] * Lcvette sent a long message: < https://matrix.org >
[21:18:45] <Tom_L> and?

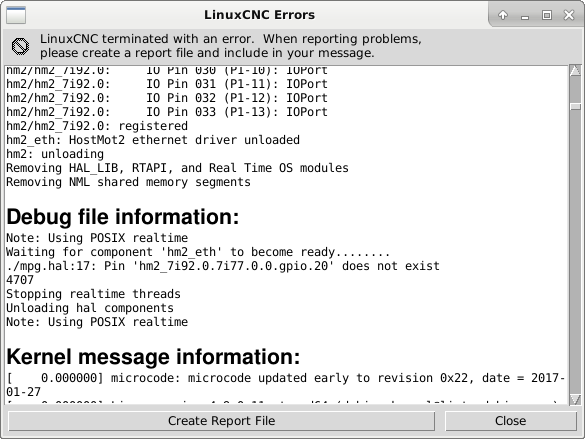

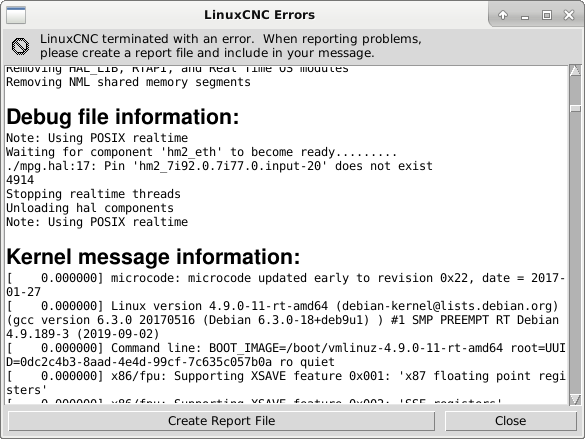

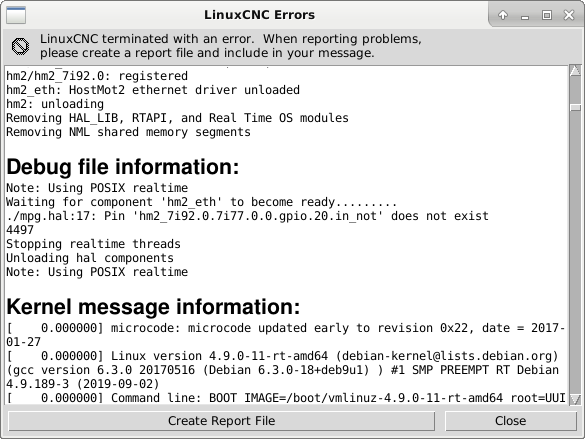

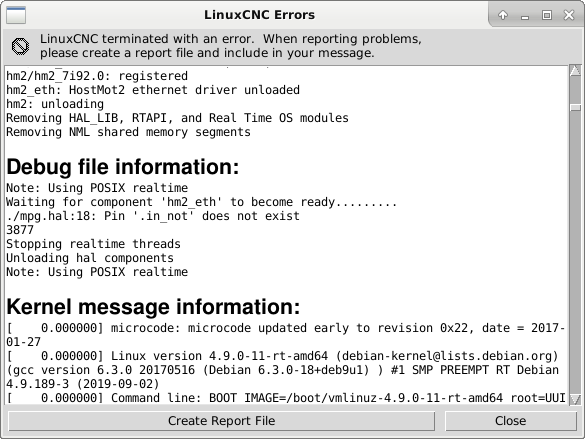

[21:19:17] * Lcvette uploaded an image: Screenshot_2019-09-19_21-19-05.png (67KB) < https://matrix.org >
[21:19:22] <Lcvette> that old chestnut nagain
[21:19:31] <Tom_L> ok remove them
[21:20:27] <Tom_L> why are you running master anyway?
[21:20:59] <Lcvette> hazzy says we have too with qtpyvcp
[21:21:56] * Lcvette uploaded an image: Screenshot_2019-09-19_21-21-39.png (54KB) < https://matrix.org >
[21:22:06] <Lcvette> if it doesn't exist then why is itn showing here?
[21:22:18] <Lcvette> seems like something is messed up somewhere
[21:22:56] <Tom_L> just part of the clusterfuck
[21:23:13] <Lcvette> :(
[21:23:40] <Lcvette> who woiuld be well versed in master?
[21:24:12] <Tom_L> whomever has made the latest changes
[21:26:29] <Lcvette> busted
[21:26:32] <Lcvette> :(
[21:26:58] <Lcvette> feel like its soo close but can't get there
[21:27:03] <Lcvette> disheartening
[21:27:22] <Tom_L> it would be nice if you could test it on 2.7 or 2.8
[21:27:24] <Lcvette> maybe throw it on the forum?

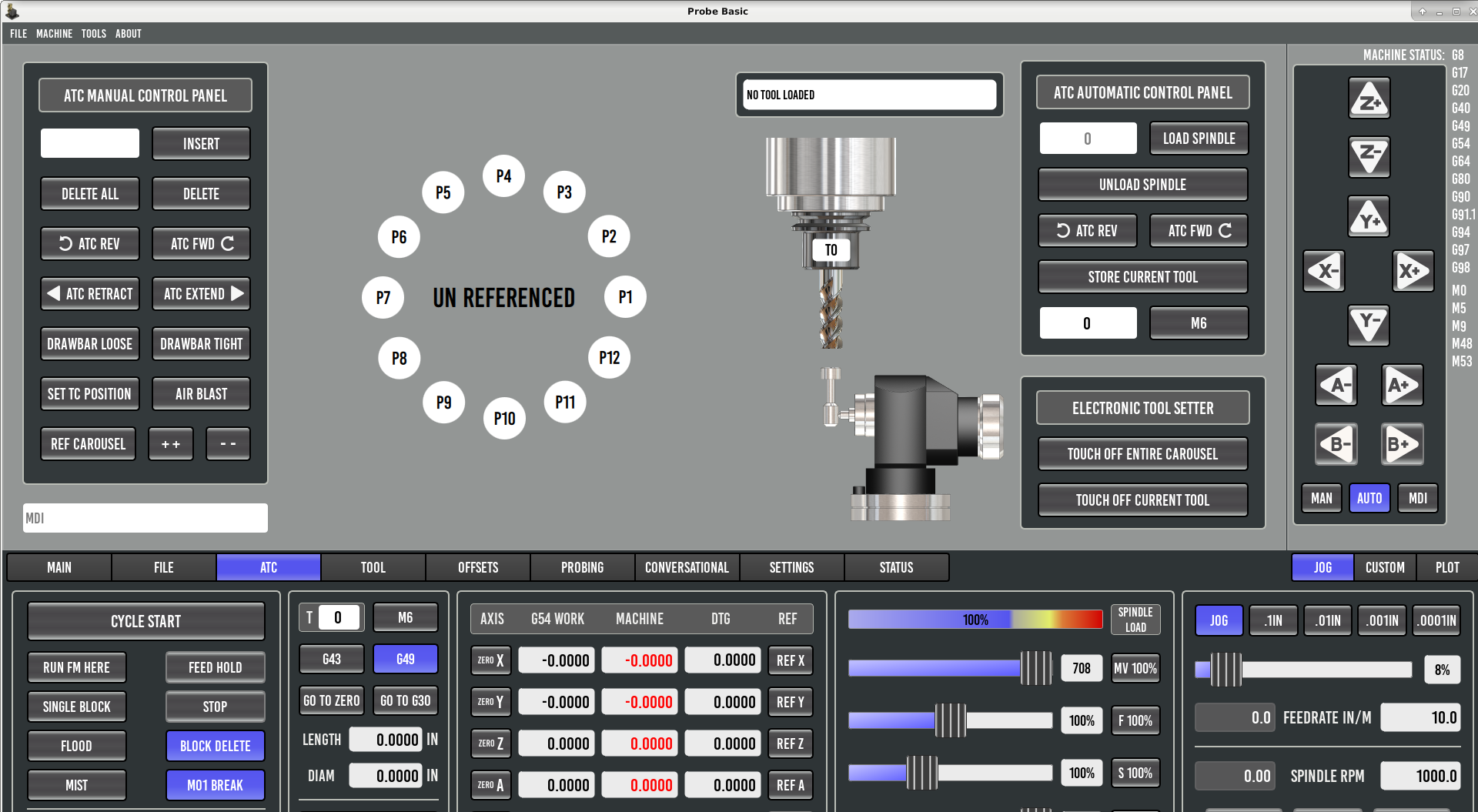

[21:28:59] * Lcvette uploaded an image: Screenshot_2019-09-19_21-28-41.png (198KB) < https://matrix.org >
[21:29:10] <Lcvette> but iots sooo nice
[21:29:12] <Lcvette> lol
[21:29:38] <Tom_L> not if nice doesn't work
[21:30:03] <Lcvette> It's gotta be something simple
[21:30:40] <Tom_L> too many untested variables for me
[21:31:08] <Tom_L> 2.9, mpg.hal, qtpyvcp
[21:31:18] <Lcvette> 2.8 has joints too though
[21:31:28] <Tom_L> but it still allows axis use
[21:31:42] <Lcvette> Qtpyvcp is just an gui
[21:31:47] <Tom_L> i ran it on my mill with my 2.7 config
[21:32:10] <Lcvette> What?
[21:32:16] <Lcvette> Qtpyvcp?
[21:32:19] <Tom_L> i don't know that joint has been fully tested and proven to work
[21:32:29] <Tom_L> axis.0 on 2.8
[21:32:38] <Tom_L> instead of joint.0
[21:33:10] <Tom_L> there could be lingering code that may address axis and not joint for all i know
[21:33:18] <Lcvette> Maybe that the issue?
[21:33:37] <Tom_L> i'm saying there are too many variables to diagnose at once
[21:33:37] <Lcvette> Can I go back to 2.8?
[21:33:43] <Tom_L> can you?
[21:33:50] <Tom_L> you have my blessing
[21:34:04] <Lcvette> Without a whole reinstall I mean?
[21:34:06] <Tom_L> did you keep your old config that was converted?
[21:34:41] <Lcvette> No, I skipped from 2.7 to 2.9
[21:34:53] <Tom_L> 2.7 should work fine
[21:34:58] <Tom_L> i'm using it on 2.8
[21:35:14] <Tom_L> go back to 2.7 if you want
[21:35:30] <Tom_L> or leave it like it is and try to fix it
[21:35:33] <Tom_L> up to you
[21:36:03] <Lcvette> Qtpyvcp must run 2.8 the docs say
[21:36:35] <Tom_L> that's why i installed it on my test pc
[21:36:42] <Tom_L> so i could play with it
[21:36:52] <hazzy-m> yes, but this is not a 2.7 vs. 2.8 issue
[21:37:04] <hazzy-m> QtPyVCP will work with both 2.8 or 2.9
[21:37:06] <Tom_L> no but it could be a joint vs axis issue
[21:37:15] <hazzy-m> Lcvette: is the machine homed?
[21:37:19] <Lcvette> yes
[21:37:33] <hazzy-m> all homed?
[21:37:36] <Lcvette> and jogs fine with screen buttons
[21:37:39] <Lcvette> yes
[21:37:41] <hazzy-m> you can run a MDI command?
[21:37:46] <Lcvette> yes
[21:37:49] <hazzy-m> ok
[21:37:54] -!- Tom_itx has quit [Quit: Leaving]
[21:38:21] <hazzy-m> need something like teamviewer lol
[21:38:33] <Lcvette> did you see that the watch changed
[21:38:45] <Lcvette> yellow to red for joint.0.jog-enable
[21:38:59] <Lcvette> but stayed in the false state
[21:39:09] <Tom_L> i feel fairly confident the thing is wired right and signals are getting to linuxcnc
[21:39:30] <hazzy-m> I agree
[21:40:23] <Tom_L> oh
[21:40:31] <Tom_L> be sure to take it out of Estop :D
[21:40:42] <Lcvette> won't home in estop
[21:40:45] <Lcvette> lol
[21:40:55] <Lcvette> i home before every test
[21:40:57] <Lcvette> change etc
[21:41:30] <Tom_L> check your way lube. you're gonna run out testing
[21:41:42] <Lcvette> its empty
[21:41:51] <Lcvette> beep beep beep beep beep beep beep

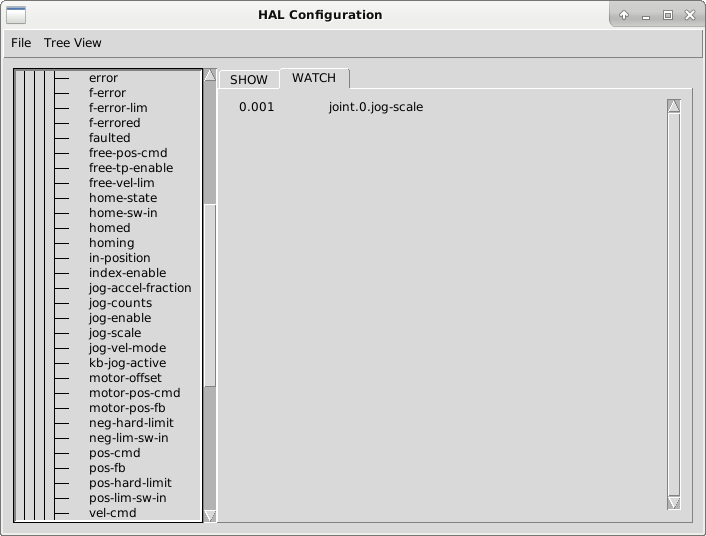

[21:42:03] <hazzy-m> what do you have jog-scale set to for each axis?
[21:42:17] <Lcvette> default is .0001
[21:42:24] <Lcvette> X10 is .001
[21:42:32] <Lcvette> x100 is .01
[21:42:37] <Tom_L> does that change in watch?
[21:42:42] <Lcvette> yes
[21:42:51] <Lcvette> we tested that last night
[21:43:03] <Tom_L> at the joint or at jogscale variable?
[21:43:14] <Lcvette> it showed it changing between the scales with the selector switch
[21:43:18] <hazzy-m> sure? shows as 0 on my offline sim
[21:43:29] <hazzy-m> for each axis?
[21:44:17] <Lcvette> sec ill show
[21:44:34] <hazzy-m> thx

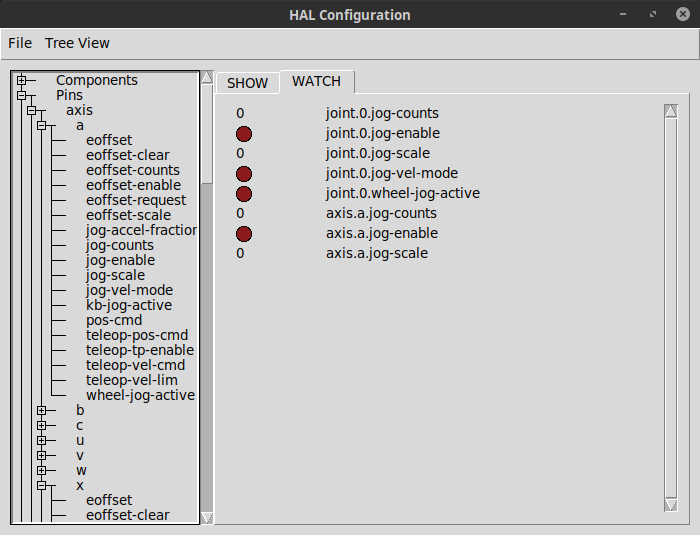

[21:46:04] * hazzy-m uploaded an image: image.png (48KB) < https://matrix.org >
[21:47:13] * Lcvette uploaded an image: Screenshot_2019-09-19_21-46-53.png (45KB) < https://matrix.org >
[21:47:20] * Lcvette uploaded an image: Screenshot_2019-09-19_21-46-35.png (45KB) < https://matrix.org >
[21:47:32] * Lcvette uploaded an image: Screenshot_2019-09-19_21-46-18.png (45KB) < https://matrix.org >
[21:47:50] <hazzy-m> ok
[21:48:02] <Lcvette> thats all 3 selector positionsd
[21:48:06] <Lcvette> good?
[21:48:25] <hazzy-m> well, are you certain sure it is not actualy moving?
[21:48:38] <Tom_L> yeah but they might be a decimal off but i wouldn't change that until it's working
[21:49:00] <Tom_L> put a dial indicator on an axis and watch it
[21:49:19] <hazzy-m> what do all three have the same value? sould not it be .01, .001 and .0001 or something similar?
[21:49:31] <hazzy-m> why*
[21:49:41] <Tom_L> the axis?
[21:50:12] <Tom_L> the scale goes to all the axis at once
[21:50:22] <Tom_L> the other selector selects which axis is active
[21:50:34] <hazzy-m> ah, I thought he meant scale switch positions
[21:50:55] <Tom_L> no scale is movement per mpg tick
[21:51:02] * Lcvette uploaded an image: Screenshot_2019-09-19_21-50-35.png (49KB) < https://matrix.org >
[21:51:35] <Tom_L> so why is enable not enabled?
[21:51:48] <Lcvette> joint.0.jog-counts shows movement
[21:52:16] <Lcvette> joint.0.jog-enable changes with the axis selector switch
[21:52:20] <hazzy-m> the only way that can show counts but not cause motion is if the axis is not enabled
[21:52:28] <Tom_L> ok hold on a sec
[21:52:34] <Lcvette> but axis.x.jog-enable does not
[21:52:45] <hazzy-m> axis.x.jog-enable also has to be TRUE
[21:52:53] <Lcvette> but anytime we try and put axis.anything on the hal it errors on load
[21:52:58] <hazzy-m> that is your problem
[21:53:35] <Lcvette> it says axis.x.jog-enable does not exist
[21:54:13] <hazzy-m> ah, sounds like a loading order problem
[21:54:36] <Lcvette> dunno what a loading order probnlem is
[21:54:52] <Tom_L> Lcvette remember when i told you to put stuff at the top of the hal?
[21:54:56] <hazzy-m> can you upload your main hal file?
[21:55:09] <Tom_L> loadrt
[21:55:10] <Tom_L> etc
[21:55:14] <Lcvette> sec
[21:55:37] * Lcvette sent a long message: < https://matrix.org >
[21:55:42] <Lcvette> main hal
[21:56:05] <Lcvette> ^^^
[21:56:15] <Tom_L> i have one more thing to try
[21:56:56] <Lcvette> k
[21:57:54] <hazzy-m> looks aok from a quick glance
[21:57:56] * hazzy-m needs to sleep
[21:58:10] <Tom_L> i'm looking for the syntax
[21:58:14] <Lcvette> k
[21:58:34] <Tom_L> reverse the logic on the enable pin on 7i77
[21:58:38] <Tom_L> make it not
[21:59:03] <Tom_L> http://linuxcnc.org
[21:59:59] <Tom_L> i lost your mpg.hal file...
[22:00:20] * Lcvette sent a long message: < https://matrix.org >
[22:00:28] <Lcvette> mpg.hal
[22:00:30] <Lcvette> ^^^
[22:01:07] <Lcvette> Tom_L: ^^^
[22:01:20] <Lcvette> i don't see how to reverse the 7i77 pin
[22:02:34] <Tom_L> net x-jog-select joint.0.jog-enable <= hm2_7i92.0.7i77.0.0.input-20 in_not
[22:02:48] <Tom_L> net x-jog-select joint.0.jog-enable <= hm2_7i92.0.7i77.0.0.input-20 .in_not
[22:02:54] <Tom_L> might need the '.'
[22:05:00] <Tom_L> http://linuxcnc.org
[22:05:02] <Tom_L> 12.1
[22:05:32] <Lcvette> in_not does not exist same with the .in_not
[22:05:48] <Tom_L> some other syntax on that board then
[22:05:56] <Tom_L> pretty sure you can do it
[22:06:07] * Lcvette uploaded an image: Screenshot_2019-09-19_22-05-57.png (64KB) < https://matrix.org >
[22:06:11] <TurBoss> that file may be ignored by the updater
[22:06:26] <TurBoss> the axis vs joints
[22:06:55] <Tom_L> yeah, he changed them to joint in it i think
[22:06:57] <TurBoss> there is a space before the fot
[22:07:00] <TurBoss> * there is a space before the dot
[22:07:19] <Lcvette> yes i had the space before dot
[22:07:20] <Lcvette> 20 .in_not
[22:07:42] <Lcvette> we changed everything that said axis to joint or it wouldnt load
[22:07:56] -!- Tom_itx has joined #hazzy
[22:07:58] <Lcvette> would give error saying that axis.x.whatever did not exist
[22:08:02] <Tom_itx> net button-tool-change hal_manualtoolchange.change_button <= hm2_[HOSTMOT2](BOARD).0.gpio.038.in_not
[22:08:08] <Tom_L> i'm using that on a pin
[22:08:15] <Tom_L> remove the space
[22:08:22] <Lcvette> ok
[22:08:51] <Tom_L> been too long for me to remember it all
[22:09:06] <Lcvette> does not exist same error
[22:09:15] <Tom_L> i call bull shit
[22:09:37] <Tom_L> ask pcw the syntax for that on the 7i77 board
[22:09:41] <Tom_L> tomorrow
[22:09:44] <Tom_L> or when he's awake
[22:09:51] <Tom_L> then test it
[22:09:57] * Lcvette uploaded an image: Screenshot_2019-09-19_22-09-50.png (66KB) < https://matrix.org >
[22:10:03] <Lcvette> for realz ^^^
[22:10:44] <Lcvette> 2.9 why have you foresaken me
[22:10:45] <Lcvette> lol
[22:10:54] <TurBoss> lol
[22:11:28] <Tom_L> you use .invert_output if it's an output pin that needs it
[22:11:54] <Tom_L> and in_not - (Bit, Out) Inverted state of the hardware input pin. Both full GPIO pins and I/O pins used as inputs by active module instances have this pin.
[22:11:58] <Lcvette> i should try that?
[22:12:02] <Tom_L> no
[22:12:03] <Lcvette> thought these were inputs
[22:12:07] <Tom_L> it's not an output
[22:12:08] <Lcvette> lol
[22:12:12] <Tom_L> i'm just teaching you
[22:12:16] <Lcvette> im working on 3 hours of sleep
[22:12:33] <Tom_L> i'll sleep when i'm dead
[22:12:39] <Lcvette> lol.. i am susceptible to influendce
[22:12:47] <Lcvette> influence too
[22:13:00] <Lcvette> turboss why you break the pendant?
[22:13:08] <TurBoss> booooo
[22:13:12] <Lcvette> lol
[22:13:31] <Lcvette> ok ok you didnt break it
[22:13:36] <TurBoss> cool
[22:14:06] <Lcvette> did you look and see if the wheel for the atc is in a special file that needs to be updated?
[22:15:00] <TurBoss> the images?
[22:15:11] <Lcvette> for the atc wheel
[22:15:18] <Lcvette> i think they are in a sopecial qml file
[22:15:27] <Lcvette> not in the main images folder
[22:15:36] <Lcvette> it was in the qml directory
[22:15:40] <Lcvette> if memory serves
[22:15:50] <Tom_L> i left a note for pcw
[22:17:39] <Lcvette> <Lcvette "if memory serves"> Tom_L: thank you
[22:20:43] <Tom_L> ok let's try one more thing
[22:20:46] <Tom_L> you game?
[22:20:56] <Lcvette> Yeah
[22:21:27] <Lcvette> Let her rip sensei
[22:21:54] <Tom_L> net x-jog-select joint.0.jog-enable <= hm2_7i92.0.7i77.0.0.gpio.20.in_not
[22:22:45] <Tom_L> do those pins (20 21 22) have any special function assigned to them?
[22:23:58] <Lcvette> only whats in the mpg.hal
[22:24:28] <Tom_L> give that a try on the 3 lines (comment out the old ones and keep em)
[22:25:02] * Lcvette uploaded an image: Screenshot_2019-09-19_22-24-51.png (65KB) < https://matrix.org >
[22:25:35] <Tom_L> ok remove the .in_not and try it
[22:25:40] <Tom_L> i wanna see if that syntax is valid
[22:26:45] * Lcvette uploaded an image: Screenshot_2019-09-19_22-26-35.png (60KB) < https://matrix.org >
[22:26:46] <Tom_L> seems to me you may have one too many .0's in those lines
[22:27:16] <Tom_L> ok so it likes your other syntax
[22:27:22] <Tom_L> revert back to that
[22:27:34] <Lcvette> k
[22:27:50] <Tom_L> net x-jog-select joint.0.jog-enable <= hm2_7i92.0.7i77.0.input-20
[22:27:57] <Tom_L> try that just on one line
[22:28:10] <Tom_L> i wanna see if there's too many '0's in the line
[22:28:18] <Tom_L> probably not
[22:28:56] * Lcvette uploaded an image: Screenshot_2019-09-19_22-28-45.png (67KB) < https://matrix.org >
[22:29:06] <Lcvette> error again
[22:29:14] <Tom_L> ok put the .0 back
[22:29:25] <Lcvette> k
[22:29:27] <Tom_L> just trying to eliminate everything
[22:29:33] <Lcvette> sure
[22:29:35] <Lcvette> im with ya
[22:29:40] <Tom_L> wait for pcw's reply
[22:29:41] <Lcvette> this is mind scrambling
[22:29:46] <Lcvette> ok
[22:29:47] <Tom_L> on inverting the logic on the pin
[22:29:53] <Tom_L> no
[22:30:29] <Tom_L> it's methodological
[22:30:50] <Lcvette> i dunno if this hal is even whats needed, i pulled it from the forums in a search
[22:31:06] <Tom_L> the pins are working
[22:31:27] <Tom_L> the enable is not changing state
[22:31:29] <Tom_L> right?
[22:31:47] <Lcvette> it dopes for joint
[22:31:53] <Lcvette> not for axis
[22:32:01] <Lcvette> well wait when you say state you mean true or false?
[22:32:06] <Tom_L> yes
[22:32:11] <Lcvette> it does not change true or false
[22:32:26] <Lcvette> but the other window with the red and yellow led does change
[22:33:11] <Lcvette> am i explaining that clearly?
[22:33:15] <Lcvette> tom_l?
[22:33:21] <Tom_L> i got it
[22:33:26] <Lcvette> k
[22:33:39] <Lcvette> and nothing with the word axis in it changes
[22:33:48] <Lcvette> not counts, enable etc
[22:33:52] <Lcvette> only joints
[22:34:23] -!- Tom_itx has quit [Quit: Leaving]
[23:29:04] <Lcvette> That sucks
