[02:54:36] <Joco[m]> Bit of a technical question on mesa MPG. Does the MPG just read the single rising edge of the AB input? Have noticed the 5mu glass scales are giving a 0.02mm resolution So it is looking very much like only part of the AB TTL signals are being read. Still super useful for what I am doing as a test. But just wanted to check if I was missing a trick.
[02:55:03] <Joco[m]> * Bit of a technical question on mesa MPG. Does the MPG just read the single rising edge of the AB input? Have noticed the 5mu glass scales are giving a 0.02mm resolution So it is looking very much like only part of the AB TTL signals are being read. Still super useful for what I am doing as a test. But just wanted to check if I was missing a trick. I think once I get to a proper h/w encoder this will go away.
[02:57:59] <TurBoss> my encoders sends 4 pulses per step
[02:58:09] <TurBoss> sek I'll check config
[02:58:44] <Joco[m]> TurBoss: but those will be h/w encoders? I am using (temporarily) the mode2 MPG encoders on the 7i76
[02:59:02] <TurBoss> yup same
[02:59:07] <TurBoss> 7i76 mode 2
[02:59:12] <TurBoss> brb shop
[02:59:18] <Joco[m]> Rgr
[02:59:21] <Joco[m]> Cheers
[03:02:36] <TurBoss> i just use enc0.count pin
[03:03:20] <Joco[m]> Am watching the count pin and its only ticking over on 0.02mm increments
[03:04:40] <Joco[m]> And I know that a signal is going to both A & B legs as it knows when I change direction.
[03:05:26] <TurBoss> what kind of encoder wiring a+b+a-b- or just ab
[03:05:53] <Joco[m]> Given is mode 2 there is inly AB. The wiring on the glass scale is also just AB
[03:06:19] <Joco[m]> * Given is mode 2 there is only AB. The wiring on the glass scale is also just AB
[03:06:37] <Joco[m]> * Given is mode 2 there is only A+ B+. The wiring on the glass scale is also just AB
[03:07:13] <TurBoss> sorry duno
[03:07:20] <Joco[m]> That’s ok
[03:08:32] <Joco[m]> I would say its not registering the drop in the TTL. I.e. to get the right res I think it should be registering the rising and falling edges of the TTL
[03:08:50] <TurBoss> use halscope
[03:08:54] <Joco[m]> Which would be your 4 pulses
[03:09:25] <TurBoss> hmmmm not sure if posible to attach to ab
[03:09:59] <Joco[m]> Yeah - the encoder is fronting things
[03:10:19] <Joco[m]> AB not visible I think. But will have a good snoop
[03:10:45] <Joco[m]> It’s not the end of the world as I will be getting a proper encoder add on card for this.
[03:11:31] <TurBoss> not visible
[03:11:51] <Joco[m]> AB not visible? As I suspected
[03:11:57] <TurBoss> yes
[03:12:28] <Joco[m]> All good. Thanks for checking
[03:12:42] * TurBoss has to engrave a little plate
[03:12:48] <TurBoss> but begin lazzy
[03:12:55] <Joco[m]> Lol
[03:13:07] <Joco[m]> I’m about to go watch TV

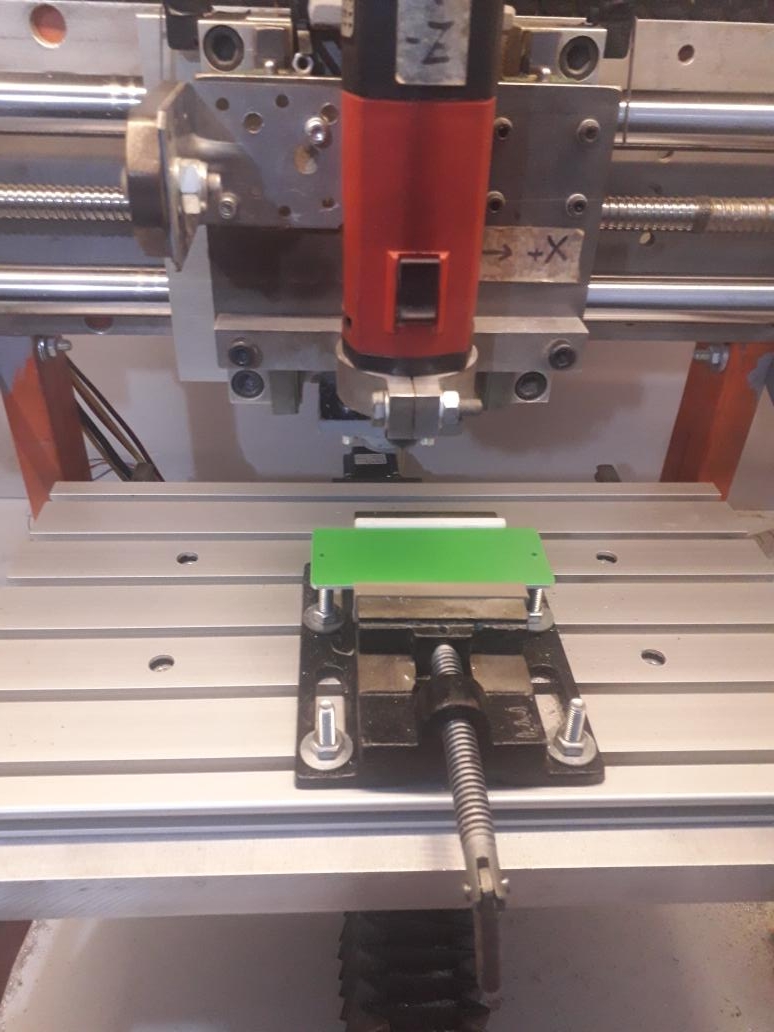

[03:13:12] * TurBoss uploaded an image: VectorImage_2020-07-14_091306.jpg (323KB) < https://matrix.org >
[03:13:13] <Joco[m]> So being very lazy
[03:13:59] <Joco[m]> Like the X+ and Z- on the tape. :-)
[03:14:19] <TurBoss> yup no posible fail lol
[03:33:34] -!- c-log has quit [Ping timeout: 240 seconds]
[03:40:31] <Joco[m]> TurBoss: just had a thought - is it possible I have the AB legs connected to the mesa the wrong way around?
[03:40:35] <Joco[m]> would that matter?
[03:41:11] <TurBoss> how?
[03:41:19] <TurBoss> ab ba?
[03:41:23] <Joco[m]> yeah
[03:41:36] <TurBoss> no idea xD
[03:41:50] <Joco[m]> might swap wires in a bit and see
[03:42:50] <Joco[m]> getting near the end of the LOTR II movie
[03:42:56] <TurBoss> lol
[03:43:07] -!- c-log has joined #hazzy
[05:41:39] <JT-Cave> morning
[06:03:37] -!- sandra[m] has quit [Ping timeout: 260 seconds]
[06:04:25] -!- sandra[m] has joined #hazzy
[06:23:27] -!- Stran_ge[m] has quit [Ping timeout: 260 seconds]
[06:23:28] -!- wolfgang[m] has quit [Ping timeout: 260 seconds]
[06:23:43] -!- Stran_ge[m] has joined #hazzy
[06:25:01] -!- wolfgang[m] has joined #hazzy
[10:29:49] <hazzy-m> Morning

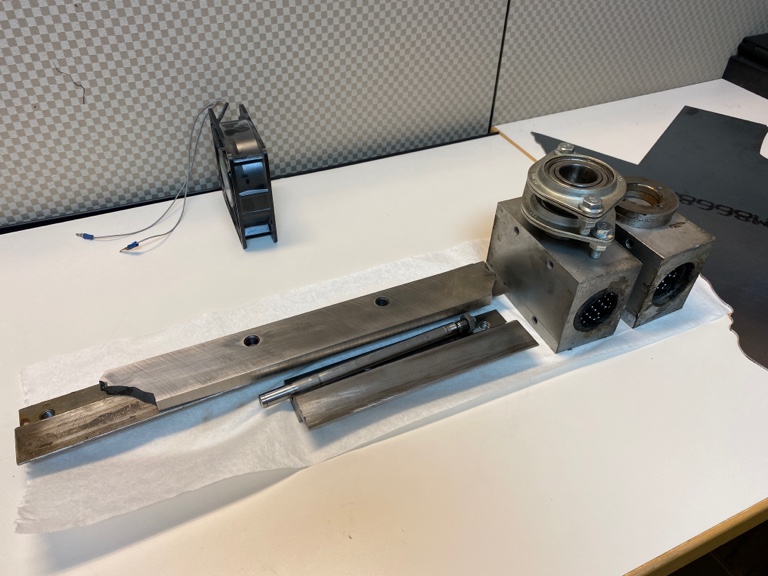

[10:30:08] * hazzy-m uploaded an image: ima_fd44043.jpeg (138KB) < https://matrix.org >
[10:30:55] <hazzy-m> People keep giving me junk lol
[11:16:57] -!- hr_ram has joined #hazzy
[11:20:04] <hr_ram> Hi, guys can anyone point me in the right direction to turn off the machine table size display in the probe basic plot. I'm having trouble viewing the actual tool movement when zoomed in on the plot. Graduated scale just covers the whole thing.
[11:51:32] <hr_ram> I'm new to linux any help is really appreciated.
[12:00:27] -!- hr_ram has quit [Remote host closed the connection]
[12:01:32] -!- hr_ram has joined #hazzy
[12:03:28] -!- hr_ram has quit [Remote host closed the connection]
[12:09:14] <JT-Cave> you can turn them on/off in the ini file
[12:10:33] <JT-Cave> damn he didn't stay 2 minutes lol
[13:12:03] <TurBoss> I think that the plot needs better defaults
[13:45:35] <JT-Shop> I agree
[15:44:23] <Joco[m]> hazzy: I could do with junk. I end up having to buy all my steel and parts.
[16:27:37] -!- c-log has quit [Ping timeout: 246 seconds]
[16:29:55] -!- c-log has joined #hazzy
[16:35:16] <hazzy-m> Joco: if shipping weren't so experience you could have all the 1000mm x 500mm x 140mm NEMA enclosures you wanted
[16:35:26] * hazzy-m uploaded an image: ima_51ed662.jpeg (179KB) < https://matrix.org >
[16:59:17] <Joco[m]> Oh dear. That’s not fair.
[17:01:36] <Joco[m]> I’m about to get a sheet of 2mm aluminium and fab a custom control box to go on the side of the mill stand. Will be welded. Don’t have a brake.
[17:07:09] <hands[m]> oh nice.. I could use a few ;-)...
[17:07:16] <hands[m]> (jk)
[17:19:55] * Joco[m] cry’s in his coffee.
[17:20:13] <Joco[m]> Sometimes being at the butt end of the world is a real pain
[17:27:15] <roguish[m]> hazzy: how much to CA
[19:22:35] <hazzy-m> roguish: I can check, could probably fit 8 on a pallet
[19:24:25] <hazzy-m> Or since FABTECH is in Vegas this year, drive a truck down and you can have the lot of NEMA boxes and the other small enclosures will be running
[19:24:37] <hazzy-m> I hate to just throw them away
[19:26:32] <TurBoss> hello
[19:43:11] <hazzy-m> TurBoss: hey

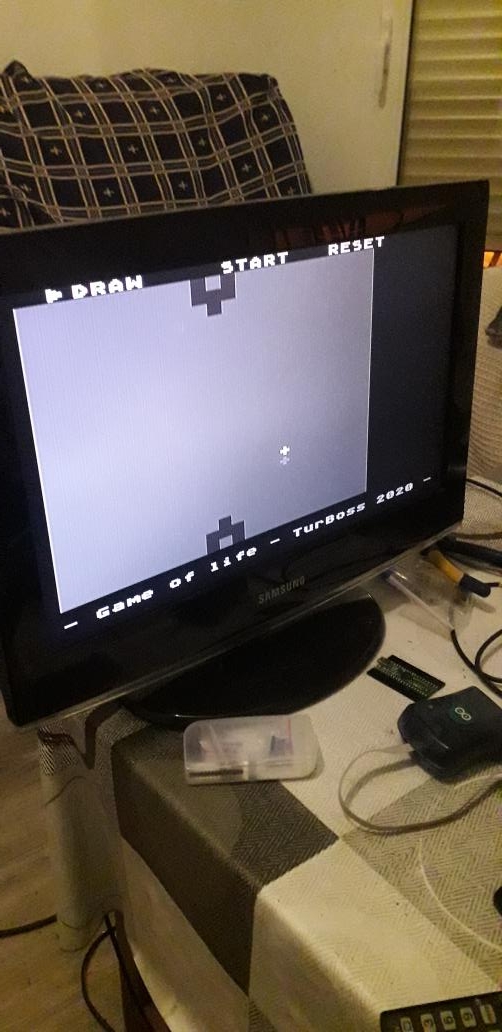

[20:47:15] * TurBoss uploaded an image: 20200715_024650.jpg (255KB) < https://matrix.org >
[21:56:49] <Joco[m]> That looks very old school
[22:15:10] <TurBoss> a sega mega drive
[22:15:12] -!- hr_ram has joined #hazzy
[22:15:17] <TurBoss> or sega genesys
[22:15:41] <TurBoss> just created a branch with new 3dPlotter defaults
[22:15:50] <TurBoss> without labesl and ticks
[22:16:00] <TurBoss> * without labels and ticks
[22:17:15] <TurBoss> from this

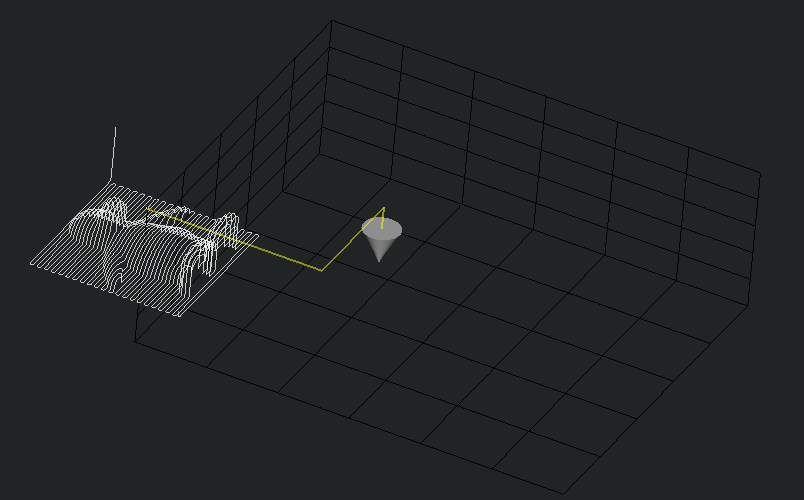

[22:17:21] * TurBoss uploaded an image: image.png (323KB) < https://matrix.org >

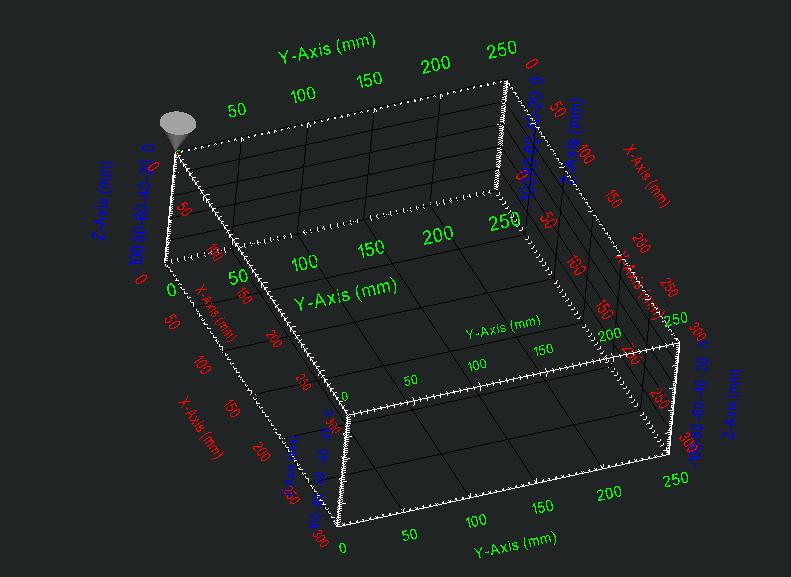

[22:18:46] * TurBoss uploaded an image: Captura de pantalla de 2020-07-15 04-18-24.png (21KB) < https://matrix.org >
